Summary of Contents for RedBack Lasers 3L360 Series
-

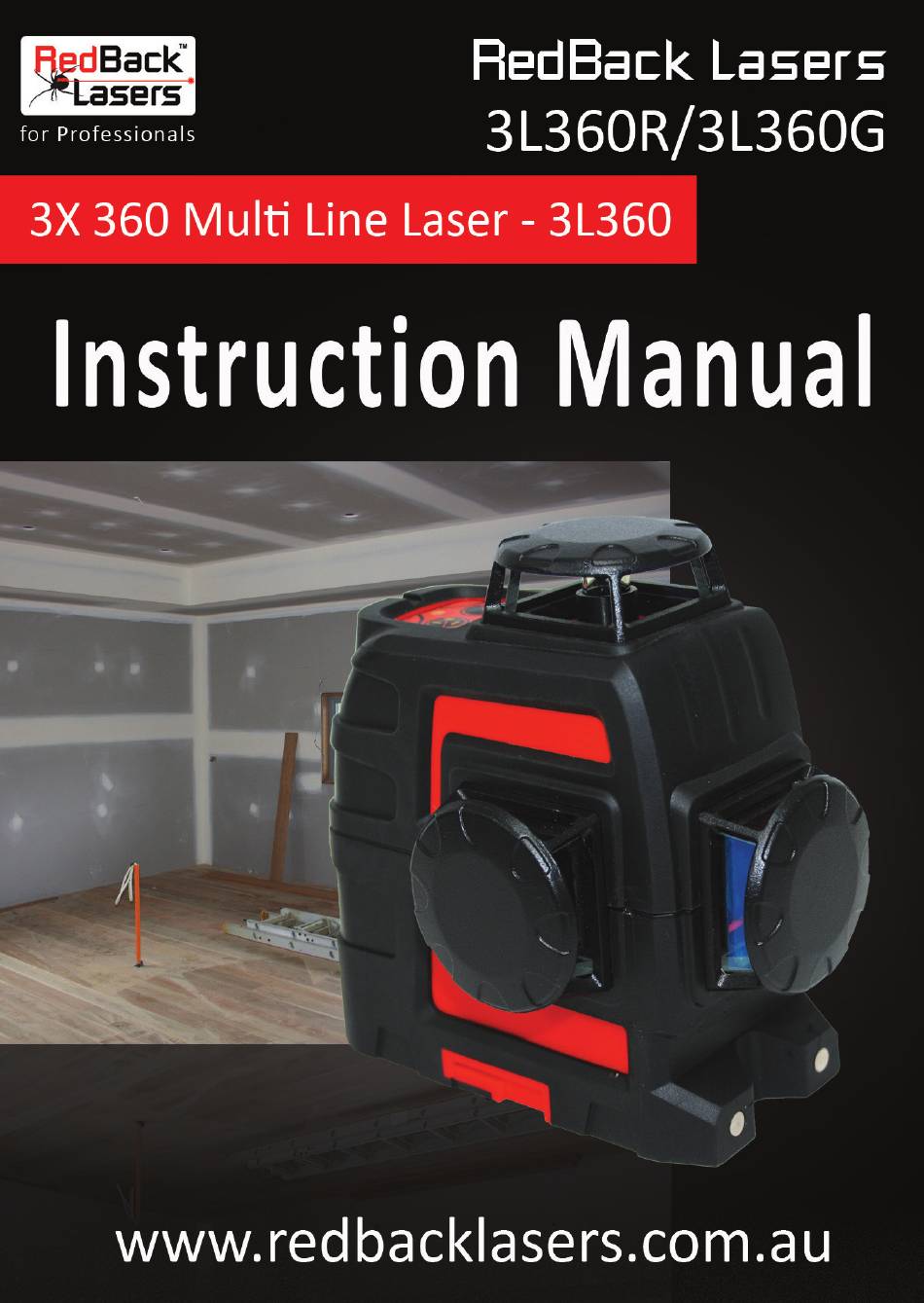

Page 2: Operating Instructions
• Do not disassemble the instrument or attempt to perform any internal servicing. Repairs and service should be performed only authorised service centres of Redback Lasers. • This instrument complies with the safety Classification standards of laser radiation. 3L360R CAUTION: Class 3r laser <5mW at 635nm. - Page 3 3L360 INTRODUCTION Congratulations on purchasing one of the RedBack 3L360™ Auto Levelling 3x 360 line laser models. These instructions cover both the 3L360R (red beam) and 3L360G (green beam) models. Please note that some of the features described in this manual may be specific to just one of these models and will be indicated as so.
- Page 4 3L360 DIAGRAMS 3L360R & 3L360G Laser Units 1. Laser Output Windows 2. Control Keypad 3. Pendulum Locking Knob 4. Battery Compartment 5. Tripod/Mounting Threads 5/8”, 1/4”...
- Page 5 Keypad 3L360R (red beam) Manual Mode LED Pulse Mode LED Laser Line Function Pulse Mode & Button Manual Mode Function Button Power LED 3L360G (green beam) Power LED Manual Mode LED Laser Line Function Button Manual Mode Function Button www.redbacklasers.com.au...
- Page 6 3L260 DIAGRAMS Mounting Bracket 5/8” Thread Magnetic Mount Locking Knob 3L360 to Bracket Lock for Elevating Laser Level Platform Tripod Mounts 5/8” Thread & 1/4” Thread...
- Page 7 3L360 OPERATING INSTRUCTIONS Battery Instructions The 3L360’s have two battery options either 4 x standard “AA” size Alkaline or the Li-ion rechargeable pack. For standard 4 x “AA” alkaline operation simply insert “AA” batteries into standard battery holder in the direction indicated and slide the holder into battery recess and close the battery compartment cover.
- Page 8 3L360 OPERATING INSTRUCTIONS cont. Turning On the 3L360 To power up, simply unlock the pendulum by moving it to the “ON” position, this will automatically self level the laser and power up the horizontal beam. If when you unlock the pendulum all laser flash and a beeping sound is emitted then the laser is out of self levelling range, place the laser on a more level surface for the device to self level and power up.
-
Page 9: Manual Mode
Manual Mode Manual mode allows you to turn on one or more of the 360 degree lines with the pendulum in the locked position and so allows you to set up a laser line at an angle such as for installing balustrades. Manual mode is activated by pressing the manual mode left button when the pendulum is in the locked “OFF”... - Page 10 3L360 OPERATING INSTRUCTIONS cont. Pulse Mode (3L360R only) Pulse mode is only available on the 3L360R red beam model. Pulse mode allows the 3L360R to be used with a line receiver such as the RedBack LLR705 and so allowing the laser to be used outside for general site levelling, patios, decking etc.
- Page 11 Laser Receiver LLR705 (OPTIONAL Accessory for 3L360R only) The RedBack LLR705 is an OPTIONAL receiver for the 3L360R (red beam) model. It allows the laser beam to be picked up outside at up to 150m in any lighting conditions. Ideal for decking, sheds, slabs, framing and much more. The receiver can be used hand held or together with the staff clamp with a staff.
- Page 12 3L360 OPERATING INSTRUCTIONS cont. 3L360 Mounting Options The 3L360’s come with a magnetic mounting bracket and this mounting bracket features an elevating plate which allows the height of the horizontal laser line to be finely adjusted. The elevating plate also features a locking knob to prevent the lasers height changing once set.
-
Page 13: Technical Specifications
3L360 TECHNICAL SPECIFICATIONS Technical Specifications 3L360R - Red Beam Laser Wavelength 635nm Red Laser Class 3r <5mW Visible Range (light dependent) Up To 30m Range with Optional Receiver Up to 150m radius (300m diam) Accuracy ±2mm/10m Number 360 lines Self Levelling Range ±3 Temperature Range C - +40... - Page 14 We at Redback Lasers provide a once off free calibration and check within the duration of the warranty period see page 16 for details.
- Page 15 (battery leakage not covered by warranty) • The 3L360 is a precision instrument and should not be subjected to excessive knocks, drops or vibrations. • Self check calibration from time to time. See page 14 For service contact Redback Lasers. www.redbacklasers.com.au • www.redbacklasers.com.au...
- Page 16 3218 ph (03) 5228 0777 “You” or “Consumer” refers to the initial purchaser of the product. “Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and CMI Lasers. “Material” refers to material or component used in the construction and manufacture of the product.
