RedBack Lasers AT1 Instruction Manual

AT1 Auto Track Base Instruction Manual
The AT1 Auto Tracking Motorised Base and Tracking Receiver is designed to make site alignment
and squaring a snap. The base will operated with any red line laser with pulse mode and most
green line lasers also with pulse mode. The AT1 comes with two screw fittings to suit any laser
with a standard 5/8" survey thread or 1/4" camera thread. The base is powered by 4x "AA" bat-
teries and the receiver is powered by 3x "AA" batteries.

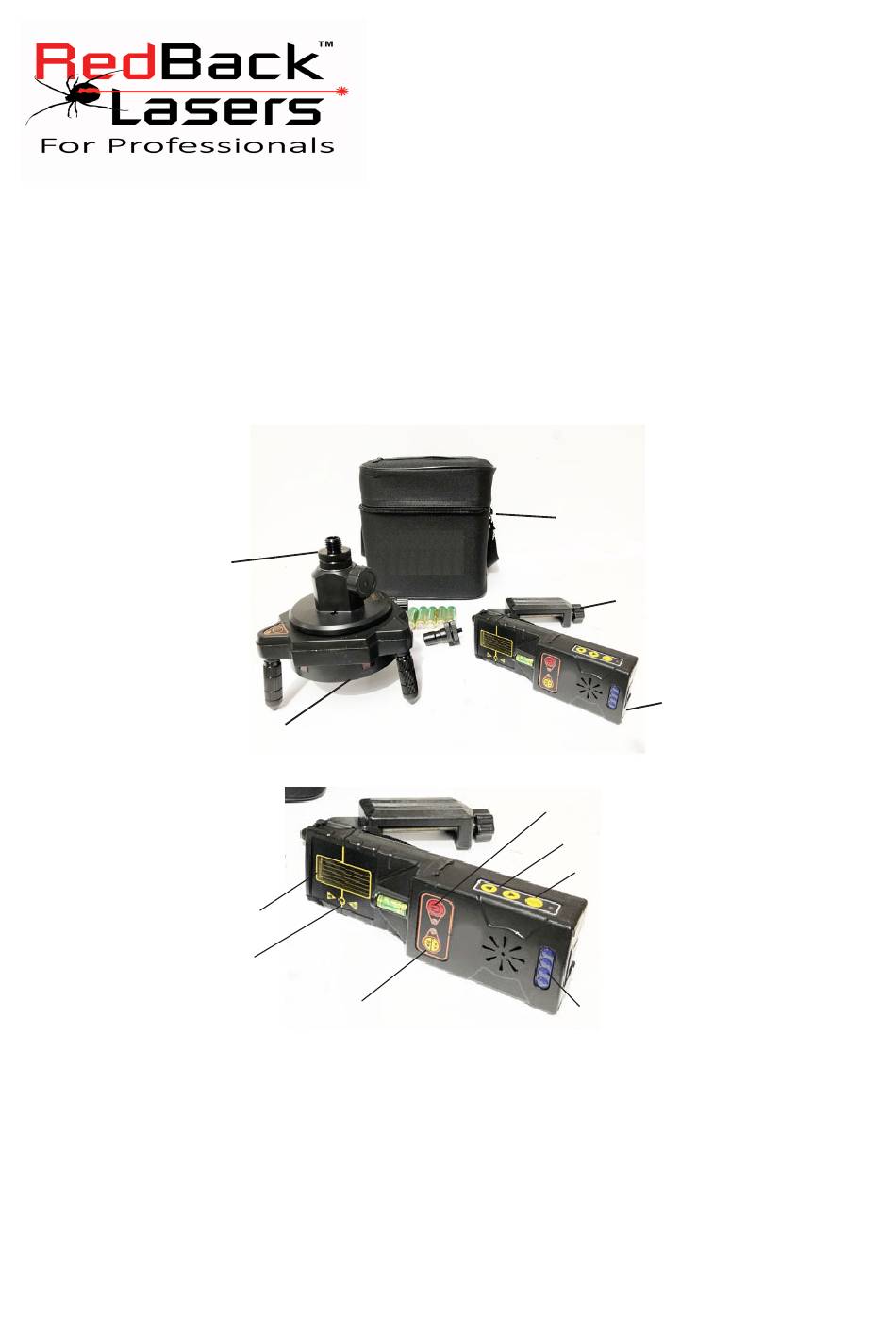

Laser Mounting Thread
(supplied with 5/8" and 1/4")
laser Pickup Sensors
LED Laser Position Indicators
Level Sensitivity (short press and Green LED) /
Sound on/off (long press)

Operation

First insert batteries in both the motorised base and receiver. Next determine which thread fits the laser you are us-
ing and screw it into the base of the laser. The laser can now be mounted onto the motorised base and the locking
nut tightened.
The motorised base is powered up by pressing the power button on one of its corners and the red LED should indicate
it is powered up. Next power up the required vertical laser lines on your laser as per the instructions for your laser.
Also put your laser into outdoor pulse mode.
www.redbacklasers.com.au
AT1 - Auto Track
Motorised Rotaing Base
Soft Carry Bag
Receiver Staff Clamp
Tracking Line Receiver
(Red and most Green Beams)
Power Button
Base Rotation Direction Buttons
Auto Button (starts tracking feature)
ir communication to base (requires line
of sight to base)
