RedBack Lasers Unilevel UNG6631 Instruction Manual

Green Multi 360 Line Laser Instruction Manual
The UNG6631 is an auto levelling 360 degree green multi-line laser. The laser provides horizontal
levelling, Vertical alignment, 90 degree square and plumb up and down. The laser features a class
3r <5mW green output. The UNG6631 is ideal for all manner of internal fit out applications and
can be used outdoors with an OPTIONAL LLR705 Line Receiver. The laser comes with a magnetic
mounting base which also allows the laser to mount on to either a survey or camera style tripod if
required. The laser is powered by a Li-ion rechargeable battery or standard "AA" cells.

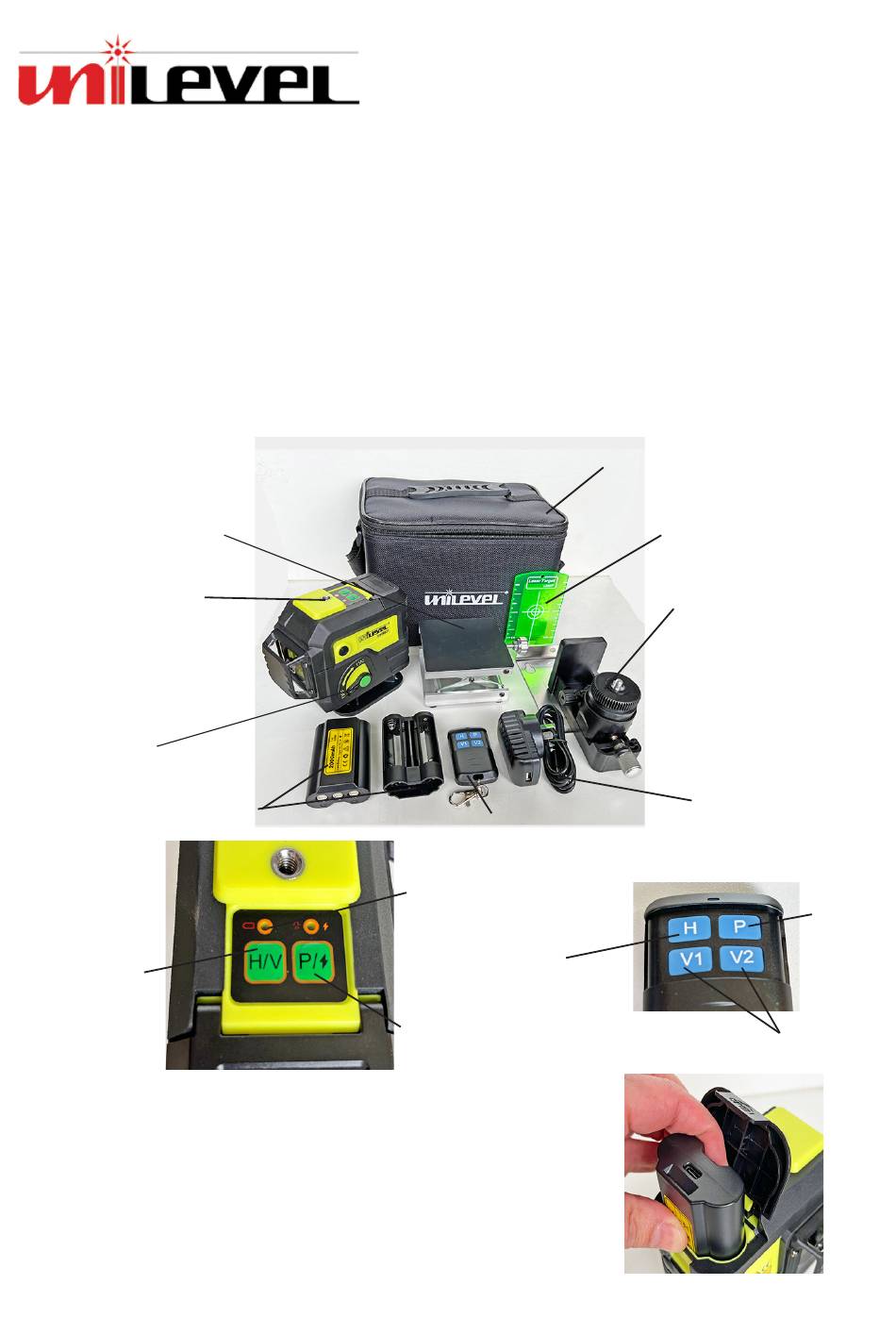

Elevating Platform
Top Mount for Magnetic
Bracket
(another mounting point is
also located on base of laser)
Locking Switch
Li-ion Battery & "AA" Holder
Horizontal/Verti-
cal Line Switch
Operation
First insert the Li-ion rechargeable battery making sure the three
terminal are facing inside the battery compartment. The battery is
charged using the supplied charger or any USB A output. To charge
remove battery from the laser and plug directly into the battery.
Alternatively you can charge the battery inside the unit using the USB
C socket below the battery compartment. You can also use standard
"AA" batteries if required with the standard battery holder.
www.redbacklasers.com.au
UNG6631
Green 360 Horizontal and
Vertical Multi-Line Laser
Remote Control
Low battery
warning light
Horizontal
Switch
Pulse Mode / Flash
Mode Button
Soft Carry Bag
Laser Target
Magnetic Mount with
Adjustement
USB Charging Cable
& Charger
Pulse Mode
Vertical Switch
