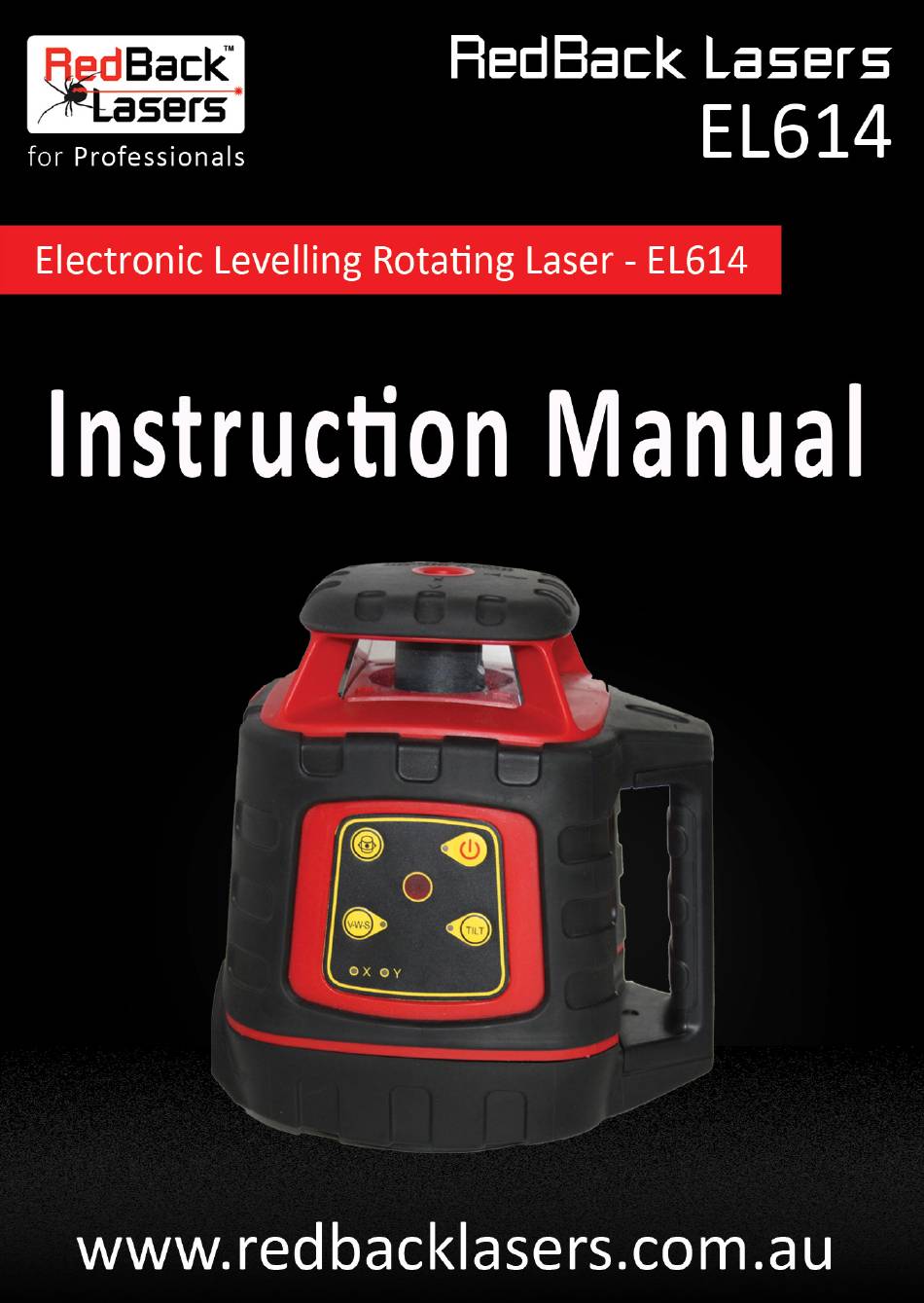

Summary of Contents for RedBack Lasers EL614
-
Page 2: Table Of Contents
CONTENTS User Safety Introduction and EL614™ Accessories EL614™Diagram Operating Instructions Batteries Power Tilt Mode V-W-S Rotation Speed Setting Grades (needs remote - Grade & Grade +MM kits only) Laser Receiver LR715 Laser Receiver LR720 (Grade + MM Kit only) Calibration Self Check & Technical Specifications Care &... - Page 3 2) Grade Kit - EL614 + Remote Grade + LR715 Receiver, 3) Grade + MM Kit - EL614 + Remote Grade + LR720 mm Receiver. These instructions cover all these configurations so may refer to Components such as remote or receiver type that you may not have purchased in your EL614 laser level kit.
-
Page 4: El614™Diagram
EL614 DIAGRAMS EL614 Laser Unit EL614 Safety Cage 1. Laser Output Window 2. Rubberised Casing 3. Keypad 4. Battery Compartment www.redbacklasers.com.au... - Page 5 Keypad Power LED Rotation Speed Power On/Off Vibration & Wind Tilt On/Off Sensor Select Axis LED’s For Grade Setting (Remote required) and calibration (service only) Receiver - LR715 Magnetic Mounting Rubber Casing LCD Display Reception Sensors (Repeated on rear) Fine/Coarse Mode Bubble Vial Speaker Control Display back light...
- Page 6 EL614 DIAGRAMS Receiver - LR720 mm Display (Grade + mm Kit only) Rubber Casing Large Reception Window LCD Displays (front/back) with mm from Level Custom Zero LED Displays Units of Measure Power Button Sound and Backlight Options Accuracy Settings Remote Control - Grade Setting (Grade &...
- Page 7 OPERATING INSTRUCTIONS Battery Instructions The EL614 has two battery options either 4 x standard “C” size Alkaline or the Ni-Mh rechargeable pack. For standard 4 x “C” alkaline operation simply insert into standard battery holder in the direction indicated and slide into battery recess and tighten the locking screw.
-
Page 8: Tilt Mode
Tilt mode is somewhat similar to tilt on a pinball table in that if when running the EL614 detects significant disturbance or movement that could effect the accuracy of your work the laser will “Tilt” (stop working) and the laser beams will flash to indicate this. -
Page 9: Rotation Speed
(800rpm) will provide best results. V-W-S Vibration & Wind Sensor Setting The EL614 continuously self levels for utmost accuracy, in high winds or vibrations the laser will stop rotating to re-level this may be inconvenient by... -
Page 10: Setting Grades
(requires remote control that comes with Grade & Grade +MM kits) The EL614 Grade and Grade + MM kits come with a remote control that can set a grade on one axis, it can be set to either the “X” or “Y” axis but not both. -
Page 11: Laser Receiver Lr715
LR715 RECEIVER INSTRUCTIONS Laser Receiver LR715 (Standard & Grade Kits) The LR715 is a heavy duty dual sided display rotating laser receiver, it can be either hand held or with the staff bracket clamped onto a staff. The bubble vials can be used to keep the receiver level. •... -
Page 12: Laser Receiver Lr720
LR720 RECEIVER INSTRUCTIONS Laser mm Receiver LR720 (Grade + mm Kit only) Battery Compartment 4x “AA” Alkaline Batteries Unit of Measure Measurement Above or Below Level Custom Zero Indicator Progressive Accuracy Indicator Display Sound Indicator Battery Level Light Indicator To power up the receiver press the red power button the display will flash a solid tone will sound. - Page 13 To select sound volume press the Sound Options button (short press) which will cycle through; off, low, high (default) sound levels. To select Accuracy press the Accuracy Options button which will cycle through level bands of; 5mm, 9mm and 1mm (default). The default single line between the two arrows on the display indicates fine mode 1mm, 3 lines 5mm and 5 lines is 9mm, the mm value flashes up on the LCD display momentarily.
-
Page 14: Technical Specifications
We at Redback Lasers provide a once off free calibration and check within the duration of the warranty period see page 16 for details. - Page 15 • Self check calibration from time to time. See page 14 For service contact Redback Lasers. www.redbacklasers.com.au • Trouble Shooting - FAQ The Laser does not power up! Check the rechargeable batteries are charged and connected correctly and or replace standard “C”...
- Page 16 “Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products. “Warranty Period” For the EL614 Five Years. Warranty period is from original purchase date, no extension is made in the event of warranty replacement products supplied or time spent being repaired.
