RedBack Lasers Unilevel UNL59 Instructions

Multi line laser level

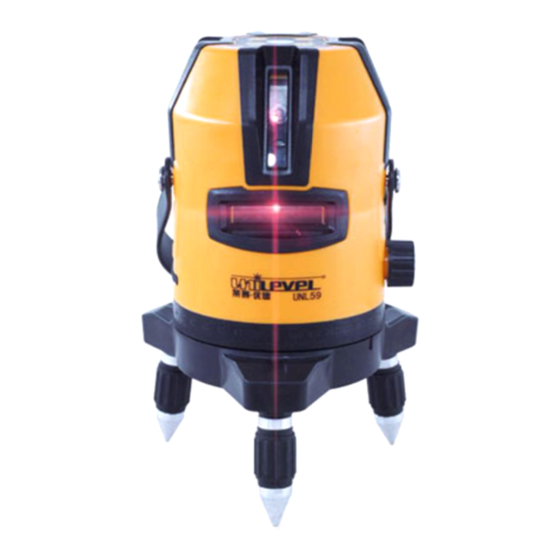

Thank you for purchasing the Unilevel UNL59 Multi-Line Laser Level. This laser features 4 Vertical

Lines and Horizontal plus Plumb dot down and ceiling cross for plumb. This laser is self levelling

by simply rotating the locking switch into the on position and selecting the required lines from the

top key pad. This laser is ideal for all indoor levelling and alignment work. The UNL59 can also

be used outdoors with the optional LLR705 Receiver with the laser in pulse mode.

UNL59 Multi Line Laser Level

Instructions

Laser Line Output

Pendulum Lock & Main Power Switch

Levelling Adjustment Feet

Power Horizontal Line

Power from USB Adaptor

(cable not included)

6V input from Mains Adaptor

(Optional Extra)

Pulse Mode & Manual Mode

(Optional Receiver)

Power Vertical Lines

Table of Contents

Need help?

Do you have a question about the Unilevel UNL59 and is the answer not in the manual?

Page 1 6V input from Mains Adaptor (Optional Extra) Thank you for purchasing the Unilevel UNL59 Multi-Line Laser Level. This laser features 4 Vertical Lines and Horizontal plus Plumb dot down and ceiling cross for plumb. This laser is self levelling by simply rotating the locking switch into the on position and selecting the required lines from the top key pad.
Page 2 “You” or “Consumer” refers to the initial purchaser of the product. “Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and UniLevel and include Laser and Optical Levels, Measuring tools and accessories.
