Faber e-MatriX linear 1050/400 I Installation Manual page 6

Installation manual e-MatriX linear 1050/400 I,II,III and e-MatriX linear 1300/400 I,II,III

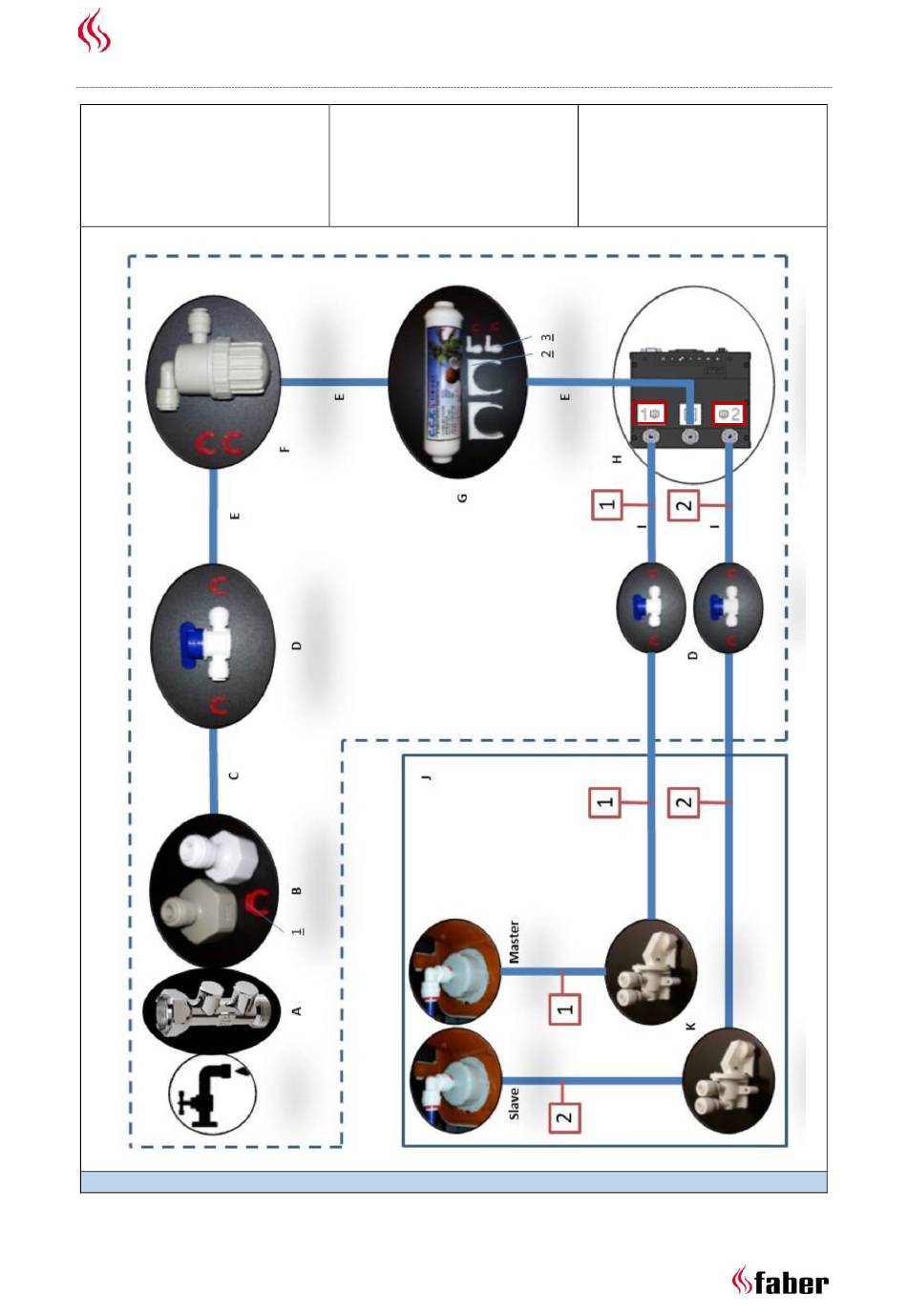

A = EA Non-return valve
B = ½ or ¾ "connector
C = ¼ "1m pipe
D = Valve
E = To be cut from a ¼ pipe length
of 1 meter
6 < < < <
F = Coarse filter
G = Fine filter
H = Control box
I = ¼ "1.5m pipe
J = Engine e-MatriX linear
5.0
1 = Safety clip (11x)
2 = Brackets (2x) fine filter
3 = Knee coupling (4x)
