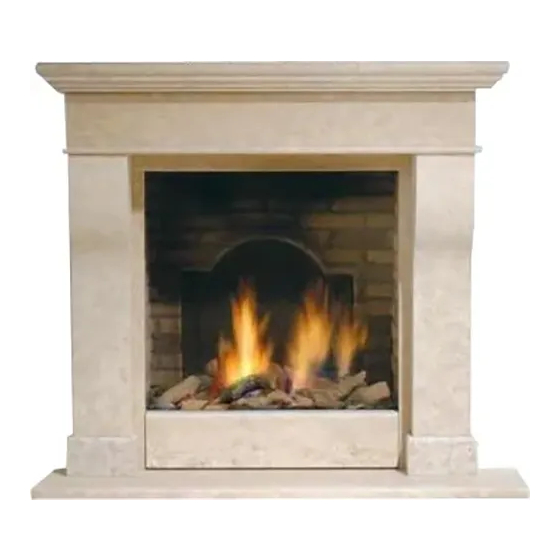

Summary of Contents for Faber Hestia
- Page 1 Hestia Installation Guide...
- Page 2 Content < < < <...
- Page 3 Hestia with Wirdum Surround > > > >...
- Page 4 Hestia with Jellum Surround < < < <...
- Page 5 Hestia Frameless > > > >...
- Page 6 (De)mounting the Glass < < < <...
-
Page 7: Table Of Contents
Appendix D: Technical specifications Flatburner ..........21 Appendix E: Technical specifications Logburner ........... 22 Appendix F: Dimensions Hestia Frameless ............23 Appendix G: Dim. Hestia with Jellum surround ............ 24 Appendix H: Dim. Hestia with Wirdum surround ........... 25 >... -
Page 8: Introduction
1 Introduction Note: these instructions should be read carefully and retained for future reference. Please leave these instructions with the user. There are two models of the Hestia: • Hestia with steel plated interior • Hestia Nostalgic with brick lining This manual covers both models. -
Page 9: Safety And General Information
2 Safety and general information Before installation, ensure that the local distribution conditions (identification of the type of gas and pressure) and the adjustment of the appliance are compatible. This gas appliance is factory set and can not be adjusted. This appliance does not contain any component manufactured from asbestos or any asbestos related products. -
Page 10: Installation Requirements
The appliance is of the type C11/C31. The appliance will need to be supplied with the approved Faber flue pipes and terminal, it is not possible to supply your own. The minimum effective height of the flue system must be 1 meter. -
Page 11: Flue Restrictor
Determine with the help of appendix A, B and C if the desired routing is possible. To establish this you will need to calculate: The effective height (this is the real difference in height between the upper side of the appliance and the terminal) The total horizontal extension. -
Page 12: Instruction For Installation
4 Instruction for Installation Gas Connection Installation pipes should be in accordance with BS 6891. Pipe work from the meter to the appliance must be of adequate size. The complete installation including the meter must be tested for soundness and purged as described in the above code. -
Page 13: False Chimney Brest Without Surround
False Chimney Brest without surround Remove the knock-outs in the DC-box and place vertically the metal studs in the knock-outs Build the false chimney using Promatect The measure in the clear of the false chimney brest has to be 670x782 (width x height). - Page 14 4.5.2 Assembly of the Surround • Establish the central point of the fireplace and mark this on the backing wall • Establish the distance between the appliance and the backing wall • If the backing wall is not level, you can fill it later •...
-
Page 15: Removal Of The Glass
Removal of the glass Two suction pads are delivered with the appliance to make removal easier. Always clean the suction lifters before use Place the suction lifters at the glass Remove the glass-clamp at the bottom side after removing the knurled screws (see figure 10) Place the suction lifters on the glass and bring the handles towards each other Move the glass carefully to the left till it stops... -
Page 16: Commissioning (Functional Checks)
5 Commissioning (functional checks) Pilot ignition check • Ignite the pilot light as described in the user manual • Check if the pilot burner stays alight • Extinguish the pilot burner Check functional burner and pilot burner The appliance is preset to give the correct heat input. No further adjustment is necessary. Always check the inlet pressure and burner pressure: •... -
Page 17: Handing Over (Final Check And Customer Briefing)
6 Handing over (final check and customer briefing) Instruct the customer on the full operation of the appliance and the remote control, including replacement of batteries Advise the customer how to clean the appliance including the glass Hand over these instructions including the user guide to the consumer Recommend that the appliance should be serviced by a competent person at least once a year 7 Servicing... -
Page 18: Cleaning The Combustion Chamber And Burner
Attention: Before placing the glass: check the glass sealing rope is in good condition and makes an effective seal. Be sure that there are no fingerprints on the glass. It is not possible to remove those prints after you burn the appliance for a while (they are burnt in). Place the glass in front of the appliance and fix the glass frame or use the glass clamps. -
Page 19: Appendix A: Example Calculation
Appendix A: Example calculation Calculation 1: Calculating horizontal extension fig. 2a: Flue length C + E = 1m + 1m Elbows D = 2m Total horizontal extension Measure or calculate effective height (Hvert) Flue length A Roof mounted terminal Total effective height According to the table in Appendix B is this situation allowed without a flue restrictor. -
Page 20: Appendix B: Flue Restrictor
When meeting an X, and when the values are outside the table, the combination is not allowed • Normally the 30 mm flue restrictor is pre-installed Horiztontale length (m) Horizontale length (m) Hestia Hestia Flatburner Logburne 19 < < <... -
Page 21: Appendix C: Installation Of The Flue
Appendix C: Installation of the flue Connection with use of concentric duct material Make a hole of ø 153 mm for the wall or roof mounted terminal. The horizontal pipes need to rise away from the appliance at a rate of 3 degrees per metre Build the system starting from the appliance on. -
Page 22: Appendix D: Technical Specifications Flatburner
Appendix D: Technical specifications Flatburner Flatburner Flatburner Country UK / IRL UK / IRL II 2E+3+ II 2H3+ Appliancetype C11 of C31 C11 of C31 Reference gas Input (nett) Efficiency class Inlet pressure Mbar Gas rate* Gas rate* gram/h Working pressure (high) Mbar 11.0 27.5... -
Page 23: Appendix E: Technical Specifications Logburner
Appendix E: Technical specifications Logburner Logburner Logburner Country UK / IRL UK / IRL II 2E+3+ II 2H3+ Appliancetype C11 of C31 C11 of C31 Reference gas Input (nett) Efficiency class Inlet pressure mbar Gas rate* Gas rate* gram/h Working pressure (high) mbar 11.5 29.6... -
Page 24: Appendix F: Dimensions Hestia Frameless
Appendix F: Dimensions Hestia Frameless 23 < < < <... -
Page 25: Appendix G: Dim. Hestia With Jellum Surround
Appendix G: Dim. Hestia with Jellum surround > > > >... -
Page 26: Appendix H: Dim. Hestia With Wirdum Surround
Appendix H: Dim. Hestia with Wirdum surround 25 < < < <... - Page 27 > > > >...
- Page 28 – info@faber.nl Saturnus 8 NL - 8448 CC Heerenveen Postbus 219 NL - 8440 AE Heerenveen T. +31(0)513 656500 F. +31(0)513 656501 40010610 − 0746...
