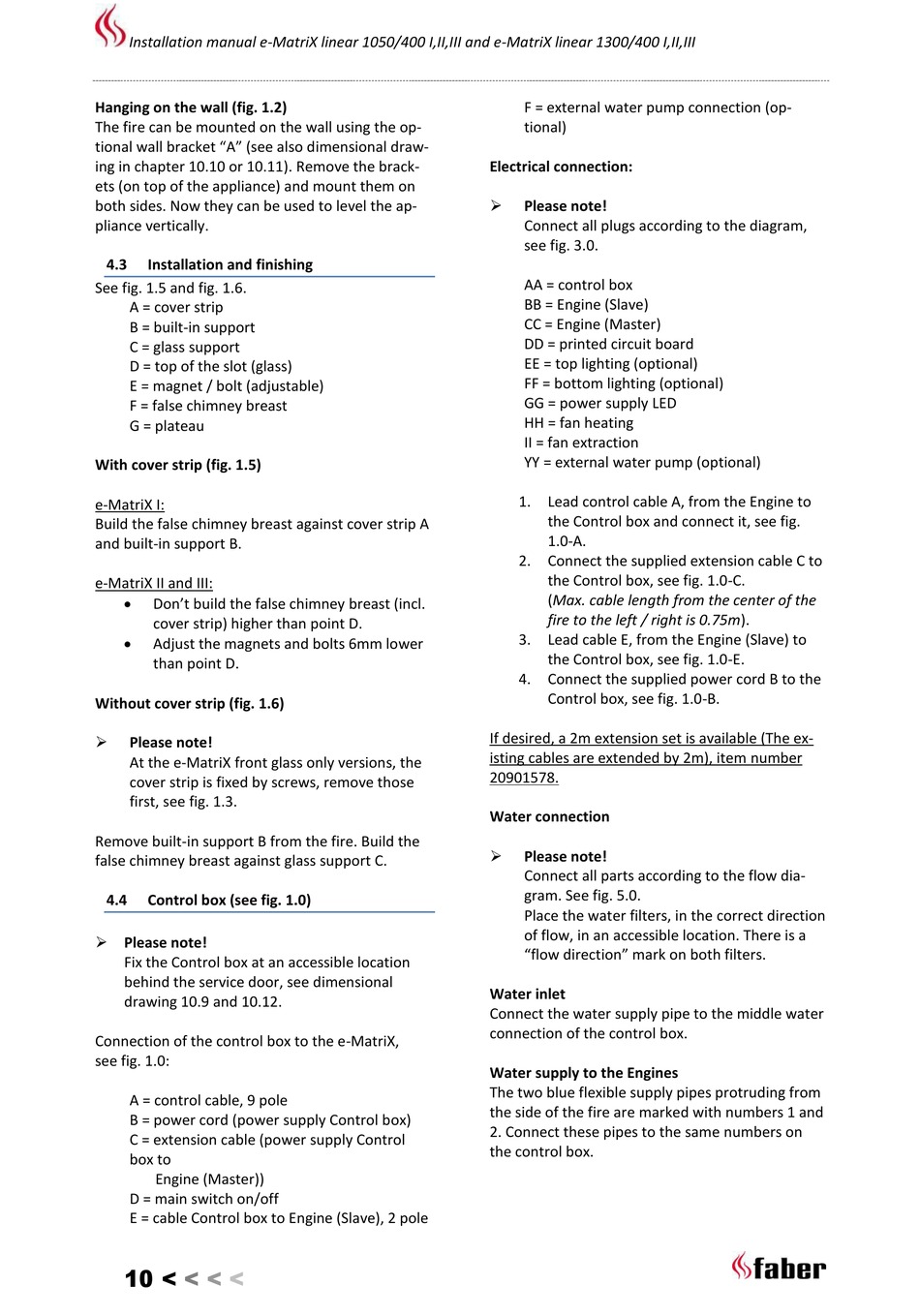

Installation manual e-MatriX linear 1050/400 I,II,III and e-MatriX linear 1300/400 I,II,III
Hanging on the wall (fig. 1.2)
The fire can be mounted on the wall using the op-
tional wall bracket "A" (see also dimensional draw-
ing in chapter 10.10 or 10.11). Remove the brack-
ets (on top of the appliance) and mount them on
both sides. Now they can be used to level the ap-
pliance vertically.
4.3 Installation and finishing
See fig. 1.5 and fig. 1.6.
A = cover strip
B = built-in support
C = glass support
D = top of the slot (glass)
E = magnet / bolt (adjustable)
F = false chimney breast
G = plateau
With cover strip (fig. 1.5)
e-MatriX I:
Build the false chimney breast against cover strip A
and built-in support B.
e-MatriX II and III:

Don't build the false chimney breast (incl.
cover strip) higher than point D.

Adjust the magnets and bolts 6mm lower
than point D.
Without cover strip (fig. 1.6)

Please note!
At the e-MatriX front glass only versions, the
cover strip is fixed by screws, remove those
first, see fig. 1.3.
Remove built-in support B from the fire. Build the
false chimney breast against glass support C.
4.4 Control box (see fig. 1.0)
 Please note!
Fix the Control box at an accessible location
behind the service door, see dimensional
drawing 10.9 and 10.12.
Connection of the control box to the e-MatriX,
see fig. 1.0:
A = control cable, 9 pole
B = power cord (power supply Control box)
C = extension cable (power supply Control
box to
Engine (Master))
D = main switch on/off
E = cable Control box to Engine (Slave), 2 pole
10 < < < <
F = external water pump connection (op-
tional)
Electrical connection:

Please note!
Connect all plugs according to the diagram,
see fig. 3.0.
AA = control box
BB = Engine (Slave)
CC = Engine (Master)
DD = printed circuit board
EE = top lighting (optional)
FF = bottom lighting (optional)
GG = power supply LED
HH = fan heating
II = fan extraction
YY = external water pump (optional)
1. Lead control cable A, from the Engine to
the Control box and connect it, see fig.
1.0-A.
2. Connect the supplied extension cable C to
the Control box, see fig. 1.0-C.
(Max. cable length from the center of the
fire to the left / right is 0.75m).
3. Lead cable E, from the Engine (Slave) to
the Control box, see fig. 1.0-E.
4. Connect the supplied power cord B to the
Control box, see fig. 1.0-B.
If desired, a 2m extension set is available (The ex-
isting cables are extended by 2m), item number
20901578.
Water connection

Please note!
Connect all parts according to the flow dia-
gram. See fig. 5.0.
Place the water filters, in the correct direction
of flow, in an accessible location. There is a
"flow direction" mark on both filters.
Water inlet
Connect the water supply pipe to the middle water
connection of the control box.
Water supply to the Engines
The two blue flexible supply pipes protruding from
the side of the fire are marked with numbers 1 and
2. Connect these pipes to the same numbers on
the control box.
