  • Page 1 User Manual RX SERIES ALL IN ONE RX-2505AC Rev 20220606 RX2505AC Page 1 of 35...
  • Page 2 Rev 20220606 RX2505AC Page 2 of 35...
  • Page 3 Software Licenses It is prohibited to use data confirmed in firmware or software developed by Redx, in part or in full, for commercial purposes by any means. It is prohibited to perform reverse engineering, cracking, or any other operations that compromise the original program design of the software developed by Redx.
  • Page 4 Redx energy storage system. Please read this manual carefully before using this product and store the manual in a safe place. Redx will not notify the user of any changes to this manual. This manual applies to the RX-2505AC all in one energy storage integrated system. The system must be installed by a qualified/licensed technician.

  • Page 5: Table Of Contents

    Table of Contents Safety ....................... 7 Important Safety instructions ................ 7 Product Introduction ..................9 System diagram ..................... 9 Product Information ..................9 2.2.1 Appearance and dimensions ..............9 2.2.2 Dimensions and weight ................10 LED Indicator Panel and Switches ..............11 Name Plate Labelling ...................
  • Page 6 Turn on RX-2505AC system ................27 Turn off RX-2505AC system ................27 Troubleshooting & Maintenance ..............27 Troubleshooting ................... 27 Maintenance ....................30 Routine Maintenance .................. 31 Redx Technology App ..................31 Quality Assurance ..................31 Appendix ....................32 11.1 Product Specification ................... 32 11.2 Optional accessories..................

  • Page 7: Safety

    Do not open the case as risk of electric shock is present b) Maintenance should be carried out by a professional licensed technician c) Read this manual before operating the system. Redx is not responsible for any failure or loss arising out of improper operation.
  • Page 8 Table 1-1 - Warnings Danger! Removal of any protection, incorrect use, incorrect installation, or incorrect Operation may result in death/serious personal injury or device damage. Transportation, loading and unloading, installation, start-up and maintenance Must be carried out by qualified or trained engineer/technician. Danger! Before maintenance or touching any parts, or installation, make sure that the Energy storage unit is disconnected and wait 60 seconds to ensure that the...

  • Page 9: Product Introduction

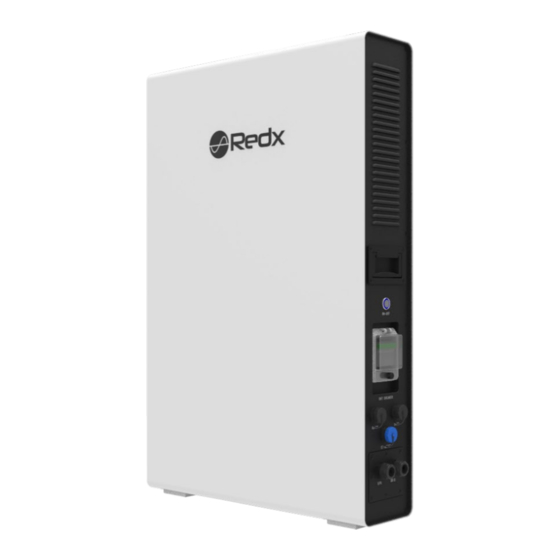

    Product Introduction System diagram The RX-2505AC system uses the grid and battery to ensure the continuous power supply to important loads. The system allows users to store the energy from grid into the battery, and send the stored energy to the grid when needed.

  • Page 10: Dimensions And Weight

    Table 2-1 – Battery components details Items Name Main power Switch Battery air circuit-breaker DRM0 RJ45 Terminal RS485(USB) CT/METER Terminal EPS Terminal AC Terminal Battery status indicator Run Indicator light VPP Indicator light Grid Indicator light Battery Indicator light Mounting bracket 2.2.2 Dimensions and weight Figure 2-3 –...

  • Page 11: Led Indicator Panel And Switches

    LED Indicator Panel and Switches Table 2-3 – Battery interface details Rev 20220606 RX2505AC Page 11 of 35...

  • Page 12: Name Plate Labelling

    Name Plate Labelling RX-2505AC label contains the following information. Table 2-4 – Battery label specifications 2.4.1 Product benefits Backup power supply, peak shaving, asset management Integrated design, save installation time and costs Smart management, different operating modes Battery safety management system Remote scheduling, intelligent management Multiple protection Rev 20220606...

  • Page 13: Scope Of Delivery

    2.5 Scope of Delivery Please check the condition of the packaging before unpacking. If any parts are damaged or missing, contact your local supplier for help. Table 2-5 – Parts in the box 2.6 Storage Store the unit properly when the unit is not installed immediately •...
  • Page 14 Install at suitable distance from any restricted areas, please review Standard ASNZS5139 Install on a sturdy supported surface The location must support the weight and size of the module The environmental temperature must be between 0 °C and +50 °C, and the relative humidity between 0% and 90% (without condensation) Check the fans in the unit regularly Location shall be dry with adequate air flow (pollution level <...

  • Page 15: Installation Tools

    3.2 Installation Tools Prepare the following tools before installation: Table 3-1 – Installation tools Rev 20220606 RX2505AC Page 15 of 35...

  • Page 16: Installation Guide

    4 Installation guide 4.1 System wiring diagram Figure 4-1 shows the wiring topology (dashed boxes indicate optional components) of the RX-2505AC all-in- one energy storage system. The RX-2505AC can be connected to a maximum of two wired CTs, please note that the CT cable length should not exceed 10m. Figure 4-1 –...

  • Page 17: Installation Procedure

    4.2 Installation procedure 1. Align the hole template (locating plate) with the ground and place it flat on the wall. 2. Align the hole template on the installation surface and drill holes with a diameter of 8mm and a depth of 40mm on the wall.

  • Page 18: Cable Connection

    5 Cable Connection 5.1 Connect cables to the AC grid side and off-grid side RX-2505AC has terminals for on and off-grid. As shown in Figure 5-1, the left terminal is the off-grid terminal (EPS) and the right terminal is the on-grid terminal. An independent AC circuit breaker must be configured for each circuit to safely disconnect then system.
  • Page 19 Requirements Install an AC circuit breaker between the inverter and the grid before connecting the system to the grid. Grid voltage and grid frequency should be within the allowable range of inverter operation. Steps 1. First, prepare the required connecting wires according to the following. It is recommended that the live wire be red, the ground wire be black, and the safety earth wire be yellow and green.
  • Page 20 4. Connect the cable to the corresponding terminal according to the marking and tighten the screws: Figure 5-5 – Cable cover guide Table 5-4 – Cable and cover details Nuts Cover GRID Rubber seal Rubber seal 3 core cable 3 core cable 5.
  • Page 21 Figure 5-7 - Example switchboard installation Figure 5-8 – 240V connection diagram On-grid only Notice： 1. If you only use the grid-connection function, connect it to the grid terminal as shown in Figure 5-8 and do not connect anything to the EPS terminal. 2.

  • Page 22: Ct/Meter Connection

    5.2 CT/METER Connection The CT/METER is required to monitor the energy usage. The steps of CT/METER connection are as follows: 1. Unscrew the rubber nut on the water-proof cover of the CT/METER. 2. Connect aviation plug (CT/METER) to the RX-2505AC(CT/METER) port as shown in Figure 5-9. 3.

  • Page 23: External Rs 485 Connection

    Figure 5-11 – CT polarity As shown in figure 5-11, an arrow indicates the direction of the CT, pass the cable through the hole of the CT, then close and lock the CT. Note: On the “Grid” CT the orientation of the arrow (L to G) must be pointing from switchboard to grid. The “PV”...

  • Page 24: Operation

    Figure 5-13 - DRM cable assembly Figure 5-14 - DRM RJ45 pins Table 5-6 - DRM pins detail DRM0_1 DRM0_2 6 Operation 6.1 Checklist before operation 1. Check whether the system is firmly installed, and the installation position is suitable for operation and maintenance.

  • Page 25: Operation Checks

    If the blue power LED does not light up, check if voltage is present on grid input terminals. If there is voltage on the grid terminals, but unit is still not illuminating the power button - please contact local Redx dealer. b) Install the APP or open the web page according to the attached instructions, and then configure the WIFI connection.

  • Page 26: Fault State

    6.3.2 Fault state The RX-2505AC has a smart control system that continuously monitors and reports system status. When there is a system or equipment fault, fault information will be displayed on the web page /APP, and the LED light will also be on in fault mode. Notes：...

  • Page 27: Communication

    The system has an external USB interface, which contains 5V power supply and RS485 communication. The Redx unit has a built-in data collector. Users can choose to connect their own data collector (WIFI/GPRS function) according to their requirements, and use the computer or mobile phone APP to monitor the machine.
  • Page 28 Common Fault and Information below: Table 8-1 – Fault information table 1 Fault information Fault reason Suggestion If the battery is connected 1. Check whether the battery cable is securely The battery connection No battery is detected connected and whether the battery voltage is error normal.
  • Page 29 Table 8-2 – Fault information table 2 cables are securely connected. 2. Check whether the grid has power. 3. If all conditions are correct and the fault still occurs, contact installation partner. Grid overvoltage 1. Check the grid voltage or frequency; If the When the grid detects an power grid voltage or frequency exceeds the Grid undervoltage...

  • Page 30: Maintenance

    Table 8-3 – Fault information table 3 1. Remove some loads. Ensure that the load is smaller than the maximum output power of the Output overload Overloaded outputs inverter. 2. Restart the inverter. 1. The inverter 1. Check whether the operating environment installation location is Components not ventilated.

  • Page 31: Routine Maintenance

    The user must provide proof of fault – pictures or videos with timestamps if requested by Redx. From the date of purchase by the user from Redx (hereinafter referred to as the manufacturer), the user will enjoy the following after-sales warranty service: A 5-year warranty commences from the date of shipment, during the warranty period the company provides free repair or replacement of product.

  • Page 32: Appendix

    The user intentionally conceals the improper use of the product during installation, wiring, operation, maintenance or other processes to the after-sales service provider of the manufacturer. *Redx reserves the right to change the contents of this specification and product performance without informing users.
  • Page 33 Table 11-2 – Product specifications table 2 Power factor 0.8 leading ~ 0.8 lagging Total THD ＜3% Phase type Single Phase Current (inrush) <1A 55Apeak/0.1ms Maximum output fault current Maximum output overcurrent protection Off-grid (EPS) Rated apparent power 2500VA Nominal output power voltage 230 Vac Nominal output power current 10.8A...

  • Page 34: Optional Accessories

    Table 11-3 – Product protections Islanding protection Anti-backflow DC reverse connection protection AC output short circuit protection Over-frequency and under-frequency protection Overvoltage or undervoltage protection DC fuse (battery side) Overcurrent protection (including Battery overcurrent) Over-temperature protection Table 11-4 - DC Ratings Rated insulation voltage 1000V Rated impulse withstand voltage...

  • Page 35: Contact

    Fault code/Name Briefly describe the fault symptom For more information,please scan QR code above or log in directly www.redxenergy.com.au Download the Redx App with the above QR Code Address: Unit 2/21 Millennium Circuit, Helensvale, QLD Australia 4212 Website: www.redxenergy.com.au Email: info@redxenergy.com.au Phone: +61 7 56729983 Specifications are subject to change without advance notice.
