- Page 1 Lithium Iron Phosphate Battery System User Manual RX- 0050 Document Version: 1.1 Issued Date: 2023-03-29...
- Page 3 About This Document Purpose This document describes the RX-0050 Lithium iron phosphate battery system in terms of its features, performance, working principles, appearance as well as instructions for installation, and operation and maintenance (O&M). Intended Audience This document is intended for: Sales engineers Technical support engineers System engineers...
- Page 4 REVISION LOG Version Num. Date Purpose of Revision V1.0 2020/12/14 This issue is the first official release. V1.1 2023/03/29 Clarified packaging and cable connections. Document Version: V1.1 Issued Date: 2023-03-29...
-
Page 5: Table Of Contents
Contents 1 Safety Information..................1 1.1 General Safety...................1 1.2 Personnel Requirements ..............4 1.3 Electrical Safety.................5 1.4 Installation Environment Requirements..........6 1.5 Mechanical Safety................6 1.6 Battery Safety..................8 1.7 Others....................11 2 Overview....................12 2.1 Product Introduction................12 2.1.1 Appearance..................12 2.1.2 Product Structure................13 2.2 Battery System Specification.............14 2.2.1 Cell Parameters................14 2.2.2 Battery Module Parameters............14 2.2.3 Protection Parameters..............15... -
Page 6: Safety Information
The "NOTICE", "WARNING", and "DANGER" statements in this document do not cover all the safety instructions. They are only supplements to the safety instructions. Redx will not be liable for any consequence caused by the violation of general safety requirements or design, production, and usage safety standards. - Page 7 RX-0050 Lithium iron phosphate battery system User Manual General Requirements Do not install, use, or operate outdoor equipment and cables (including but not limited to moving equipment, operating equipment and cables, inserting connectors to or removing connectors from signal ports connected to outdoor facilities, working at heights, and performing outdoor installation) in harsh weather conditions such as lightning, rain, snow, and level 6 or stronger wind.
- Page 8 RX-0050 Lithium iron phosphate battery system User Manual After installing the equipment, remove idle packing materials such as cartons, foam, plastics, and cable ties from the equipment area. In the case of a fire, immediately leave the building or the equipment area, and turn on the fire alarm bell or make an emergency call.
-
Page 9: Personnel Requirements
Do not power on the equipment before it is installed or confirmed by professionals. 1.2 Personnel Requirements Personnel who plan to install or maintain Redx equipment must receive thorough training, understand all necessary safety precautions, and be able to correctly perform all operations. -
Page 10: Electrical Safety
RX-0050 Lithium iron phosphate battery system User Manual 1.3 Electrical Safety Grounding For the equipment that needs to be grounded, install the ground cable first when installing the equipment and remove the ground cable last when removing the equipment. Do not damage the ground conductor. Do not operate the equipment in the absence of a properly installed ground conductor. -
Page 11: Installation Environment Requirements
RX-0050 Lithium iron phosphate battery system User Manual Figure 1-1 wearing an ESD wrist strap 1.4 Installation Environment Requirements If any liquid is detected inside the equipment, immediately disconnect the power supply and contact the vendor. Do not expose the equipment to flammable or explosive gas or smoke. Do not perform any operation on the equipment in such environments. - Page 12 Metal shavings from drilling may short-circuit boards inside the equipment. Obtain the consent from the customer, subcontractor, and Redx before drilling. Wear goggles and protective gloves when drilling holes. When drilling holes, protect the equipment from shavings. After drilling, clean up any shavings that have accumulated inside or outside the equipment.
-
Page 13: Battery Safety
RX-0050 Lithium iron phosphate battery system User Manual Be cautious to avoid injury when moving heavy objects. When moving the equipment by hand, wear protective gloves to prevent injuries. Move or lift the equipment by holding its handles or lower edges. Do not hold the handles of modules (such as power supply units, fans, and boards) that are installed in the equipment because they cannot support the weight of the equipment. - Page 14 NOTICE To ensure battery safety and battery management accuracy, use batteries provided with the UPS by Redx. Redx is not responsible for any battery faults caused by batteries not provided by Redx. Battery Installation Before installing batteries, observe the following safety precautions: Install batteries in a well-ventilated, dry, and cool environment that is far away from heat sources, flammable materials, moisture, extensive infrared radiation, organic solvents, and corrosive gases.
- Page 15 RX-0050 Lithium iron phosphate battery system User Manual Battery Short Circuit DANGER Battery short circuits can generate high instantaneous current and release a great amount of energy, which may cause equipment damage or personal injury. To avoid battery short-circuit, do not maintain batteries with the power on. Lithium Battery The safety precautions for lithium batteries are similar to those for lead-acid batteries except that you also need to note the precautions described in this section.
-
Page 16: Others
Improper use of the battery may cause damage to the battery due to overheating. Guang Dong Redx Electrical Technology Limited will not be responsible for any accidents caused by operation not in accordance with the specification. Responsibility, in order to ensure the safe use and disposal of the battery, please read the operating instructions carefully before use. -
Page 17: Overview

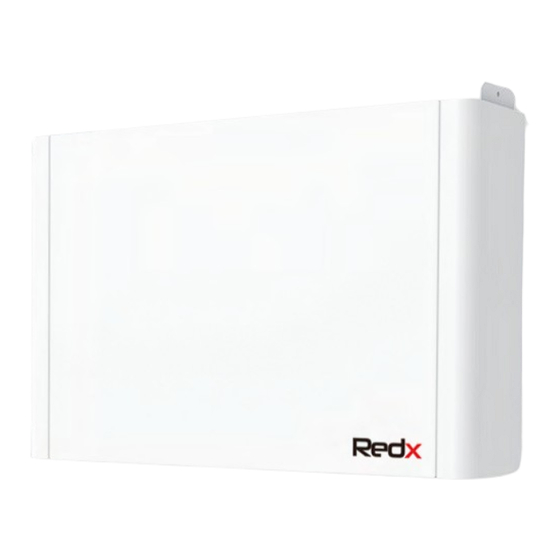

RX-0050 Lithium iron phosphate battery system User Manual 2 Overview 2.1 Product Introduction 2.1.1 Appearance Battery system Figure 2-1 appearance Document Version: V1.1 Issued Date: 2023-03-29... -
Page 18: Product Structure
RX-0050 Lithium iron phosphate battery system User Manual 2.1.2 Product Structure 1. Power port 2.Breaker 3. Start& Status display 4. Communications ports Document Version: V1.1 Issued Date: 2023-03-29... -
Page 19: Battery System Specification
RX-0050 Lithium iron phosphate battery system User Manual 2.2 Battery System Specification 2.2.1 Cell Parameters Items Parameters Cell type Prismatic Nominal voltage 3.2V Rated capacity 100AH Rated energy 320WH Internal resistance ≤0.4mΩ@25℃1kHz AC Allowed MAX charging current Recommended charging current ≤0.5C Allowed MAX discharging current 1C @25±5℃，SOC＞20%... -
Page 20: Protection Parameters
RX-0050 Lithium iron phosphate battery system User Manual 2.2.3 Protection Parameters The battery contains a lithium battery protection board, which can monitor the battery operating status in real time, provide protections such as overcharge, over discharge, overcurrent, and over temperature when necessary, and cut off the input and output of the power battery for protection when necessary. -
Page 21: Operations
RX-0050 Lithium iron phosphate battery system User Manual 3 Operations 3.1 Storage Scope of Delivery Please check the condition of the packing before unpacking. If any parts are damaged or missing, contact your local supplier for help. The battery power cables and battery communication cables are included in the inverter box. -
Page 22: Communication
Lithium iron phosphate battery system User Manual 3.2 Communication The Redx inverter has an external data collector, users can choose either WIFI or 4G dataloggers according to their requirements, and use their computer or mobile phone APP (Redx Power) to monitor the inverter and battery status. - Page 23 RX-0050 Lithium iron phosphate battery system User Manual Hole Template 5 N.M Expansion Bolts 5 N.M PE cable connects to inverter 5 N.M 5 N.M 1. 2 N.M Battery to Battery PE Cable Note： Com2 of Bat1 connects to Com1 of Bat2 COM2 BAT1 Communication...
-
Page 24: Powering On
● All internal maintenance of battery must be performed by trained personnel with insulation tools. The device behind the protective cover that can only be opened with a tool is not maintainable by users. For maintenance, please consult Redx for details. ● Periodically maintain the battery according to the following requirements. Otherwise, the normal operation of the battery may be affected and the service life of the battery may be reduced. - Page 25 RX-0050 Lithium iron phosphate battery system User Manual Electricity LED State of Event system Dormancy Shutdown Normal Stand Flashing 1 According to electric quantity Alarm Flashing 1 Flashing 3 Normal Lighting Alarm Flashing 3 Lighting indicator Charging Over voltage Protect Lighting Over current Protect Flashing 1...
-
Page 26: Terms
RX-0050 Lithium iron phosphate battery system User Manual 5 Terms 1 Cell A single cell. 2 Battery Module A plurality of single batteries are connected in series, parallel or series-parallel mode, and there is only a pair of positive and negative output terminals, which are used as a combination of power supply. - Page 29 Address: Unit 2/21 Millennium Circuit, Helensvale, QLD Australia 4212 Website: www.redx.com.au Email: info @ redxenergy.com.au Phone: 61 756729983 Specifications are subject to change without advance notice.
