Pixel Bubble 75 Set
3.

Description of the Device

The Showtec Pixel Bubble 75 Set is a matrix of 75x 50 mm (2") white frosted RGB balls with Individual Pixel
Control, suitable for creating a nice indoor visual effect. The set includes a 5-output PSU and 15 daisy-
chainable 1-m (3.28 ft) strings, each equipped with 5 multi-colour LED balls. Additional strings are optional
since each PSU-output can power to up to 6 daisy-chained strings. The Pixel Bubble 75 Set has an
innovative rigging system for easy truss rigging. Also, it has multiple controlling options, like DMX,
Master/Slave, Art-Net, Kling-Net and can be used as a stand-alone fixture with built-in programs.

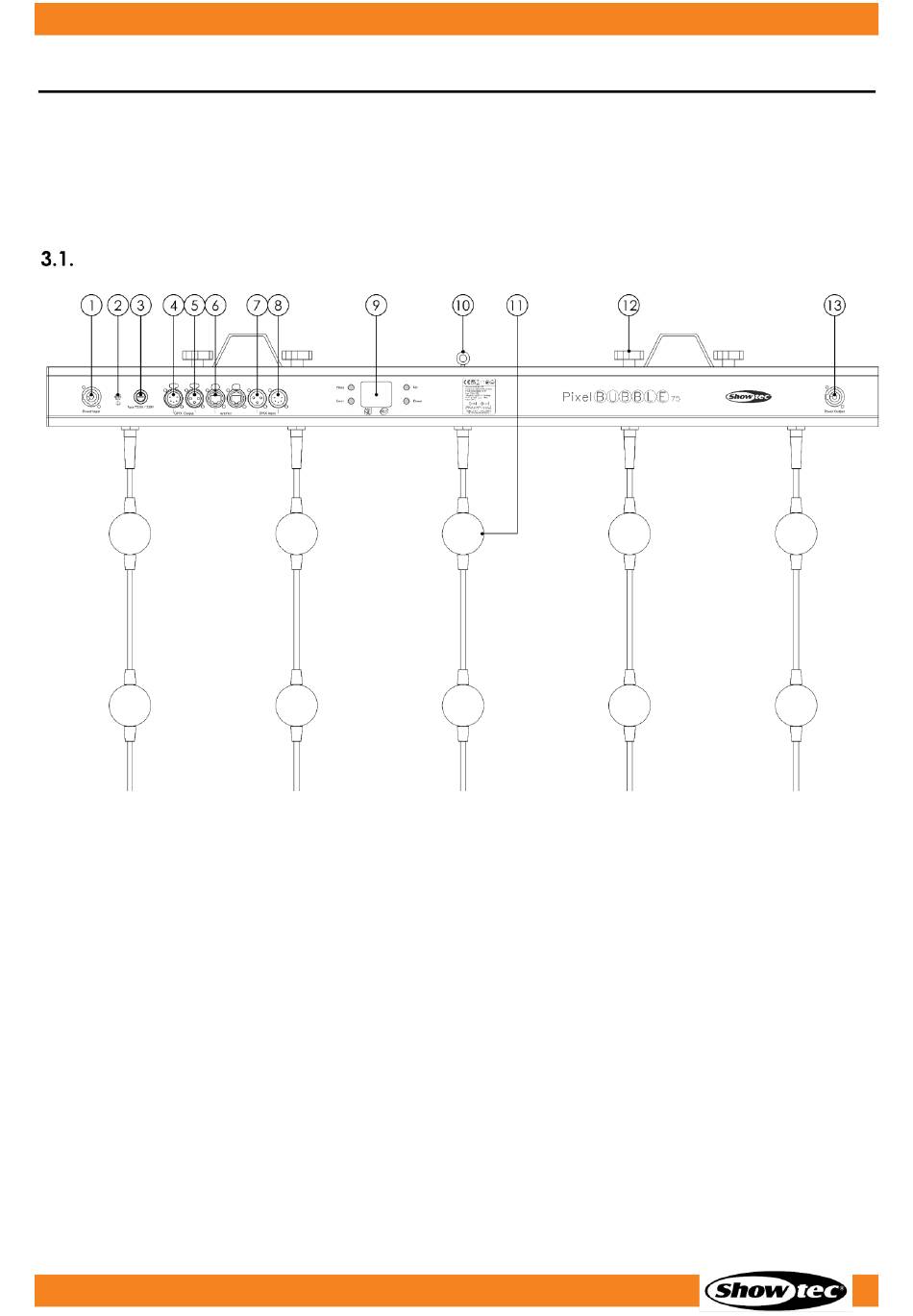

Back View

01) Pro power connector 100-240V IN (Blue)
02) Ground/earth connection
03) Fuse T3,5A/250V
04) 5-pin DMX signal connector OUT
05) 3-pin DMX signal connector OUT
06) 2x RJ45 ArtNet connector
07) 3-pin DMX signal connector IN
08) 5-pin DMX signal connector IN
09) LCD display + menu buttons
10) Safety eye
11) 4x Adjustment screw + 2x Mounting bracket
12) 5x 50 mm (2") RGB balls per string
13) Pro power connector 100-240V OUT (Gray)
Product code: 44570
10
Fig. 02
