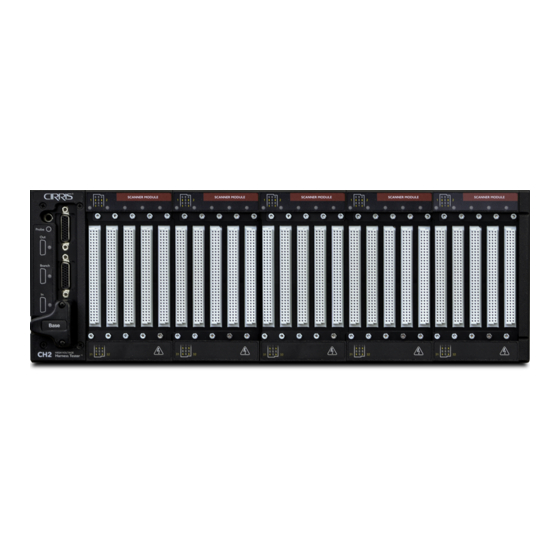

Cirris CH2 Manual

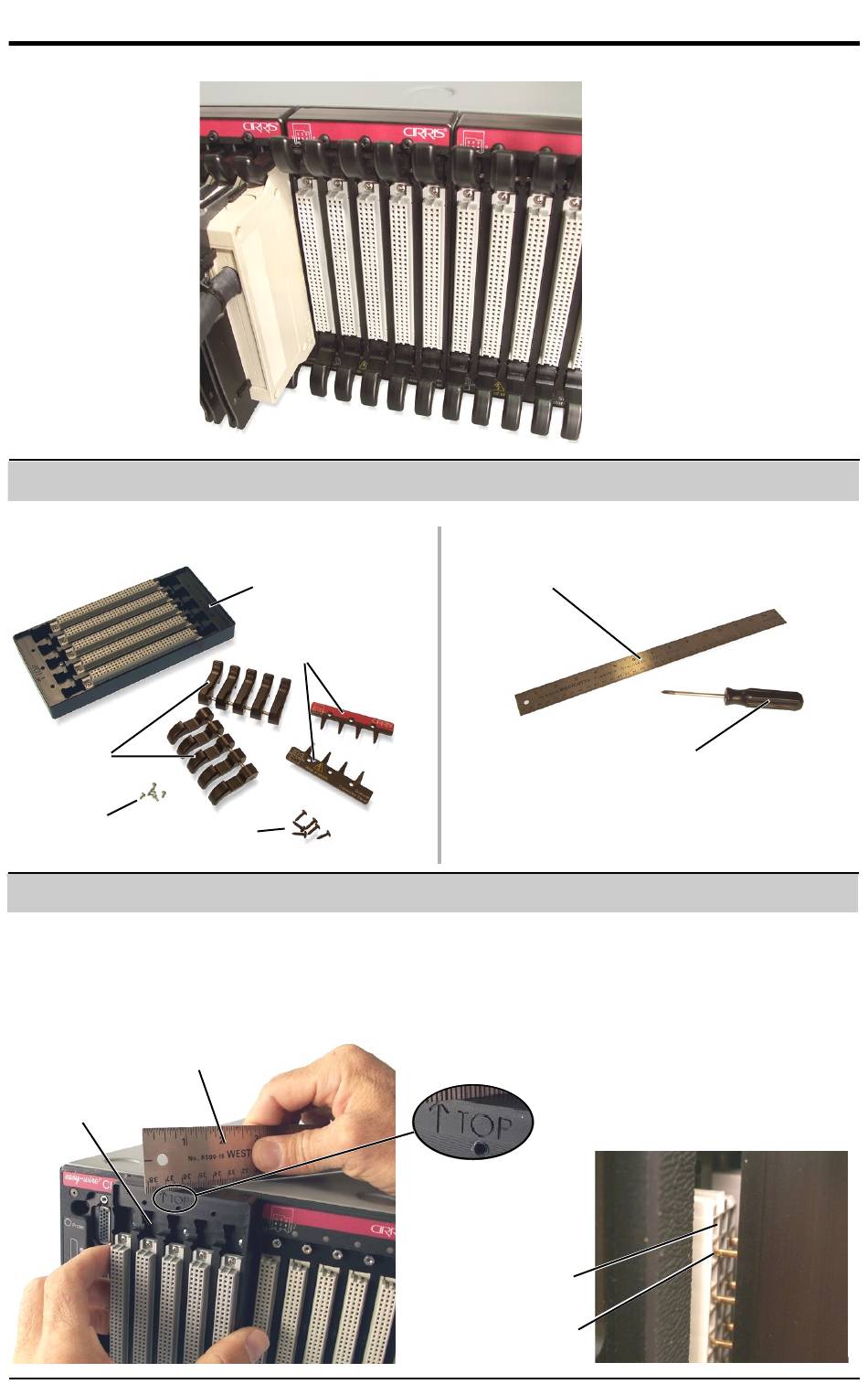

CH2 Connector Saver
Allows quick and repeated connections to the Cirris® CH2 Tester.
Before You Start
Each CH2 Connector Saver kit should
include:
Lever
Assemblies
Six M2.5 x
Six #4 x 3/8"
5mm Screws
Screws
Installing the Connector Saver
Using a straight edge, align the top and side
edges of the Connector Saver Frame Assembly
to the top and side edges of the corresponding
CH2 Scanner. Make sure the top indicator is up.
Straight edge
Connector Saver
Frame Assembly
ADCS-C2
Frame Assembly
Hold Down
Plates
Top indicator
Tools required for Install:
Straight Edge
Medium Phillips
Screw Driver
When properly aligned the
top pins insert in the second
row of the CH2 Scanner
connector as shown below.
First row
Second row
