- Page 1 Getting Started Guide Software & Documentation To download software, the CR User Manual, and other supporting documentation scan the QR code here or on the tester to visit downloads.cirris.com. downloads.cirris.com...
-
Page 2: Getting Started

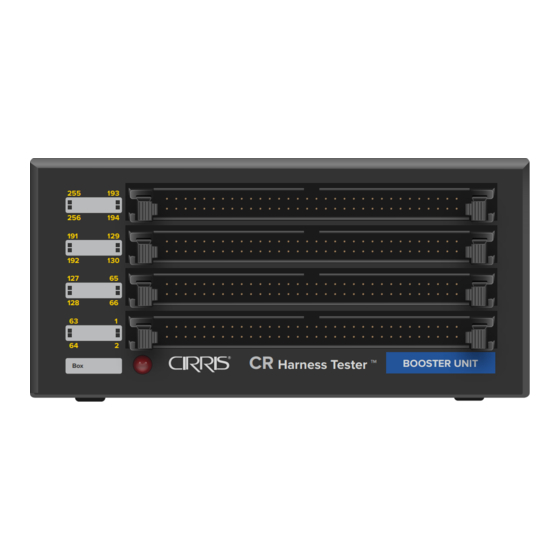

Getting Started The PC-controlled CR system can perform a wide variety of electrical tests including low voltage continuity, isolation, and passive component testing. The unit can be used as an end-of-line tester, but also excels as a test-while-you- build, guided assembly aid with graphic, textual, and audible instructions. -
Page 3: In The Package
● Tester mating cables ● Transition Boards ● PC Controller The CR system is controlled by the Easy-Wire software installed on a PC, which must meet the following requirements: ● Windows 10 operating system ● 1024 x 768 min. display resolution ●... -
Page 4: Assembling The System
Cables and rack-mount panels Harness Tester ™ Harness Tester ™ ADD ON UNIT ADD ON UNIT are required to install a CR system in a cabinet. In a distributed configuration, in which the scanner enclosures are separated Harness Tester ™... - Page 5 Place a terminator on the Base Unit Add On Out and/or Booster Out if either or both is unused - for example if the system consists of only a Base Unit. Steps 1 - 5 Terminator Terminator Terminator 80-23126.wir CR SCANNER BOOSTER 02/19/2021 CR Getting Started Guide...
- Page 6 Booster Units included in the system. Plug the power cord(s) into a surge-protected power strip and plug the power strip into a grounded power outlet. The CR Power Supply will automatically adjust to AC input from 100 - 240 volts AC, 50-60 Hz.
-
Page 7: Install The Software
Cirris Server Software If connecting the new CR station test station to a server using the Cirris Server Software, all the connected test stations and the server software must be the running the same software version. See the Cirris Server Software Installation Guide for instructions on installing the server software and for connecting test stations to the server database. - Page 8 Startup There are no power switches on the CR hardware. If properly connected to power and to the PC Controller, the system will wake when the Easy-Wire software opens. Open the Easy-Wire software by double-clicking on the desktop icon. If the icon can’t be found, from the Windows task bar, click Start >...
- Page 9 Accessing the Easy-Wire Help The Easy-Wire software includes a contextual Help system accessible by clicking on the Help button available on each Easy-Wire window. The Help can be browsed using its Table of Contents or searched by keywords. CR Getting Started Guide...
-
Page 10: Changing The Interface Language
From the Main Menu > Utilities > Setup System Options. Under the Software Settings tab, select Change. Select a language from the list of options and click OK. Click OK on the Setup System Options window to return to the Main Menu. Cirris... -
Page 11: Help & Support
New Cirris testers ship with a Certificate of Calibration valid for one year. Cirris recommends that the calibration be validated annually at a minimum thereafter. The validation can be performed by Cirris or by the end user or a calibration ser- vice provider using a CR Performance Verification Kit. Contact your Cirris sales representative for more information. -
Page 12: Warranty
Warranty Cirris Inc. warrants new products manufactured by Cirris Inc. to be free from de- fects in material and workmanship for a period of twelve months. Products not manufactured by Cirris Inc. are warranted by their manufacturer. Cirris Inc. at its option will repair or replace faulty goods and is not responsible for any conse- quential loss incurred due to faulty goods.
