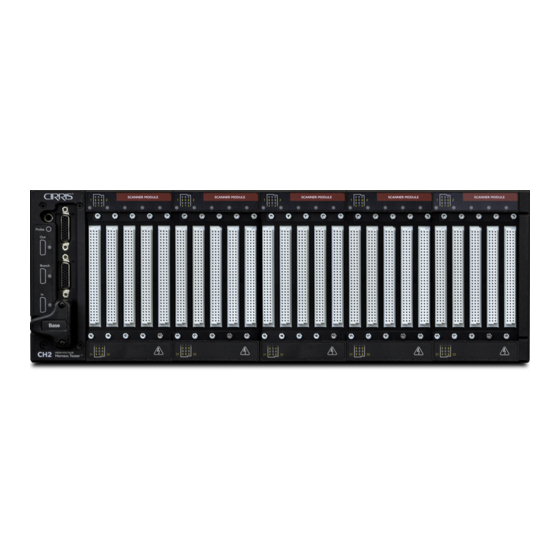

Cirris CH2 Getting Started Manual
  1. Manuals
  2. Brands
  3. Cirris Manuals
  4. Test Equipment
  5. CH2
  6. Getting started manual

Cirris CH2 Getting Started Manual

Hide thumbs Also See for CH2:
Table of Contents

Advertisement

Quick Links

Download this manual
CH2
Getting Started Guide
Software &
Documentation
To download software, the CH2 User Manual,
and other supporting documentation scan
the QR code here or on the tester to visit
downloads.cirris.com.
downloads.cirris.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cirris CH2

Summary of Contents for Cirris CH2

  • Page 1 Getting Started Guide Software & Documentation To download software, the CH2 User Manual, and other supporting documentation scan the QR code here or on the tester to visit downloads.cirris.com. downloads.cirris.com...

  • Page 2: Getting Started

    In order to mitigate the risk, without the external xHV or xHVC power supplies or an external meter, the CH2 high voltage energy limit is 35 mJ and the high voltage charge limit is 45μC. These...

  • Page 3: Intended Use

    NOT perform high voltage testing. Intended Use Cirris CH2 systems are designed for electrical testing and are intended to be used indoors, in a dry environment, at a temperature of 50-104 degrees Fahrenheit (10-40 degrees Celsius). High voltage Insulation Resistance measurements degrade above 70% relative humidity.

  • Page 4: In The Package

    ● Tester mating cables ● Connector Savers ● PC Controller The CH2 system is controlled by the Easy-Wire software installed on a PC, which must meet the following requirements: ● Windows 10 operating system ● 1024 x 768 min. display resolution ●...

  • Page 5: Assembling The System

    Assembling the System CH2 systems can be assembled in a variety of configurations. The Expansion Scanner Enclosures are designed to be stacked on top of the Base Unit or mounted in 19” (482.6 mm) electronics cabinets with the Base Unit mounted below the Expansion Enclosures.
  • Page 6 OVERRIDE Insert the USB Type B connector of the supplied USB cable into the From PC (USB) port on the CH2 Base Unit and connect the other end to a USB port on the PC controller. Connect the HV Interlock Override to the Digital I/O connector. The CH2 will not perform high voltage testing unless it senses a connection between Digital I/O pins 6 and 25, which the override provides.

  • Page 7: Install The Software

    Cirris Server Software If connecting the new CH2 station test station to a server using the Cirris Server Software, all the connected test stations and the server software must be the running the same software version. See the Cirris Server Software Installation Guide for instructions on installing the server software and for connecting test stations to the server database.
  • Page 8 Startup Move the power switch on the CH2 Base Unit and any Expansion Scanner Enclosures to the On position. The system won’t indicate any change of state until the Easy-Wire software is opened. Open the Easy-Wire software by double-clicking on the desktop icon. If the icon can’t be found, from the Windows task bar, click Start >...
  • Page 9 Accessing the Easy-Wire Help The Easy-Wire software includes a contextual Help system accessible by clicking on the Help button available on each Easy-Wire window. The Help can be browsed using its Table of Contents or searched by keywords. CH2 Getting Started Guide...

  • Page 10: Changing The Interface Language

    From the Main Menu > Utilities > Setup System Options. Under the Software Settings tab, select Change. Select a language from the list of options and click OK. Click OK on the Setup System Options window to return to the Main Menu. Cirris...

  • Page 11: Help & Support

    New Cirris testers ship with a Certificate of Calibration valid for one year. Cirris recommends that the calibration be validated annually at a minimum thereafter. The validation can be performed by Cirris or by the end user or a calibration service provider using a CH2 Performance Verification Kit. Contact your Cirris sales representative for more information.

  • Page 12: Warranty

    Warranty Cirris Inc. warrants new products manufactured by Cirris Inc. to be free from de- fects in material and workmanship for a period of twelve months. Products not manufactured by Cirris Inc. are warranted by their manufacturer. Cirris Inc. at its option will repair or replace faulty goods and is not responsible for any conse- quential loss incurred due to faulty goods.
