Important safety instructions：
•
Please read carefully all instructions before assembling.
•
For your safety and ease,assembly by two or more adults is recommended.
•
Keep instructions for future use.
Pre-assembly：
• Do not discard any content until assembly completed to avoid accidentally discarding small parts or
• Take out all parts and hardwares from box .
Parts List
Item
Description
P1
Front Legs
P2
Back Legs
P3
Left Arm
P4
Right Arm
P5
Back Fram
P6
Seat Fram
Hardware List
Item
Description
Bolts
H1
φ5/16*55mm
Lock Washers
H2
φ5/16"
Flat Washers
H3
φ5/16"
Allen Wrench
H4
φ5/16"
H5
Silicone Pad
H6
Plastic Washer
Assemble Procedures:
Step 1.Assemble the chair on a flat,soft surface such as carpet or cloth to prevent scratching the finish.Take out four legs
and hardwares from the box.
Step 2.Install the Arms(P3,P4) to the back(P5) frame as bellow pictures.
P3
P
P5
Step 3.Push the Seat frame(P6) into the Back frame(p5) as bellow picture.
ASSEMBLY INSTRUCTIONS

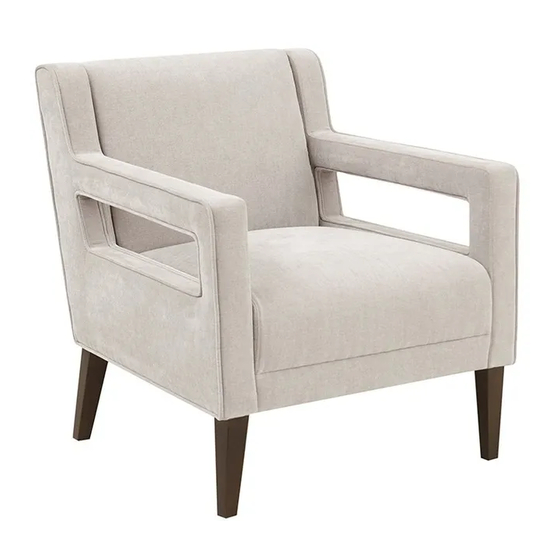

Description：Tyley Accent Chair
DRAWING
QTY
2
2
1
1
1
1
DRAWING
QTY
12
12
12
1
4
4
P5
P4
Page 1 of 2
X12
X12
X12
X1
P5
P6
X4
X4
P5
P4
P3
Advertisement
Table of Contents
Related Manuals for Madison Park Tyley
Summary of Contents for Madison Park Tyley
- Page 1 ASSEMBLY INSTRUCTIONS Description：Tyley Accent Chair Important safety instructions： • Please read carefully all instructions before assembling. • For your safety and ease,assembly by two or more adults is recommended. • Keep instructions for future use. Pre-assembly： • Do not discard any content until assembly completed to avoid accidentally discarding small parts or •...
- Page 2 Step 4. Attach the Seat frame(P6) to the Back fram(P5) by using lock washer(H2),flat washer (H3) . Then tighten the bolts with allen wrench (H4). Step 5. Attach the Left arm(P3)&Right arm(P4) by using lock washer(H2),flat washer (H3) .,bolt( H1).Then tighten the bolts with allen wrench (H4).
