We appreciate your purchase of a TAKEX flame sensor. This sensor will provide long and dependable service when properly installed.
Please read this Instruction Manual carefully for correct and effective use.
Please note : This sensor is designed to detect flames and to initiate an alarm. It is not a fire-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, natural disasters (including inductive
surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.

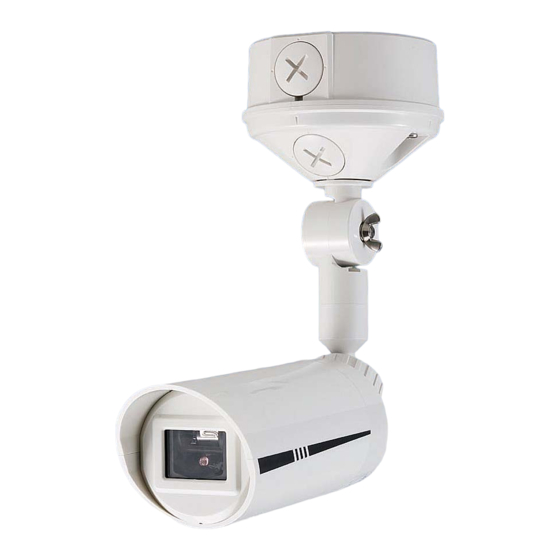

The flame sensor TX-124R detects ultraviolet rays contained in flames and activates an external output. It can be installed either
indoors or outdoors. Selecting the setting that is best suited to the environment the sensor is installed in from the 8 types will reduce
the possibility of false detection of other kinds of ultraviolet rays.
The TX-124R is a low current consumption device that is designed to be equipped with a wireless transmitter in the back box.
Please confirm that this unit matches with the transmitter to be used. Some transmitters may not perceive the output of this unit.
Back box
Cross head screw
Grip bolt
Sensor
Built-in operation LED (Red)
Detection
window
CAUTION
＊Follow the voltage of the indicated power supply.
lncorrect voltage may cause fire, electric shock, etc.
＊Do not connect equipment that exceeds the indicated
output capacity. It may cause fire.

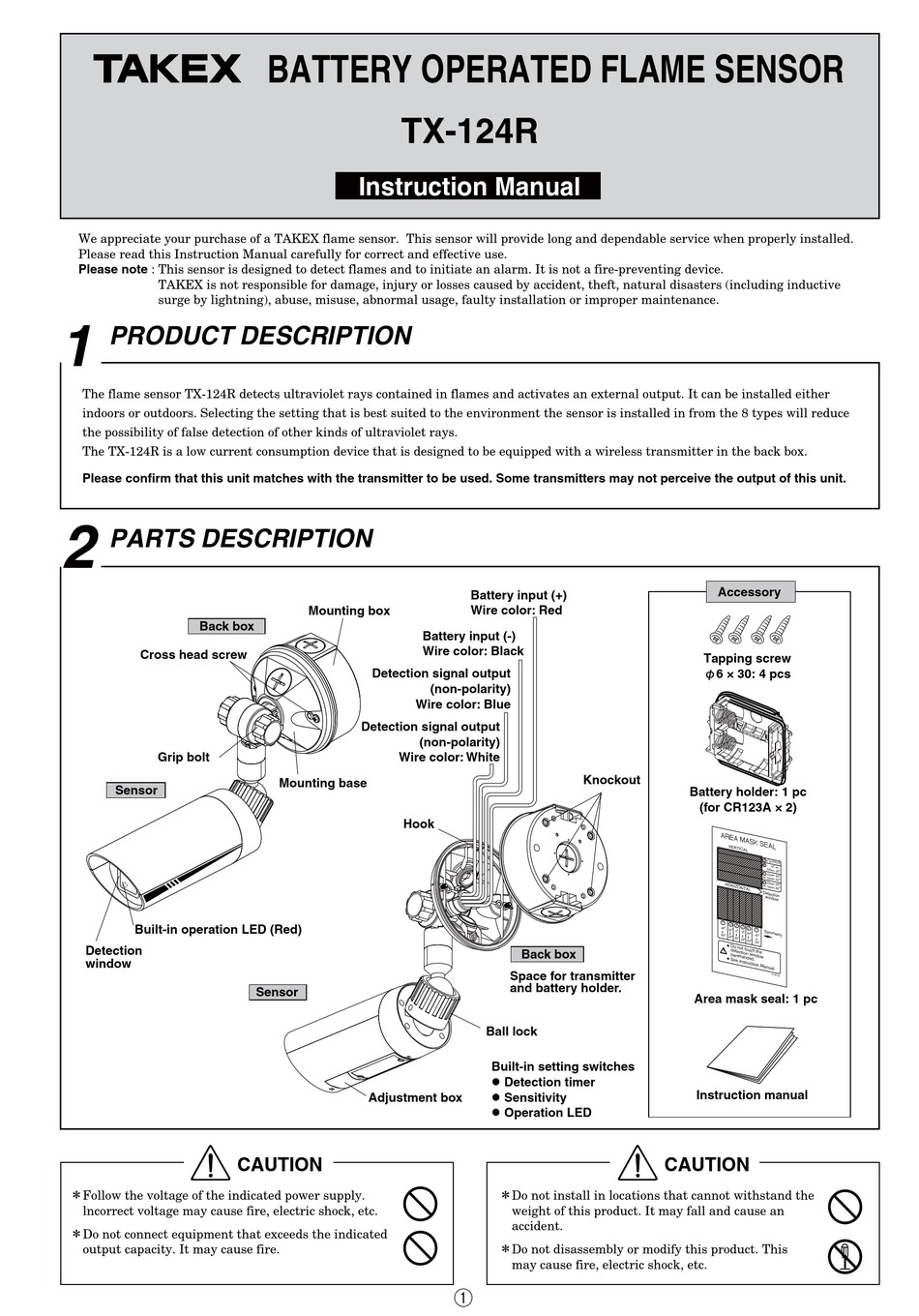

BATTERY OPERATED FLAME SENSOR
TX-124R
Instruction Manual
Mounting box
Battery input (-)
Wire color: Black
Detection signal output
Wire color: Blue
Detection signal output
(non-polarity)
Wire color: White
Mounting base
Hook
Sensor
Adjustment box
Battery input (+)
Wire color: Red
(non-polarity)
Knockout
Back box
Space for transmitter
and battery holder.
Ball lock
Built-in setting switches
Detection timer
Sensitivity
Operation LED
＊Do not install in locations that cannot withstand the
weight of this product. It may fall and cause an
accident.
＊Do not disassembly or modify this product. This
may cause fire, electric shock, etc.
①
Accessory
Tapping screw
φ6 × 30: 4 pcs
Battery holder: 1 pc
(for CR123A × 2)
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
＊
＊
Area mask seal: 1 pc
Instruction manual
CAUTION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Takex TX-124R
Summary of Contents for Takex TX-124R
- Page 1 The TX-124R is a low current consumption device that is designed to be equipped with a wireless transmitter in the back box. Please confirm that this unit matches with the transmitter to be used. Some transmitters may not perceive the output of this unit.
-
Page 2: Product Classification
This unit is not a fire-preventing properly, such as generating an alarm when there is no flame device. It will not detect smoke or heat. TAKEX is not or when none of the "possible causes of false alarm" listed responsible for damage, injury or losses caused by fire, accident, below are present. - Page 3 The detection distance depends on the size and duration of the flame. Bigger flames with longer durations can be detected at longer ● distances. Smaller flames with shorter durations can only be detected at shorter distances. [TOP VIEW] [TOP VIEW] (20 m) (20 m) [Sensitivity: H]...
-
Page 4: Battery Input
WARNING Use a common battery for TX-124R and a transmitter. When inserting or replacing batteries, be sure to use two new batteries. Do not mix used and new batteries. Use CR123A lithium batteries only! (1) Take the 2 screws (cross head screws) off the mounting base and detach the mounting box. - Page 5 1) Select the most suitable installation position and method according to the purpose. The detection area can be adjusted to have a wide angle which allows ● Ball Grip Bolt the sensor to be installed in various locations. lock Loosen the Grip bolt and ball lock and refer to section 3 when ●...
-
Page 6: Detection Timer
Detection Function This product outputs an alarm when it detects ultraviolet rays emitted from flames. Outdoor installation causes much more false detection than is experienced with indoor installation, as there are many other sources of ultraviolet rays and few shielding objects. The 8 selectable sensitivity levels composed of 2 sensitivity settings and 4 detection timer settings have been included to prevent false detection in such uncertain conditions outdoors. -
Page 7: Maintenance
Solve possible problems according to the following table: If normal operations cannot be restored by these corrective actions, contact either the dealer from whom you bought the unit or TAKEX. Corrective action Trouble Check No battery connected Connect battery ●... - Page 8 TAKEX. All implied warranties with respect to TAKEX, including implied warranties for merchantability and implied warranties for fitness, are limited in duration to 12 months from original date of shipment. During the Warranty Period, TAKEX will repair or replace, at its sole option,free of charge, any defective parts returned prepaid.
