- Page 1 User Manual Pipe Inspection Camera Probe Model VS80C10–25RM...
-
Page 2: Product Description

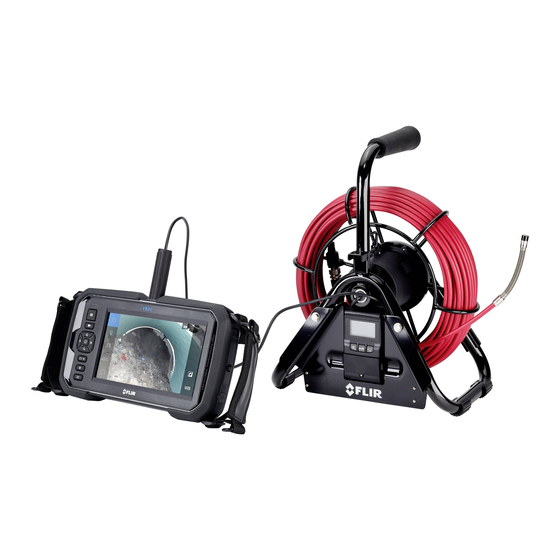

Introduction Thank you for selecting the FLIR pipe inspection probe. The probe includes a digital camera with mirror and centring tool accessories, a coiled 82 ft (25 m) probe, and a distance gauge. The probe is intended for use with the VS80 High Performance Vid- eoscope. - Page 3 6. Digital display shows probe travel distance 7. Power/Reset button. Press for 3 seconds to switch ON or OFF. Short press to reset/zero the display 8. Battery compartment cover 9. Battery compartment screw 10. Display backlight button 11. Unit of measure button 12.
- Page 4 CAUTION To clean the probe, wipe with a soft cloth dampened with a mild detergent and clean water. Do not use abrasive detergents, solvents, corrosives, or alcohol to clean the probe. Use a high quality lens cleaning fluid and a lint-free swab to clean the camera and worklight lenses.
-
Page 5: Camera Accessories
Camera Accessories The kit includes a side view mirror and two centring tools (Ø13 and Ø20 mm), shown above, left to right. The mirror tool provides a side view of the inspection area, and the centring tools maintain a straight trajectory for the probe in a variety of pipe sizes. Side View 70°... - Page 6 Centring Head Installation Centring Head with Side View Mirror Installation Distance Gauge The backlit electronic gauge (3) measures and displays the dis- tance the probe travels into the inspection area in meters and feet. The gauge tracks forward and reverse movement. Powering the Distance Gauge The distance gauge is switched ON or OFF by pressing the power button (7) for three seconds.
-
Page 7: Measurement Considerations
If not, or if the image is flickering or other- wise compromised, remove the probe and reattach it. Contact FLIR support for assistance if issues persist. • Turn the probe wheel (4) slowly when moving the probe through a pipe. -
Page 8: Specifications
Specifications Camera Specifications Camera image resolution 640 * 480 pixels Frame rate 30 frames per second (fps) Probe head and body 0.4 in (10 mm) diameter Probe head length 0.7 in (16.7 mm) Probe length 82 ft (25 m) Probe head material Stainless steel Worklights One front facing and one side facing LED... -
Page 9: Warranty And Support
Dimensions 2.4 x 4.3 x 10.0 in (62 x 110 x 25 mm) Warranty and Support Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. CUSTOMER SUPPORT Customer Support Telephone List https://support.flir.com/contact... - Page 10 #NAS100103; r. AB/83715/84877; en-US...
- Page 12 Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
