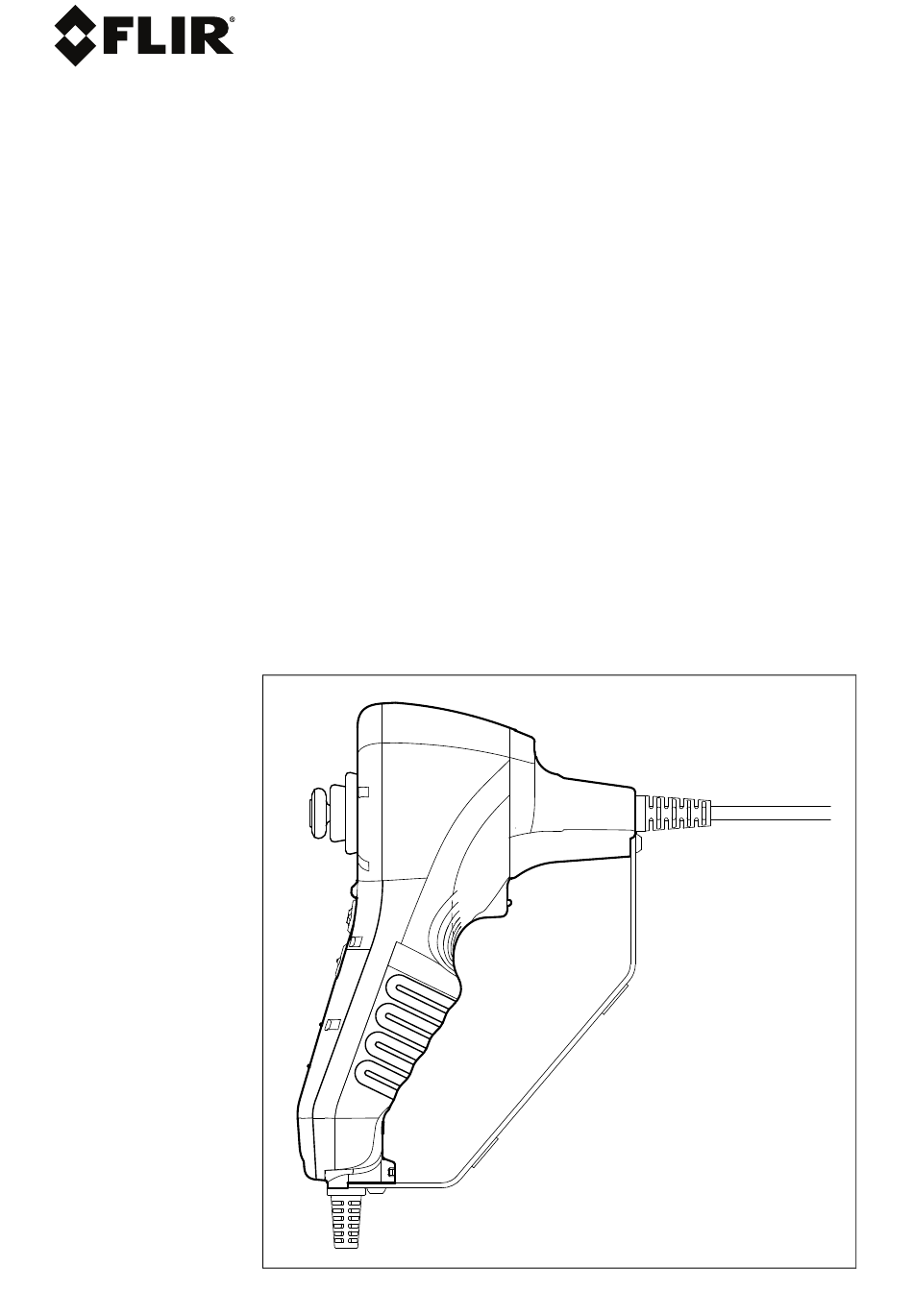

- Page 1 User Manual Four-Way Articulating Camera Probe Model VS80A4-60–2RM...
-
Page 2: Product Description
Introduction Thank you for selecting the FLIR four-way articulating probe. The probe is intended for use with the VS80 High Performance Video- scope. See the VS80 manual for complete instructions for image and video management, image manipulation, Wi-Fi connectivity, split-screen modes, and other features. Obtain the VS80 user man-... - Page 3 Safety Safety Note Please read and understand all safety cautions before use. CAUTION Do not insert the probe into flammable liquid or gas. This product is designed for industrial use only. It is not intended for use in hu- man or other biological inspection. CAUTION To clean the probe, wipe with a soft cloth dampened with a mild detergent and clean water.
-
Page 4: Probe Controls
Connect the Probe to the VS80 Carefully connect the probe to the VS80 monitor as detailed below. Always switch the VS80 power off before connecting the probe. 1. Align the white dot on the probe connector with the white dot on the VS80 monitor connector. - Page 5 The VS80 offers touch-screen and physical control buttons that add more capabilities to your camera probe. Download the VS80 user manual from the FLIR support site for complete details on recording and managing still images and video, Wi-Fi connectivity, split- screen views, additional rotation angles, and more.
- Page 6 Mirror Accessories The mirror adaptors optimize side view and forward view camera images. Use the VS80 touch-screen to switch the views and work- lights as detailed in the VS80 user manual. Notes: Peel off the protective film from the mirror before use. Clean the mirror with a lint-free swab and a high quality lens cleaner.
-
Page 7: Measurement Considerations
• After connecting the probe to the VS80, verify that a clear cam- era image is displayed. If not, remove the probe and reattach it ensuring correct orientation and a tight seal. Contact FLIR sup- port if necessary. • Do not force the probe through an inspection area if resistance is detected. -
Page 8: Specifications
• Coil the probe carefully with as wide an arc as is possible when fitting into its protective case. Specifications Camera Specifications Camera image resolution 640 * 480 pixels Frame rate 30 frames per second (fps) Camera accessories Side view and dual view mirror attachments Probe head and probe body 0.24 in (6 mm) diameter... -
Page 9: Warranty And Support
Warranty and Support Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. CUSTOMER SUPPORT Customer Support Telephone List https://support.flir.com/contact Repair, Calibration, and Technical Support https://support.flir.com #NAS100104; r. AB/83734/84877; en-US... - Page 10 #NAS100104; r. AB/83734/84877; en-US...
- Page 12 Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
