Summary of Contents for FLIR VS80A2-45-1RM

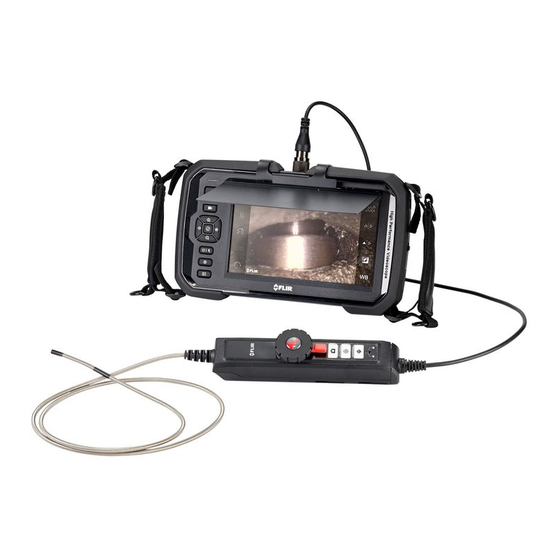

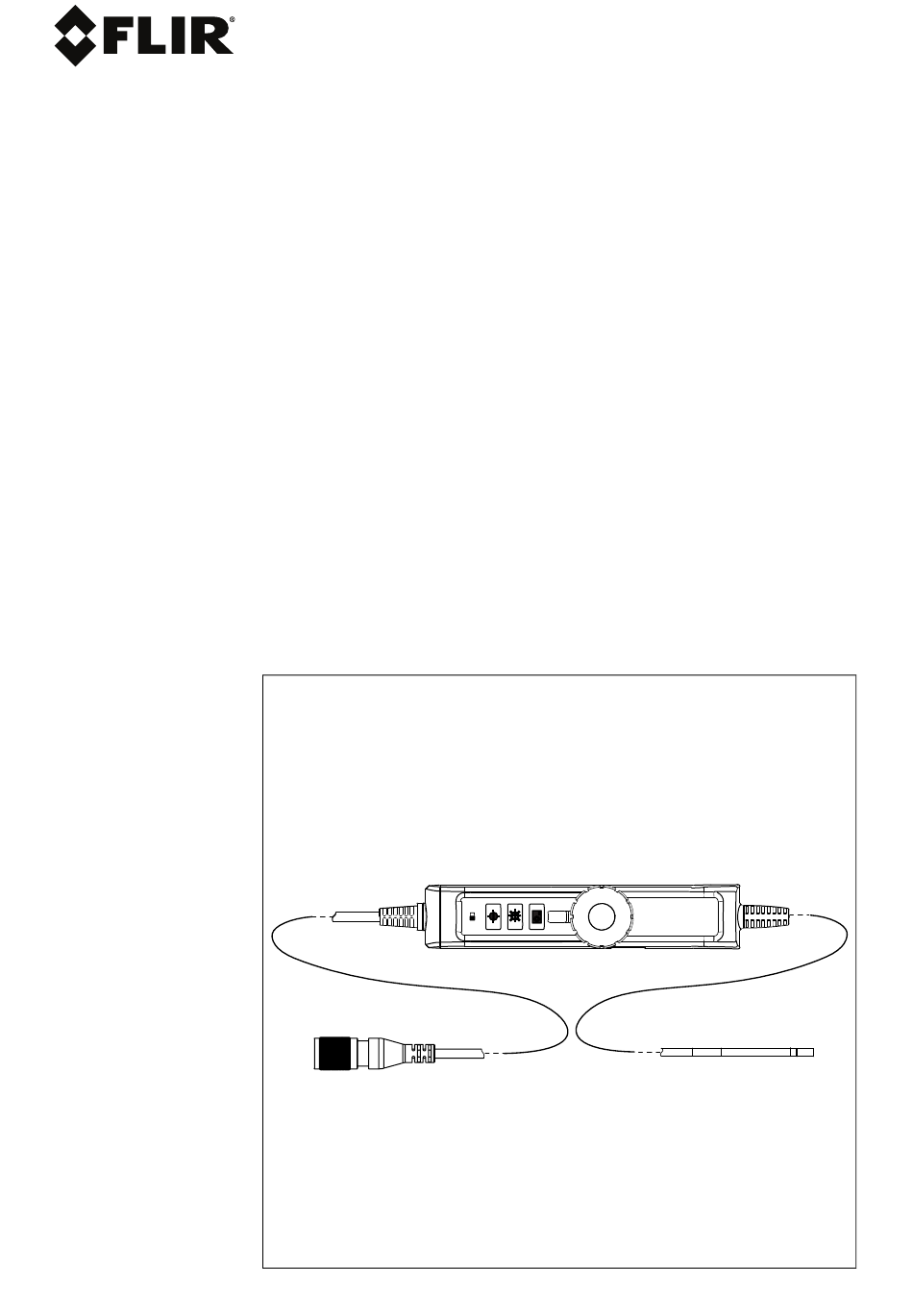

- Page 1 User Manual Two-Way Articulating Camera Probe Model VS80A2–45–1RM...
- Page 2 Introduction Thank you for selecting the FLIR two-way articulation probe. The probe is intended for use with the VS80 High Performance Video- scope system. Obtain the VS80 user manual and additional transla- tions of this user manual on the support site: https://support.flir.com...
-
Page 3: Connecting The Probe
Connecting the Probe The steps below explain how to safely connect the probe to the VS80 monitor. Always turn the VS80 power off before replacing the probe. 1. Align the white dot on the probe connector with the white dot on the monitor connector. - Page 4 Long press to start or stop video recording. Images and videos are stored on the VS80 micro SD card. The VS80 user manual provides detailed information regarding me- dia management. Obtain the user manual from the FLIR support website (see Support section below). Brightness Control Buttons...
- Page 5 CAUTION Do not disassemble the product, damage to the product and electrical shock may occur. Use only recommended components and accessories; unapproved equip- ment may cause damage to the product. Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area. To protect the camera, keep the lens cap, and other supplied protective cover- ings, attached when not in use.
-
Page 6: Specifications
CAUTION Please keep the probe’s alignment as straight as possible while in use. Do not force the control dial when resistance to movement is felt; Damage to the camera can result. Do not allow the probe to forcefully impact an object. Do not put excessive weight on any area of the probe. -
Page 7: Warranty And Support
(3.3 ft) for 30 minutes maximum. In use: rain, splashes, and accidental submersion Warranty and Support Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. Customer Support Customer Support Telephone List: https://support.flir.com/contact... - Page 8 #NAS100102; r. AB/83682/84877; en-US...
- Page 10 Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
