  • Page 1 User’s manual FLIR VP50/VP52 Non-contact AC voltage detector...
  • Page 3 User’s manual FLIR VP50/VP52 #T559851; r. AG/ 10041/10041; en-US...

  • Page 5: Table Of Contents

    FLIR Limited Lifetime Warranty ........

  • Page 7: Disclaimers

    ISO 9001 standard. FLIR Systems is committed to a policy of continuous de- velopment; therefore we reserve the right to make changes and improvements on any of the products with- out prior notice.

  • Page 8: Safety Information

    Remove the batteries if the device is not used for an extended period of time. Note Static electricity and other stray sources of energy can randomly trigger the FLIR VP50/VP52 sensor. This is normal. Random triggering is more likely in high sensitivity mode but certainly can occur in the normal sensitivity mode as well.
  • Page 9 2 Safety information WARNING Make sure that you keep your hands and fingers on the body of the probe and away from the probe tip. There is a risk of electrocution if you do not do this. Injury can occur. WARNING Do not put the unit near high temperatures or in areas of high humidity.
  • Page 10 2 Safety information WARNING Make sure that children cannot touch the device. The device contains danger- ous objects and small parts that children can swallow. If a child swallows an object or a part, speak with a physician immediately. Injury to persons can occur.
  • Page 11 2 Safety information This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation. UL listing is not an indication or a verification of the accuracy of the meter #T559851;...

  • Page 12: Introduction

    The portable, rugged FLIR VP50/VP52 can detect the presence of AC voltage at an electrical outlet, junction strip, circuit, or other device without actually touching the device under test (FLIR VP50: Minimum excitation voltage is 90 V AC; FLIR VP52: Minimum excitation voltage is 190 V AC). The FLIR VP50/VP52 includes a high-sensitivity mode that can be used to detect low-level AC voltage signals down to a minimum of 24 V AC.

  • Page 13: Description

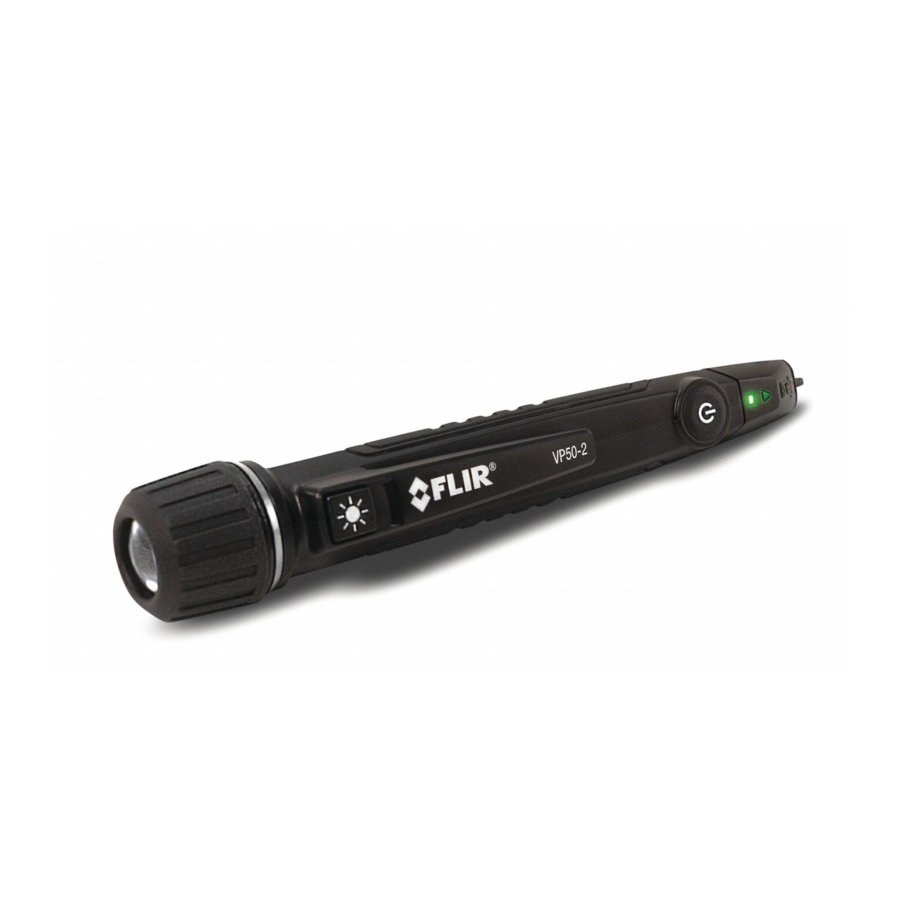

    4 Description 4.1 Meter parts Figure 4.1 Meter parts AC voltage sensor. Tip light. Alarm indicator. Status indicator. Power button. Pocket clip. Work light button. Work light and cover for battery compartment. #T559851; r. AG/ 10041/10041; en-US...

  • Page 14: Operation

    5 Operation Note Do not try to repair this unit. There are no user serviceable parts. WARNING Do not use the instrument before you have done a test of it on a known live cir- cuit. Injury to persons can occur. WARNING Do not try to use the instrument as an AC voltage detector if the batteries are weak or bad.

  • Page 15: Modes

    The excitation voltage required to activate the meter alarm is much lower in High-sensitivity mode. • In Normal mode, the minimum excitation voltage is 90 V AC (FLIR VP50)/190 V AC (FLIR VP52). • In High-sensitivity mode, the minimum excitation voltage is 24 V AC.

  • Page 16: Work Light

    5 Operation Once powered on, press the power button to toggle between High-sensitivity mode and Normal mode. Note Test on a known live circuit before testing on an uncertain circuit. • In Normal mode, the status indicator illuminates a solid green color. •...

  • Page 17: Maintenance

    6 Maintenance 6.1 Cleaning and storage Clean the meter with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for an extended period, remove the batteries and store them separately. 6.2 Battery replacement Switch off the meter before attempting to replace the batteries.

  • Page 18: Technical Specifications

    90 V AC minimum FLIR VP52 excitation voltage 190 V AC minimum Voltage ranges 90 to 1000 V (FLIR VP50) 190 to 1000 V (FLIR VP52) 24 to 1000 V in high sensitivity mode (FLIR VP50 and FLIR VP52) Detection distance...

  • Page 19: Technical Support

    8 Technical support Website http://www.flir.com/test Technical support T&MSupport@flir.com Repairs Repair@flir.com Phone number +1 855-499-3662 (toll-free) #T559851; r. AG/ 10041/10041; en-US...

  • Page 20: Flir Limited Lifetime Warranty

    9 FLIR Limited Lifetime Warranty See http://support.flir.com/warranty for the FLIR Limited Lifetime Warranty that applies to this product. #T559851; r. AG/ 10041/10041; en-US...
  • Page 22 A note on the technical production of this publication This publication was produced using XML — the eXtensible Markup Language. For more information about XML, please visit http://www.w3.org/XML/ A note on the typeface used in this publication This publication was typeset using Linotype Helvetica™ World. Helvetica™ was designed by Max Miedinger (1910–1980) LOEF (List Of Effective Files) T501023.xml;...
  • Page 24 Corporate Headquarters last page FLIR Systems, Inc. 27700 SW Parkway Ave. Wilsonville, OR 97070 Telephone: +1-503-498-3547 Website http://www.flir.com Customer support http://support.flir.com Publ. No.: T559851 Release: Commit: 10041 Head: 10041 Language: en-US Modified: 2013-11-22 Formatted: 2013-12-19...
