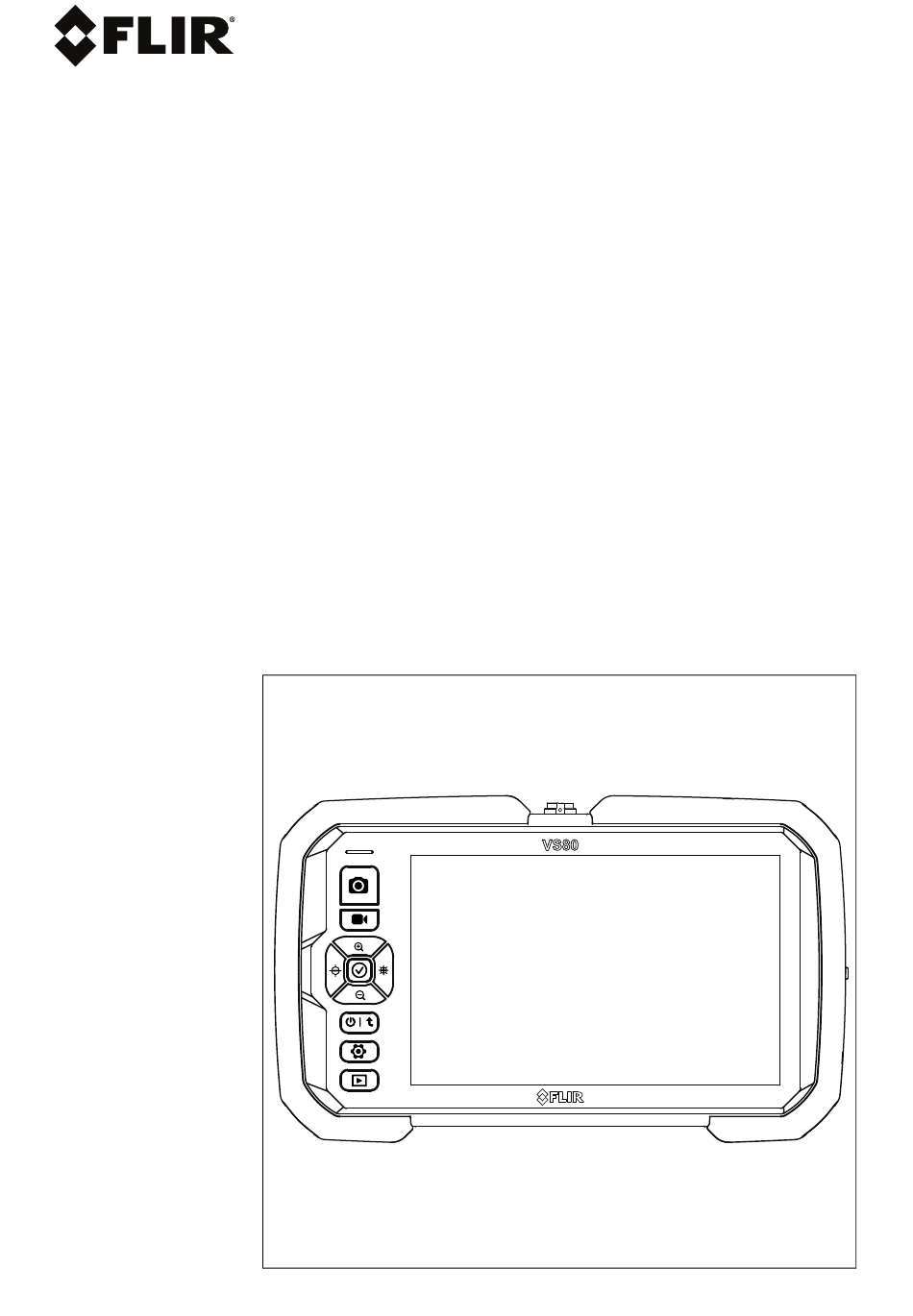

  • Page 1 Quick Start VS80 KIT High Performance Videoscope and Camera Probe...
  • Page 2 Quick Start (en) INTRODUCTION The VS80 kit consists of the main display unit, a camera probe, and accessories. To obtain the comprehensive user manual, additional quick start translations, firmware updates, and customer support, see the Support section. Please upgrade the firmware before use for optimal performance and camera compatibility.
  • Page 3 PRODUCT DESCRIPTION 1. Power status LED 2. Image capture button 3. Video recording start/stop button 4. 1. Full screen view button; 2. Disconnect Wi-Fi 5. Zoom in (navigate upward in touch-screen menus) 6. Zoom out (navigate downward in touch-screen menus) 7.
  • Page 4 SETTINGS MENU Press the Settings button to open or close the menu. The menu has two pages, tap the up/down (∆ ∇) touch-screen arrows to scroll. Tap an item to open it or to enable/disable it. Menu items are briefly described below. For complete information, please refer to the online user manual.
  • Page 5 INFO View firmware version, upgrade firmware, and revert settings to factory default. ASPECT RATIO IR camera only. Toggle 4:3 and 16:9 display formats. DIGITAL CAMERA TOUCH SCREEN ICONS Tap an icon to enable/disable it or to open its submenu. Refer to the probe’s user manual for more information.
  • Page 6 Tap and drag the color bar graph to adjust the set point. CUSTOMER SUPPORT The FLIR support site, address below, is your resource for obtaining firmware upgrade files, latest versions of user manuals, customer service, and other product and accessory information.
  • Page 8 Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
