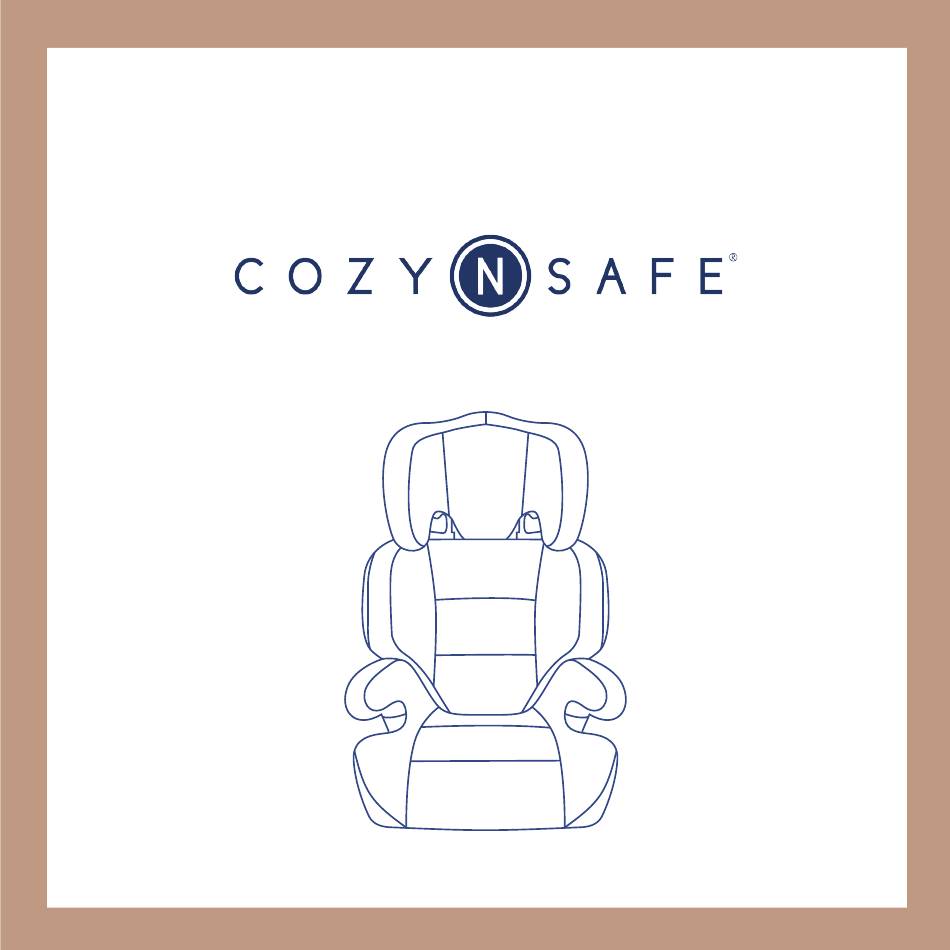

A P A C H E
I N S T R U C T I O N M A N U A L
E S T - 0 9
G r o u p 2 / 3
1 5 k g t o 3 6 k g
( A p p r o x i m a t e l y 4 y e a r s - 1 2 y e a r s )
E C E R 1 6 N o 4 4 . 0 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the EST-09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cozy N Safe EST-09

Summary of Contents for Cozy N Safe EST-09

  • Page 1 A P A C H E I N S T R U C T I O N M A N U A L E S T - 0 9 G r o u p 2 / 3 1 5 k g t o 3 6 k g ( A p p r o x i m a t e l y 4 y e a r s - 1 2 y e a r s ) E C E R 1 6 N o 4 4 .
  • Page 2 E S T - 0 9 C a r S e a t 1. This is a “Universal” child restraint. It is approved to Regulation No.44.04 series of amendments, for general use in vehicles and it will fit most, but not all car seat. 2.
  • Page 3 E S T - 0 9 C a r S e a t Only suitable if the approved vehicles are fitted with 3 point safety belts, approved to UN/ECE Regulation No.16 or other equivalent standards. EXTREME HAZARD Do not use in passenger seats equipped with airbags(SRS)
  • Page 4 S A F E T Y W A R N I N G S...
  • Page 5 E S T - 0 9 C a r S e a t THESE INSTRUCTIONS ARE IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. PLEASE READ THROUGHLY PRIOR TO INSTALLATION AS INCORRECT INSTALLATION COULD BE DANGEROUS. - This child seat should be used for children of 15kgs to 36kgs (approx 4 years to 12 years) (Group 2/3).
  • Page 6 E S T - 0 9 C a r S e a t - Never use the child seat without fastening the vehicle belt correctly correctly and never attempt to use it without fastening into the vehicle. - Do not add to or modify the seat in any way. - Do not leave your child unattended in the seat at any time.
  • Page 7 E S T - 0 9 C a r S e a t - The device should be changed when it has been subject to violent stresses in an accident. - The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by movable seat or in a door of the vehicle.
  • Page 8 E S T - 0 9 C a r S e a t - When the chair is not provided with a textile cover, the chair should be kept away from sunlight, otherwise it may be too hot for the childs skin. - Ensure that children are not left in their child restraint system unattended.
  • Page 9 THE TYPE OF APPROVED SEAT BELT YOU MUST HAVE...
  • Page 10 E S T - 0 9 C a r S e a t WARNING:THE CAR SEAT SHOULD NOT BE FITTED IN A PASSENGER SEAT OF A CAR THAT HAS AN AIRBAG FITTED.(SRS) Your child seat can only be installed forward facing using a three-point lap and DIAGONAL BELT diagonal seat belt in the...
  • Page 11 CHILD CAR SEAT PARTS...
  • Page 12 E S T - 0 9 C a r S e a t Headrest Backrest Booster seat Button (headrest height adjustment) Instructions for use Joint...
  • Page 13 ATTACHING THE BACKREST...
  • Page 14 E S T - 0 9 C a r S e a t The child seat is composed of a seat cushion and a backrest with an adjustable headrest. Instructions for use - Place the backrest flat behind the seat cushion (A). - Insert into the seat joint.
  • Page 15 E S T - 0 9 C a r S e a t...

  • Page 16: Headrest Height

    ADJUSTING THE HEADREST HEIGHT...
  • Page 17 E S T - 0 9 C a r S e a t 15-25kg Group 2 According to the child's height, the headrest can be adjusted up and down. Step 1. Put your left (or right) hand on the backrest. Step 2.
  • Page 18 FITTING THE CAR SEAT...
  • Page 19 E S T - 0 9 C a r S e a t FITTING THE CAR SEAT USING THE BELT GUIDE Step 1. Place the safety seat on the vehicle’s seat ensuring it is firmly pressed against the car backrest. Step 2.
  • Page 20 E S T - 0 9 C a r S e a t Step 3. Fasten the seat belt, making sure that both sections of the seat belt webbing goes under the armrest, the diagonal belt goes through on the top of the armrest, then feed it through the red belt guide on the side of the headrest but not through the belt guide hook.
  • Page 21 E S T - 0 9 C a r S e a t BOOSTER SEAT 22-36kg Group 3 IMPORTANT:Remove the seat backrest...
  • Page 22 E S T - 0 9 C a r S e a t FITTING THE CAR SEAT USING THE BELT GUIDE Step 1. Place the booster on the seat of the vehicle ensuring it is firmly against the vehicles seat and back rest. Step 2.
  • Page 23 E S T - 0 9 C a r S e a t Step 3. Fasten the seat belt, making sure that the lap belt webbing goes under both armrest and diagonal belt webbing goes through on the top of the armrest. Check the webbing has not become twisted then tighten the seat belt by pulling upwards on the diagonal strap.
  • Page 24 E S T - 0 9 C a r S e a t DAILY CARING INSTRUCTIONS 1. Remove/replacing the cover Undo the elastic of the car seat, remove the cover directly off the seat where as you can put on the cover. 2.

  • Page 25: Procedure After An Accident

    E S T - 0 9 C a r S e a t PROCEDURE AFTER AN ACCIDENT 1. The child car seat must be replaced when it has been subjected to violent stresses in an accident. 2. Correctly install the child car seat according to the instruction manual.
  • Page 26 w w w . c o z y n s a f e . c o m C o z y N S a f e O x f o rd S t r e e t , W o l v e r h a m p t o n , W e s t M i d l a n d s , W V 1 4 7 D P , U .
