C H I L D I N F O R M A T I O N
( K E E P W I T H C A R S E A T A T A L L T I M E S I N C A S E O F E M E R G E N C Y )
NAME:
.................................................................................................................................................................................................................................
D A T E O F B I R T H ( D D / M M / Y Y Y Y ) :
.................................................................................................................................................................................................................................
A D D R E S S :
.................................................................................................................................................................................................................................
.................................................................................................................................................................................................................................
A L L E R G I E S / M E D I C A L C O N D I T I O N S :
.................................................................................................................................................................................................................................
.................................................................................................................................................................................................................................
E M E R G E N C Y C O N T A C T 2 :
NAME
. . . . .. . . . . . . .. . . . ... ..............................................................................................................................
P H O N E N U M B E R
:
. . . . .. . . . . . . .. . . . ... ..............................................................................................................................
Cozy N Safe, Oxford Street, Wolverhampton, West Midlands, WV14 7DP, UK
Tel: +44 (0) 1902 494905, E-Mail: enq@cozynsafe.com, Web: www.cozynsafe.com
Without Compromise...
E M E R G E N C Y C O N T A C T 2 :
NAME
... . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ...................
P H O N E N U M B E R
:
... . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ...................
Without Compromise...

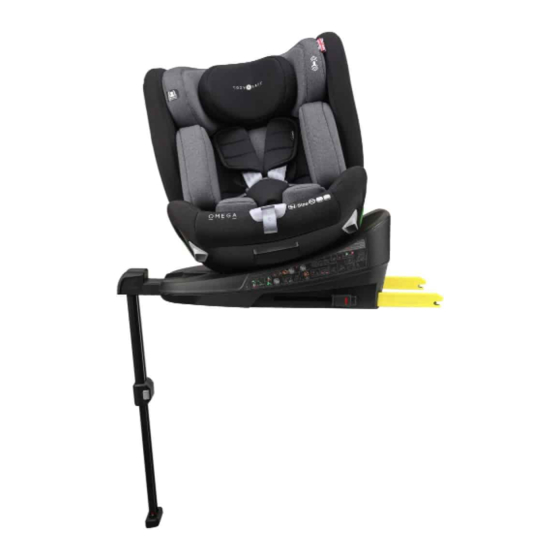

O M E G A i - S i z e
EST-03
manual instruction
Suitable For Children
40-150cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EST-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cozy N Safe EST-03

  • Page 1 ..............................Suitable For Children Cozy N Safe, Oxford Street, Wolverhampton, West Midlands, WV14 7DP, UK 40-150cm...
  • Page 2: Table Of Contents

    Contents Contents 1. Contents ......................01-02 Installation instruction for Stature 40-105cm,Rearward facing , ISOFIX + Support Leg + harness ............... 19-24 2. Introduction ....................03-07 3. Know your car seat ..................08-09 Installation instruction for Stature 76- 105cm,Forward facing , 4. Car seat version .....................10-11 ISOFIX + Support Leg + harness ................
  • Page 3 Introduc�on Dear Parents : WARNING Thank you very much for purchasing our product. Read this instruc�on manual carefully. The func�ons and design of this car seat offer safety and comfort when your child is in this child The correct fi�ng of the ISOFIX and support leg anchoring systems is of vital importance for the safety of your child.
  • Page 4 The product has been approved according to the strictest European safety standards(R129/03) The baby car seat must not be used without the cover. Please use an original cover, as the and is for stature 40-105cm, Rearward facing, ISOFIX+Support Leg+Harness and is for stature cover contributes to the safety of the seat.
  • Page 5: Know Your Car Seat

    Know your car seat Any straps holding the restraint to the vehicle should be �ght, that any straps restraining the Headrest Adjus�ng Loop child should be adjusted to the child’ s body, and that straps should not be twisted. 02. Cover Ensuring that any lap strap is worn low down, so the pelvis is firmly engaged.
  • Page 6: Car Seat Version

    40-105cm Rearward + harness 16. ISOFIX Release Bu�on I-SIZE ISOFIX + Support Leg 17. Support Leg 76-105cm Forward + harness EST-03 18. ISOFIX Guide Cover Vehicle 3point belt + ISOFIX a�achment I-SIZE 100-150cm Forward Booster seat Vehicle 3 point belt...
  • Page 7: Use In The Vehicle

    Please read the instruc�ons carefully and keep safely for future Rearward Forward Forward Stature reference. There is an instruc�ons compartment in the back of the child EST-03 40-105cm 76-105cm 100-150cm car seat for storage of the instruc�ons manual. ECE= European Standard for Safety Equipment The child safety seat has been designed, tested and cer�fied according to the requirements of...
  • Page 8: Securing Your Baby

    Securing your baby Using Baby Insert Harness system & Headrest adjustment CAUTION If your baby’s stature is ≤75cm,please install the Inner cushion+Head cushion on baby car seat. If your baby’s stature is 75<x≤150cm,Please take out the Inner cushion+Head cushion on baby car seat.
  • Page 9: Removing The 5-Point Harness System

    Removing the 5-point harness system Find the metal plate of buckle latches under the memory foam, guide the metal plate through the slot and grasp Loosen the 5-point harness of the child seat as much as possible by pressing the harness adjus�ng bu�on and it from the hole underneath the seat base to remove one side of harness strap;...
  • Page 10 Installa�on in the vehicle change the reclining posi�ons Open support leg/Retract support leg There are 5 recline posi�ons of this product. To change the posi�on,grasp the lever at the front of the seat, First, remove the suppor�ng leg from the bo�om of the seat. When the suppor�ng leg is rotated outward push or pull the seat into the desire posi�on un�l you hear an audible sound “click”.
  • Page 11 Installa�on instruc�on for STATURE 40-105cm,Rearward facing , ISOFIX + Support Leg + harness Unfold support leg un�l it locks in place. Press the lSOFIX release bu�on to slide the lSOFIX connectors Grasp the seat body to check the seat if it is fastened �ghtly or shakes , meanwhile observe the ISOFIX red/ to the end.
  • Page 12 Pullout the rota�ng bu�on, adjust the seat to sideward facing posi�on allow access for placing a child on Loosen the shoulder straps by pressing the harness adjus�ng bu�on and pull the harness shoulder as far the seat. forward as possible. CAUTION Open the buckle by pressing the red bu�on, then fix the shoulder straps at the sides of the car seat.
  • Page 13 Tighten the harness adjus�ng strap and make sure the harness is reasonably �ght. lt should restrain but not Place child in the car seat. make the child uncomfortable. Please note a correctly adjust headrest ensures op�mal protec�on for your child in the safety seat; the CAUTION headrest must be adjusted so that the shoulder straps are at the same level as your child's shoulders or Please ensure that the lap strap is worn low down, so that the pelvis is firmly engaged.
  • Page 14 Installa�on instruc�on for Stature 76-105cm,Forward facing , lSOFIX + Support Leg + harness Unfold support leg un�l it locks in place. Press the lSOFIX release bu�on to slide the lSOFIx connectors to Grasp the seat body to check the seat if it is fastened �ghtly or shakes , meanwhile observe the ISOFIX red/ the end.
  • Page 15 Pullout the rota�ng bu�on, adjust the seat to sideward facing posi�on allow access for placing a child on Loosen the shoulder straps by pressing the harness adjus�ng bu�on and pull the harness shoulder as far the seat. forward as possible. CAUTION Open the buckle by pressing the red bu�on, then fix the shoulder straps at the sides of the car seat.
  • Page 16 Tighten the harness adjus�ng strap and make sure the harness is reasonably �ght. lt should restrain but not Place child in the car seat. make the child uncomfortable. Please note a correctly adjust headrest ensures op�mal protec�on for your child in the safety seat; the CAUTION headrest must be adjusted so that the shoulder straps are at the same level as your child's shoulders or Please ensure that the lap strap is worn low down, so that the pelvis is firmly engaged.
  • Page 17 Installa�on instruc�on for Stature 100-150cm,Forwardfacing,ISOFIX a�achment+Vehicle 3 point belt. Unfold the support leg un�l it hides in place. Press the lSOFIX release bu�on to slide the lSOFIx connectors to Grasp the seat body to check the seat if it is fastened �ghtly or shakes , meanwhile observe the ISOFIX red/ the end.
  • Page 18 Installa�on instruc�on for Stature 100-150cm, Forwardfacing, Vehicle 3 point belt. Adjust the height of the headrest to suit your child. Put the vehicle belt through the belt guide. Place your Adjust the height of the headrest to suit your child. Put the vehicle belt through the belt guide. Place your child into the baby car seat and let the vehicle belt pass the belt guide.
  • Page 19: Maintenance

    Service Maintenance Repair condition. 1. Washing Repair service is according to normal opera�on. Under the quality problems by produc�on, The covers and the shoulder pads can be removed for washing under 30℃ clean water; we can supply the following service: Clean the shell using a damp cloth.
  • Page 20 No�ce This is an "I-Size" Child Restraint System. lt is approved to Regula�on No.129, for use in,"I-Size compa�ble" vehicle sea�ng posi�ons as indicated by vehicle manufacturers in the vehicle users' manual. lf in doubt, consult either the child restraint manufacturer or the retailer. No�ce This is a l-Size booster seat Enhanced Child Restraint System .lt s pproved according to UN Regula�on No.129,for use primarily in"l-Size sea�ng posi�ons"...
