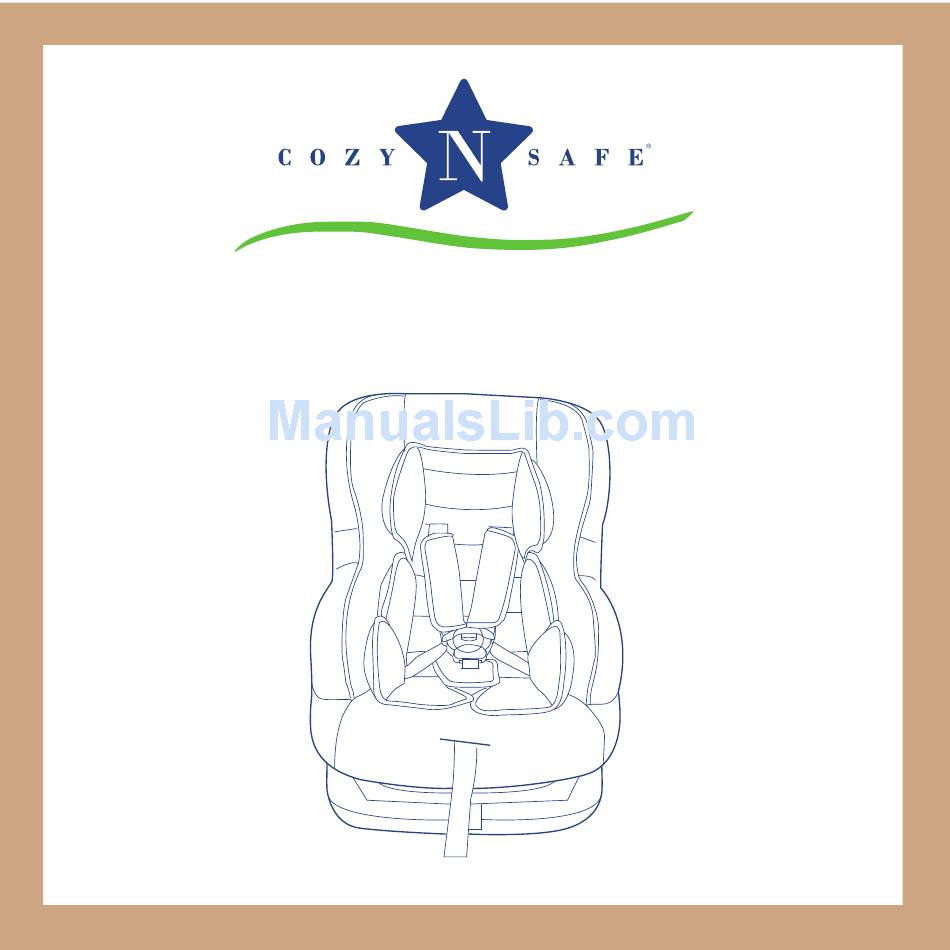

- Page 1 Instruction Manual SI N AI EST-586 Group 0+/1 Birth to 18kg (Approximately Birth to 4 years) ECE R 16 No 44. 0 4...
- Page 2 GROUP 0+, 1 FITS CHILDREN LESS THAN 18KG No child restraint can guarantee absolute protection from injury in every crash. However to ensure that your child gets all the protection designed into the restraint, please read and follow this manual exactly.
-
Page 3: Important Tips
EST-586 Car Seat IMPORTANT TIPS DO NOT USE THIS CHILD SEAT IN PASSENGER SEATS EQUIPPED WITH AIRBAGS 1. These fitting instructions should be safely stored in a place where they can be easily found. Keep it for future reference. 2. This child seat can be used with the harness for children less than 18 kg in weight (group 0, 1) 3. - Page 4 EST-586 Car Seat 5. Do not use this child seat in the home. It has not been designed for home use and should only be used in your car. 6. The safest seating position for this child car seat is on the rear seat of a vehicle.
- Page 5 EST-586 Car Seat 10. The seat should be kept away from sunlight if the seat is not provided with a textile, otherwise it may be too hot for the child's skin. 11. In the event of an emergency it is important that the child can be released quickly.
- Page 6 EST-586 Car Seat during everyday use of the vehicle by becoming trapped by a moveable seat or in a door of the vehicle. 15. Always make sure that any straps holding the seat restraint to the vehicle are tight, any straps restraining the child should be adjusted to the childs body and check that the straps are not be twisted.
- Page 7 EST-586 Car Seat 20. Store this child seat in a safe place when it is not being used. Avoid placing heavy objects on top of it. Do not allow your child seat to come into contact with corrosive substances e. g. battary acid.
-
Page 8: Legal Requirements
EST-586 Car Seat Legal requirements 1. This is a “Universal” child restraint, it is approved to Regulation No 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “Universal”... - Page 9 EST-586 Car Seat Legal requirements 4. If in doubt, consult either the child restraint manufacturer or the retailer. Only suitable if the vehicle is fitted with 3-point safety belts, Approved to UN/ECE Regulation No.16 or other equivalent standards.
-
Page 10: Special Features
EST-586 Car Seat SPECIAL FEATURES... - Page 11 EST-586 Car Seat SPECIAL FEATURES 1. Shoulder straps slots 2. Harnesses cover 3. Safety harness belt 4. Buckle 5. Adjustment plate of seat angle(lever) 6. Adjustment belt 7. Seat fabric belt 8. Metal safety pole ring buckle 9. Metal safety pole 10.
- Page 12 EST-586 Car Seat INSTALLATION OF THE SEAT IN THE CAR Only suitable if the approved vehicles are fitted with 3 point safety-belts, approved to UN/ECE Regulation No.16 or other equivalent standards.
-
Page 13: Recline Position Adjustment
EST-586 Car Seat RECLINE POSITION ADJUSTMENT To achieve that, use the lever located in fornt of the child restraint between the sitting part and the base to adjust thr desire position. Pull up the lever and hold it, at the same time pull back or forward the sitting... - Page 14 EST-586 Car Seat RECLINE POSITION ADJUSTMENT The following image shows recline positions The following picture shows base support recline festure in rearward facing positions...
-
Page 15: Installation In The Car
EST-586 Car Seat INSTALLATION IN THE CAR Important: Children safety seat must be used on the right seat of the car. - Page 16 EST-586 Car Seat ROUTING OF THE SEAT BELT 1. For group 0+ (less than 13kg) use, place the car seat in rearward facing position on the seat of the car, And make sure to use red clip. 2. For group 1 (9-18kg) use, place the car seat in forward facing position on the seat of the car, And make sure to use red clip.
- Page 17 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group0+ rearward facing...
- Page 18 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group0+ rearward facing Fitting method for rearward facing: Open the base support and adjust the car seat to the highest angle of inclination. Place the child seat in rearward facing position on the seat of the car. Pull the vehicle seat belt to the front space of child seat between child restraint sitting part and child restraint base.
- Page 19 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group0+ rearward facing Insert the lap and diagonal belt into the car buckle (see figII) until fasten until you heard “click”. Fasten the seat belt and pull it tight. Insert the vehicle seatbelt through the...
- Page 20 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group1 Forward facing...
- Page 21 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group1 Forward facing Important: when you finish the installation, please lock the vehicle belt with the red clip. Fitting method for forward facing: Place the car seat in forward facing position on the seat of the car. Pull the...
- Page 22 EST-586 Car Seat INSTALLATION METHODS FOR CHILD SAFETY SEAT Group1 Forward facing and feed the diagonal portion of seatbelt through the iron belt lock which at the tow sides of the sitting part (see fig IV), Fasten the seatbelt and pull it tight. Insert the vehicle seatbelt through the red clip and close it tightly.
- Page 23 EST-586 Car Seat Locking & unlocking the harness...
- Page 24 EST-586 Car Seat Locking & unlocking the harness 1. Join the two metal tongues of the harness buckle together and insert into the central buckle until you hear a click. Note: when a child is sitting in the child restraint, you must often check that the buckle remains secure.
- Page 25 EST-586 Car Seat Adjust the length of harness After seating your child in the child restraint and securing them in the harness tighten the straps until they are flat against the child's body. Ensure that your child is secure and comfortable, make sure that there are no twists in the harness.
- Page 26 EST-586 Car Seat Adjust the length of harness To loosen the harness, Press the harness release button (located between the child's legs). Then pull both harness straps simultaneously in the direction away from the seat. Note: hold harnesses and not harness covers.
- Page 27 EST-586 Car Seat ADJUST THE HEIGHT OF HARNESS Thereare 3 harness positions available, you can select according to child’s height. For group 1, the mounting height of the harnesses should be adjusted to the child’s height, so that child’s shoulder would...
- Page 28 EST-586 Car Seat ADJUST THE HEIGHT OF HARNESS 1. Remove the locking clip from the end of the harness located on the right side under the child restraint. 2. Thread the end of the belt through the lower opening on the side of the sitting part.
- Page 29 EST-586 Car Seat Removal of car seat cover 1. To remove the child restraint cover, please do the same operation described in page 27 (changing the height of harnesses). 2. Release the crotch harness and slide it through the strap slot in the cover, Remove the cover.
-
Page 30: Washing Instruction
EST-586 Car Seat WASHING INSTRUCTION 1. The cover may only be hand washed at a temperature below 30 degrees Cecilius. Only use soft detergents, do not bleach, do not spin-wash and do not dry in a drier. 2. A part of the car seat is made of plastic and it can be cleaned using slightly warm water with soap. - Page 31 Oxford Street, Wolverhampton, West Midlands, W V14 7DP, UK Email: enq@cozynsafe. c om...
