EST308

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APOLLO EST308 and is the answer not in the manual?

Questions and answers

Related Manuals for Cozy N Safe APOLLO EST308

Summary of Contents for Cozy N Safe APOLLO EST308

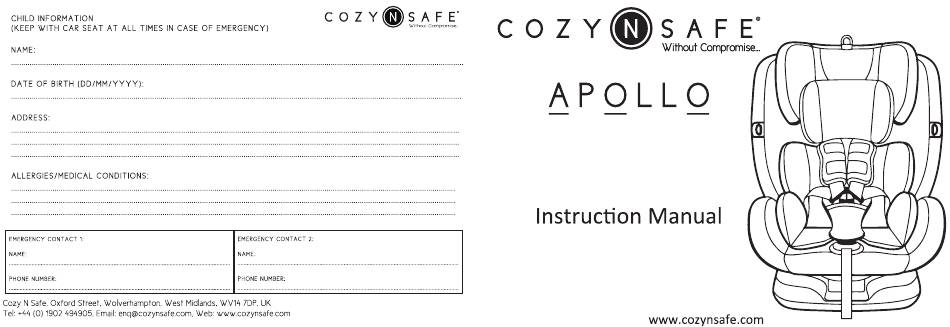

  • Page 1 EST308...

  • Page 2: Table Of Contents

    3. Pre-installation preparation / Features 3.1 ISOFIX Thank you for purchasing the Cozy N Safe Apollo car seat! We couldn’t be more thrilled to be 3.2 Headrest adjustment when using 5-points harness part of your journey with your little one.

  • Page 3: Notice

    3. It is certified that this seat complies with ECE R/44 regulations and can be installed on most vehicles that comply with ECE R/16 or other equivalent standards. 4. For your child's safety, please read the instructions carefully. Failure to use this child car seat correctly increases the risk of serious injury or death 4.1 The 5-point harness can be used for children weighing up to 18kg (approximately 4 years old).

  • Page 4: Position In Vehicle

    Products without certification and modified products are dangerous, and it is also dangerous if there are no installation instructions provided by the manufacturer. If the adult seat belt interferes with the position of the main load bearing point of the child restraint system, it cannot be used. If you have any questions about this, please contact the manufacturer of the child restraint system.
  • Page 5 Rearward facing Forward facing ① DIAGONAL BELT ② LAP BELT Danger! When the child seat is installed in a rear facing position, being hit by the air bag, may cause injury or even death of the child. Under no circumstances can this child safety seat be used on a car seat with an airbag activated.

  • Page 6: Pre-Installation Preparation / Features

    ISOFIX Pre-Installation Preparation / Features (Figure 3.1.1 ) (Figure 3.1.2 ) 2. Press the ISOFIX release button (13) and If your vehicle is not equipped with ISOFIX guides, extend it out to its’ furthest point. please insert the two ISOFIX guides (02) included (Figure 3.1.2) with this child safety seat on to the ISOFIX contact point (01)

  • Page 7: Headrest Adjustment When Using 5-Points Harness (Group 0+/1)

    Headrest adjustment when using 5-point harness (Group 0+/1) Headrest adjustment when using 3-point belt (Group 2/3) (Figure 3.3.1) (Figure 3.3.2) (Figure 3.2.1) (Figure 3.2.2) 2. Pull up the headrest adjustment ring 2. The headrest (08) must be 1. Press the Harness Release (04) and 1.

  • Page 8: Recline Adjustment And Rotation

    Recline adjustment and rotation Rearward Facing Installation Instructions (F ig u r e 3 .4 .1) (F ig u r e 3 .4 .2) (F ig u r e 3 .4 .3 ) 1. Pull the recline/rotation handle (10) in the direction of the arrow. 1.

  • Page 9: Group 0+/1 (0-18Kg ) Isofix+Top Tether Using 5-Point Harness

    Group 0+/1 (0-18kg ) ISOFIX+Top tether Using 5-point harness Please refer to chapter 3.1 to prepare the ISOFIX. Please refer to chapter 3.2 to adjust the 5-point harness Please refer to chapter 3.4 to place the seat in recline position 1. When using the car seat for group 0+ the seat should be rear facing.
  • Page 10 Group 0+/1 0-18kg 3 point belt + 5 point harness (Figure 4.1.5) (Figure 4.1.6) (Figure 4.1.7 ) 4. Feed the top tether belt into one 6. Pull the free end of the top 1. Adjust the seat recline to position 1 and place 2.
  • Page 11 (Figure 4.1.9) (F ig u r e 4 .1 .1 0 ) (F ig u r e 4 .1 .1 1 ) 1. To use the 5-point harness, 2. Make sure that the child's back rests flat 3. Pull the harness adjustment belt (21) press the button to open the on the car seat.

  • Page 12: Forward Facing Installation Instructions

    Forward Facing Installation Instructions (F ig u r e 4 .1 .1 2 ) (F ig u r e 4 .1 .1 3 ) (F ig u r e 4 .1 .1 4 ) In order to ensure the safety of your child, please check the following items after each installation: 1.
  • Page 13 5.1-1 Group I (9-18kg) 3-point seat belt using 5-point harness Please make sure that the 5-point harness is correctly installed on the child safety seat and not twisted. Please refer to chapter 3.2 to adjust the 5-point harness. Please refer to chapter 3.4 to adjust the recline position and that it is locked in position. Please refer to chapter 3.5 to rotate the car seat to a forward facing position.
  • Page 14 (Figure 5.1.6) (Figure 5.1.7) (Figure 5.1.8) (Figure 5.1.9) (Figure 5.1.10) (Figure 5.1.11) 1. To use the 5-point harness, 2. Make sure that the child's back rests flat 3. Pull the harness adjustment belt (21) press the button to open the on the car seat.

  • Page 15: Group 1 (9-18Kg) Isofix+ 3-Point Seat Belt

    5.1-2 Group 1 (9-18kg) ISOFIX+ 3-point seat belt using 5-point harness Please make sure that the 5-point harness is correctly installed on the child safety seat and not twisted. Please refer to chapter 3.2 to adjust the 5-point harness. Please refer to chapter 3.4 to adjust the recline position and ensure that it is locked in position. Please refer to chapter 3.5 to rotate the car seat to a forward facing position.
  • Page 16 (Figure 5.1.7 ) (Figure 5.1.6 ) (Figure 5.1.8) (Figure 5.1.9) (Figure 5.1.10) (Figure 5.1.11) 1. To use the 5-point harness, 2. Make sure that the child's back rests flat 3. Pull the harness adjustment belt (21) In order to ensure the safety of your child, please check the following items after each installation: press the button to open the on the car seat.

  • Page 17: Group 2/3 (15-36Kg) 3-Point Seat Belt

    5.2-1 Group 2/3 (15-36kg) 3-point seat belt Place the other side of the lap part of the vehicle belt (26) in the belt guide groove (28) on the other side of the child car seat. (Figure 5.2.3) Feed the diagonal part of the vehicle seat belt (29) into the belt guide of the headrest (30) and ensure that the vehicle seat belt is not twisted.

  • Page 18: Group 2/3 (15-36Kg) 3-Point Seat Belt + Isofix

    5.2-2 Group 2/3 (15-36kg) 3-point seat belt + ISOFIX Place the other side of lap part of the belt (26) in the belt guide groove (28) on the other side of the child car seat. (Figure 5.2.4) Feed the diagonal part of the vehicle seat belt (29) into the belt guide of the headrest (30) and ensure that the vehicle seat belt is not twisted.

  • Page 19: Removing The Car Seat From Your Vehicle

    Removing The Car Seat From Your Vehicle Cleaning The Covers The cloth cover of the child safety seat can be Press the ISOFIX release button to unlock the ISOFIX. When the removed and washed. Disassembly of the cloth safety indicator turns from green to red, it means that the cover: ISOFIX is disconnected from the vehicle.
