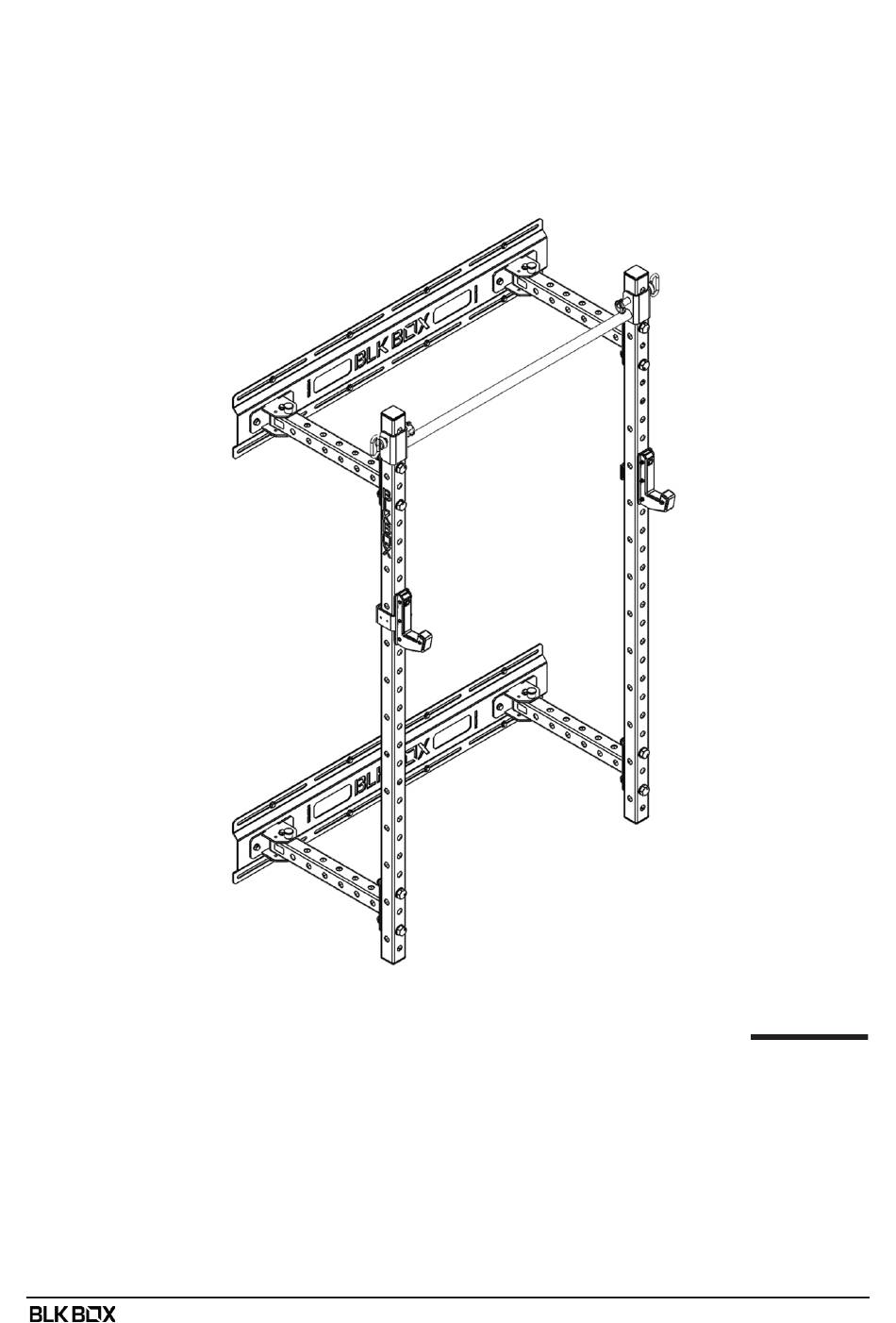

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
BINARY RACK
21-0549-0A
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
628mm x 1450mm x 2212mm
-
2128mm x 2950mm x 3076mm
#MADEINBELFAST
65kg
125kg
1
200kg
Advertisement
Related Manuals for BLK BOX BINARY RACK
Summary of Contents for BLK BOX BINARY RACK
- Page 1 BLK BOX BINARY RACK 21-0549-0A PRODUCT SPECIFICATION PRODUCT WEIGHT 65kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 200kg DIMENSIONS 628mm x 1450mm x 2212mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 PARTS & ATTACHMENTS #MADEINBELFAST...
- Page 4 ASSEMBLY PLACE THE WM STRINGER (20-0350-0A) IN A VERTICAL POSITION AGAINST THE WALL , PERPENDICULAR TO THE FLOOR. MARK THE LOCATION OF THE INDICATOR ON THE WALL, USING THE POINT IN THE CENTRE AS A GUIDE. #MADEINBELFAST...
- Page 5 MOVE THE STRINGER 1200MM LEFT/RIGHT AND REPEAT STEP 1. 1200 MM #MADEINBELFAST...
- Page 6 MARK OUT THE REST OF THE HOLES USING THE GUIDE BELOW. #MADEINBELFAST...
- Page 7 CHECK THAT THE STRINGERS ARE LEVEL AND ALIGN WITH THE HOLES THAT HAVE BEEN MARKED OUT. DRILL 10MM HOLES, 90MM DEEP. VACUUM OUT THE DUST #MADEINBELFAST...
- Page 8 BOLT 4QTY HINGE BRACKET (21-0552-0B) TO 2QTY WM STRINGER WITH BOLTS ASSEMBLY AS SHOWN. 10-0019 x 2 10-0024 x 2 10-0031 x 2 10-0019 x 2 #MADEINBELFAST...
- Page 9 SECURE STRINGERS TO THE WALL USING 16QTY M10 SLEEVE ANCHOR BOLTS (10-0031) AND THE PREDRILLED HOLES. #MADEINBELFAST...
- Page 10 BOLT 4QTY FOLDING RACK BOX CM (21-0551-0A) TO 2QTY UPRIGHT (21-0557-0A). 10-0023 x 2 10-0028 x 2 10-0134 x 2 10-0023 x 2 10-0023 x 2 10-0028 x 2 10-0134 x 2 10-0023 x 2 #MADEINBELFAST...
- Page 11 ENSURE THE LOGO ON UPRIGHTS ARE FACING OUTWARDS AND ALL BOLTS FACING INWARDS. 10-0023 x 2 10-0028 x 2 10-0134 x 2 10-0023 x 2 #MADEINBELFAST...
- Page 12 BOLT 4QTY BOX CM (21-0551-0A) TO 4QTY HINGE BRACKETS (21-0552-0A). 10-0067 x 1 10-0019 x 1 10-0019 x 1 10-0024 x 1 #MADEINBELFAST...
- Page 13 ATTACH 1QTY PULL UP BAR (21-0553-0B) WITH 2QTY UPRIGHTS USING 2QTY HITCH PINS (16-0004) #MADEINBELFAST...
- Page 14 LOCK UPRIGHTS IN FORWARD FACING POSITION USING 4QTY MAGNETIC LOCATING PINS (10-0160) #MADEINBELFAST...
- Page 15 TO FOLD, TAKE OUT 4QTY MAGNETIC PINS AND REMOVE THE PULL UP BAR. FOLD UPRIGHTS INTO WALL. LOCK IN THE UPRIGHTS WITH THE 4QTY MAGNETIC PINS AND ATTACH THE PULL UP CROSSMEMBER TO ONE OF THE BOX CM. #MADEINBELFAST...
- Page 16 #MADEINBELFAST...
- Page 17 #MADEINBELFAST...
- Page 18 1:1 SCALE FASTENERS M20 x 100 HEX HEAD BOLT 10-0134 M10 x 100 HEX HEAD BOLT 10-0067 M10 x 30 HEX HEAD BOLT 10-0001 M10 SLEEVE ANCHOR BOLT 10-0031 #MADEINBELFAST...
- Page 19 M20 WASHER M20 NYLOC NUT 10-0023 10-0028 M10 WASHER M10 NYLOC NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 20 THIS IS A BLANK PAGE #MADEINBELFAST...
