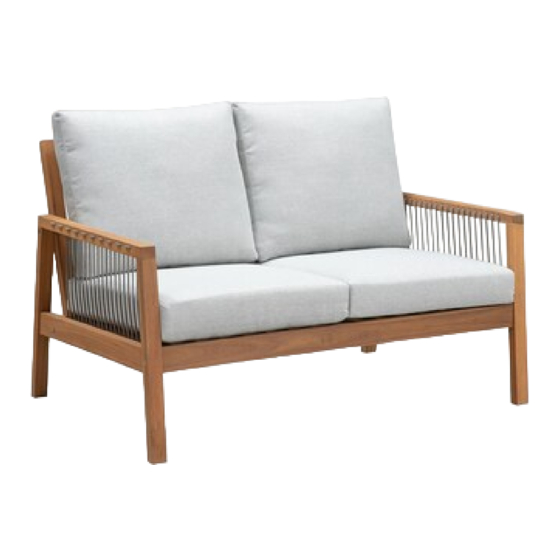

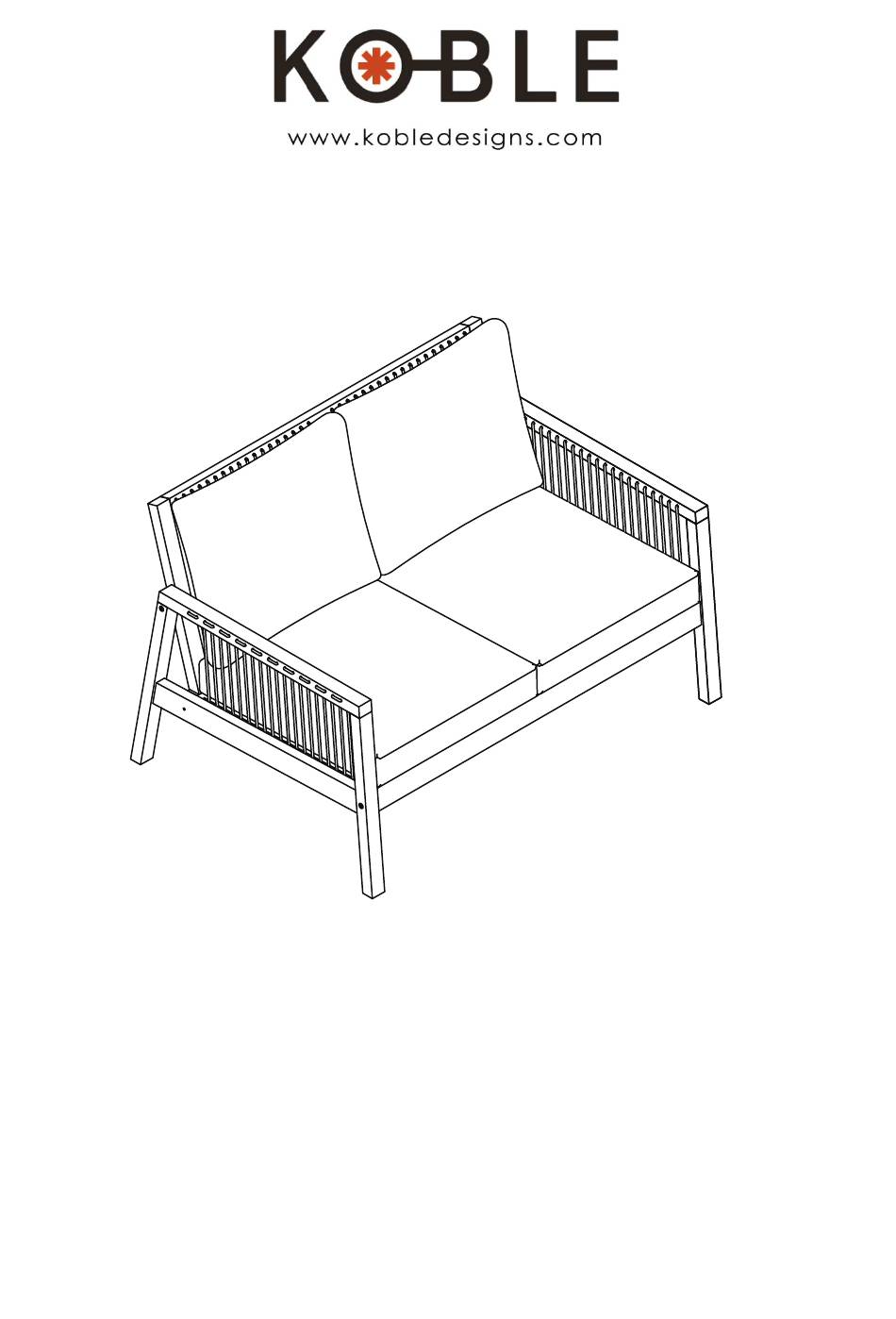

- Page 1 Bahamas 2 seater Care & Instruction Manual Please read and retain these instructions for future reference STOCK CODES : GFBAH2 Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP. Issue 1 - 31/01/22...
- Page 2 Safety and Care Advice Check you have all the Dispose of all packaging carefully Assemble on a soft level components and tools listed on and responsibly. surface to avoid damaging the pages 3 and 4. unit or your floor. Place product on an even surface Remove all fittings from the Assembly requires 2 people.
- Page 3 Front Crossbar Qty 1 (70x37 (1200x37 Leg Frame (Left) Qty 1 (585x83 mm) ( 880x83 Leg Frame (Right) Qty 1 (585x83 mm) ( 880x83 Back Cushion Qty 2 (510 x 590 x 150mm) Seat Cushion Qty 2 (650 x 590 x 100mm) Backrest Frame Qty 1 1215x75 mm) ( 608x75...
- Page 4 Fixings, Fittings And Tools 70mm M7 Screw Qty 4 80mm M7 Screw Qty 2 M4 Allen Key Qty 1 40mm M6 Screw Qty 6 For missing or damaged parts, call our Customer Helpline: 01799 513466 or email cs@kobledesigns.com...
- Page 5 Assembly Steps Two people required Assemble front crossbar and backrest in between leg frames using fixings Locate seat frame Step 1 into position as shown. Secure from the underside, using fixings D . Step 2...
- Page 6 Assembly Steps Place the seat cushion and back cushion onto the sofa Assembly is complete.
- Page 7 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY WARNINGS Dispose of all packing carefully and responsibly. Place product on an even surface prior to using. Suitable for Domestic Garden use only. Children should not be left alone in situ with product, please refrain children climbing onto the product. Frequently check any damage to the product including the underside and tighten fixings where required. Self Assembly Check you have all the components and tools listed before assembly. Remove all fittings from the plastic bags and separate them into their groups. Keep children and animals away from the work area, small parts could choke if swallowed. Make sure you have enough space to layout the parts before starting. Do not stand or put weight on the parts during assembly, this could cause damage. Assemble on a soft level surface to avoid damaging the unit or your floor. Tables Do not sit or stand on the table. Chairs Do not stand on the seating. Sun loungers ...
- Page 8 Email - CS@kobledesigns.com Tel:+ 44 (0)1799 513 466 Address: Koble Designs, 6 The Shires, Shirehill industrial Estate, Saffron Walden, Essex, CB11 3AP Purchased from other retailer If you purchased your product from one of our retailer partners, please refer back to the retailer directly, for any customer services related issued , refunds or returns requests.
