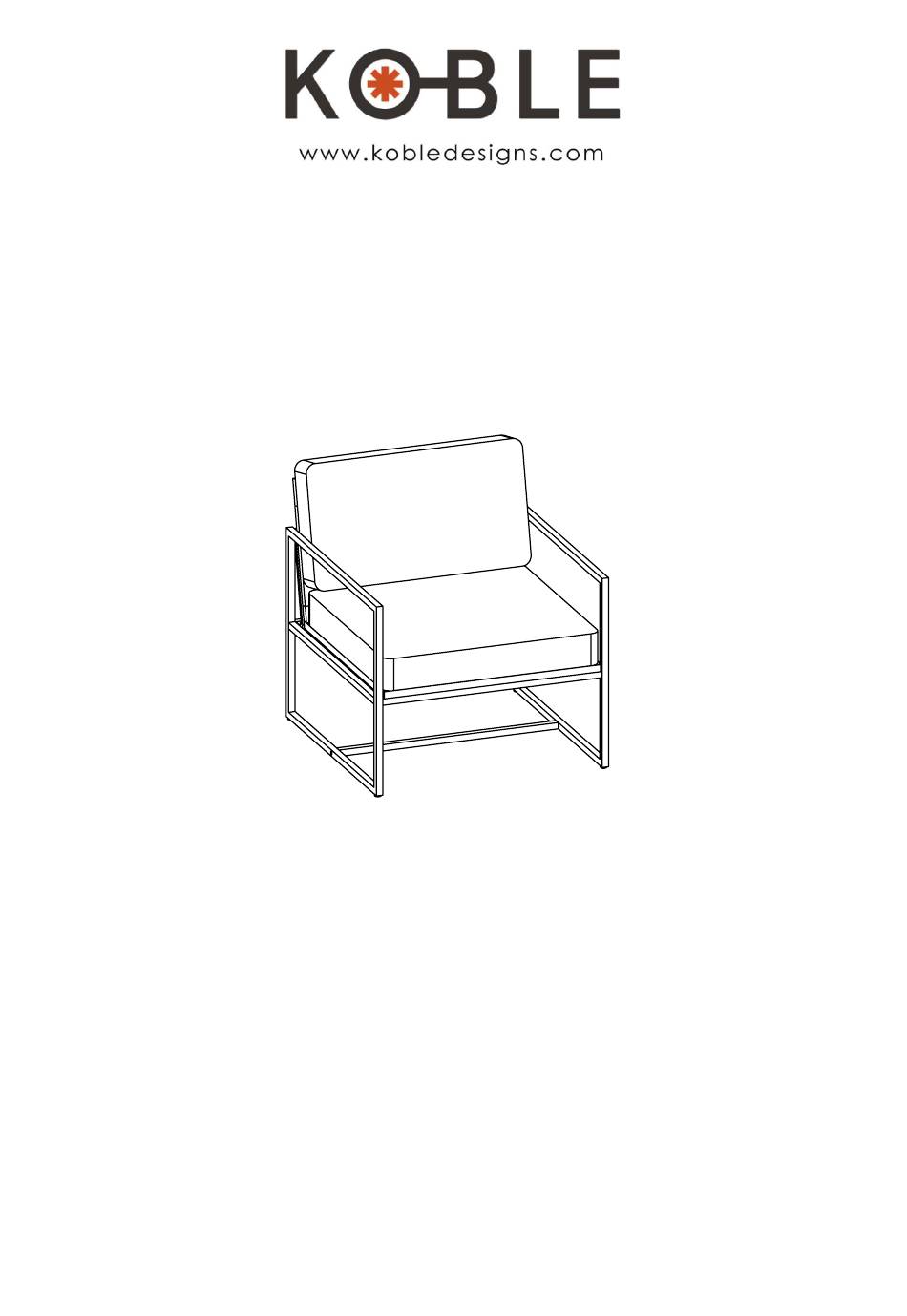

- Page 1 Malmo Lounge Furniture Set - Armchair Care & Instruction Manual Please read and retain these instructions for future reference STOCK CODES : GFLMAL Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP. Issue 1 - 10/03/22...
- Page 2 Safety and Care Advice Check you have all the Dispose of all packaging carefully Assemble on a soft level components and tools listed on and responsibly. surface to avoid damaging the pages 3 and 4. Place product on an even surface unit or your floor.
- Page 3 Seat frame Qty 1 ( 69x75x4.2cm ) Backrest frame Qty 1 ( 44x68x5cm ) Front Front Back Back Leg frame ( left ) Qty 1 ( 75x69x2cm ) Leg frame ( right ) Qty 1 ( 75x69x2cm ) Crossbar Qty 1 ( 2x2x69cm ) Seat Cushion Qty 1 (66x68x10cm) Back Cushion Qty 1 (66x41x10cm) For missing or damaged parts, call our...
- Page 4 Fixings, Fittings And Tools 35mm M6 Bolt Qty 4 40mm M8 Bolt Qty 4 M8 Washer Qty 4 20mm M6 Bolt Qty 2 M6 Washer Qty 6 Spanner K13 Qty 1 Allen Key Qty 1 For missing or damaged parts, call our Customer Helpline: 01799 513466 or email cs@kobledesigns.com...
- Page 5 Assembly Steps Step 1 Two people required Assemble backrest frame to seat frame , using fixings M6 Washer Qty 2 35mm M6 Bolt Qty 2 allen Key Qty 1 Step 2 Two people required Assemble leg frames 3 and 4 to the seat frame, using Back fixings Secure the leg frames to...
- Page 6 Assembly Steps Step 3 Place seat cushion back cushion on to the chair frame. Step 4 Assembly is complete.
- Page 7 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY WARNINGS Dispose of all packing carefully and responsibly. Place product on an even surface prior to using. Suitable for Domes c Gaden use only . Children should not be le alone in siu with poduct, please refrain children climbing onto the product.
- Page 8 Email - CS@kobledesigns.com Tel:+ 44 (0)1799 513 466 Address: Koble Designs, 6 The Shires, Shirehill industrial Estate, Saffron Walden, Essex, CB11 3AP Purchased from other retailer If you purchased your product from one of our retailer partners, please refer back to the retailer directly, for many customer services related issued , refunds or returns requests.
