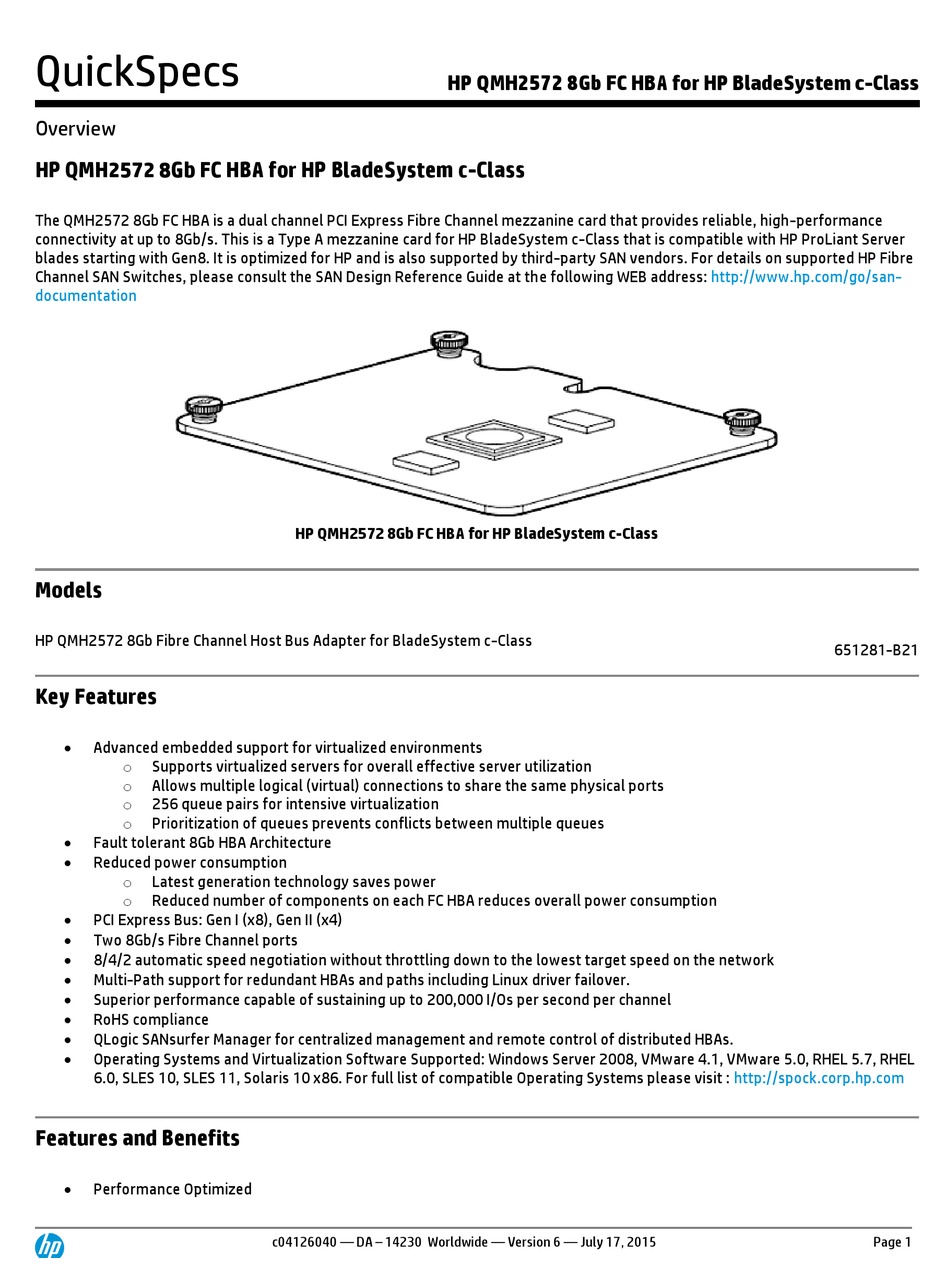

QuickSpecs
Overview
HP QMH2572 8Gb FC HBA for HP BladeSystem c-Class
The QMH2572 8Gb FC HBA is a dual channel PCI Express Fibre Channel mezzanine card that provides reliable, high-performance
connectivity at up to 8Gb/s. This is a Type A mezzanine card for HP BladeSystem c-Class that is compatible with HP ProLiant Server
blades starting with Gen8. It is optimized for HP and is also supported by third-party SAN vendors. For details on supported HP Fibre
Channel SAN Switches, please consult the SAN Design Reference Guide at the following WEB address:
documentation
Models
HP QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
Advanced embedded support for virtualized environments
Supports virtualized servers for overall effective server utilization
o
Allows multiple logical (virtual) connections to share the same physical ports
o
256 queue pairs for intensive virtualization
o
Prioritization of queues prevents conflicts between multiple queues
o
Fault tolerant 8Gb HBA Architecture
Reduced power consumption
Latest generation technology saves power
o
Reduced number of components on each FC HBA reduces overall power consumption
o
PCI Express Bus: Gen I (x8), Gen II (x4)
Two 8Gb/s Fibre Channel ports
8/4/2 automatic speed negotiation without throttling down to the lowest target speed on the network
Multi-Path support for redundant HBAs and paths including Linux driver failover.
Superior performance capable of sustaining up to 200,000 I/Os per second per channel
RoHS compliance
QLogic SANsurfer Manager for centralized management and remote control of distributed HBAs.
Operating Systems and Virtualization Software Supported: Windows Server 2008, VMware 4.1, VMware 5.0, RHEL 5.7, RHEL
6.0, SLES 10, SLES 11, Solaris 10 x86. For full list of compatible Operating Systems please visit :
Performance Optimized
HP QMH2572 8Gb FC HBA for HP BladeSystem c-Class
HP QMH2572 8Gb FC HBA for HP BladeSystem c-Class
c04126040 — DA – 14230 Worldwide — Version 6 — July 17, 2015
http://www.hp.com/go/san-
651281-B21
http://spock.corp.hp.com
Page 1

Advertisement

   Related Manuals for HP QMH2572 8Gb FC HBA

   Summary of Contents for HP QMH2572 8Gb FC HBA

  • Page 1: Key Features, Features And Benefits

    The QMH2572 8Gb FC HBA is a dual channel PCI Express Fibre Channel mezzanine card that provides reliable, high-performance connectivity at up to 8Gb/s. This is a Type A mezzanine card for HP BladeSystem c-Class that is compatible with HP ProLiant Server blades starting with Gen8.

  • Page 2

    Unified driver model eliminates potential interop issues between firmware and driver versions and cuts upgrade time in half Common drivers for 8Gb, 4Gb and 2Gb Kit Contents 1. HP QMH2572 8 GB FC HBA for HP BladeSystem c-Class 2. Quick install card 3. Product warranty statement NOTE: Drivers, user guide, and utilities via http://www.hp.com/go/QMH2572...

  • Page 3: Product Highlights

    NOTE: The HP QMH2572 8Gb FC HBA for HP BladeSystem c-Class is not compatible with HP ProLiant G7 and earlier server blades. NOTE: This is a Type A mezzanine card, and can be configured in either Type A or Type B slots on HP ProLiant Gen8 Server Blades.

  • Page 4: Standard Features

    Protect your business beyond warranty with HP Care Pack Services When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care Pack services provide total care and support expertise with committed response choices designed to meet your IT and business need.

  • Page 5

    The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

  • Page 6

    HP 3 year 4 hour 24x7 c7000 Enclosure Hardware Support UE479E NOTE: The HP Care Pack service part numbers below covers the HP 4Gb, 12 Port SAN Switch & 4Gb, 12 Port SAN Switch Upgrade LTU. Hardware Services On-site Service...

  • Page 7

    Software Operating Environment Care Packs HP 1year 9x5 3incidents Microsoft/Novell Operating Environment SW Technical Support U8169E HP 1 year 9x5 10 incident Red Hat High Performance Computing Software Technical U3402E Support HP 1year 9x5 3incidents SUSE SLES8 SW Technical Support...

  • Page 8: Technical Specifications

    This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. c04126040 — DA – 14230 Worldwide — Version 6 — July 17, 2015...

  • Page 9

    The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
