USER MANUAL
MODEL:B0359WST4H4PR (US VERSION)
WIRELESS COLOR WEATHER STATION
WITH 3 REMOTE SENSORS
Thank you for your order. BALDR weather
station is functional product, no matter what
problems you have met while using the
weather station, please feel free to contact
us to get support.
Email：
service@baldr.com
Phone：
1-833-381-5659

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B0359WST4H4PR and is the answer not in the manual?

Questions and answers

Related Manuals for BALDR B0359WST4H4PR

Summary of Contents for BALDR B0359WST4H4PR

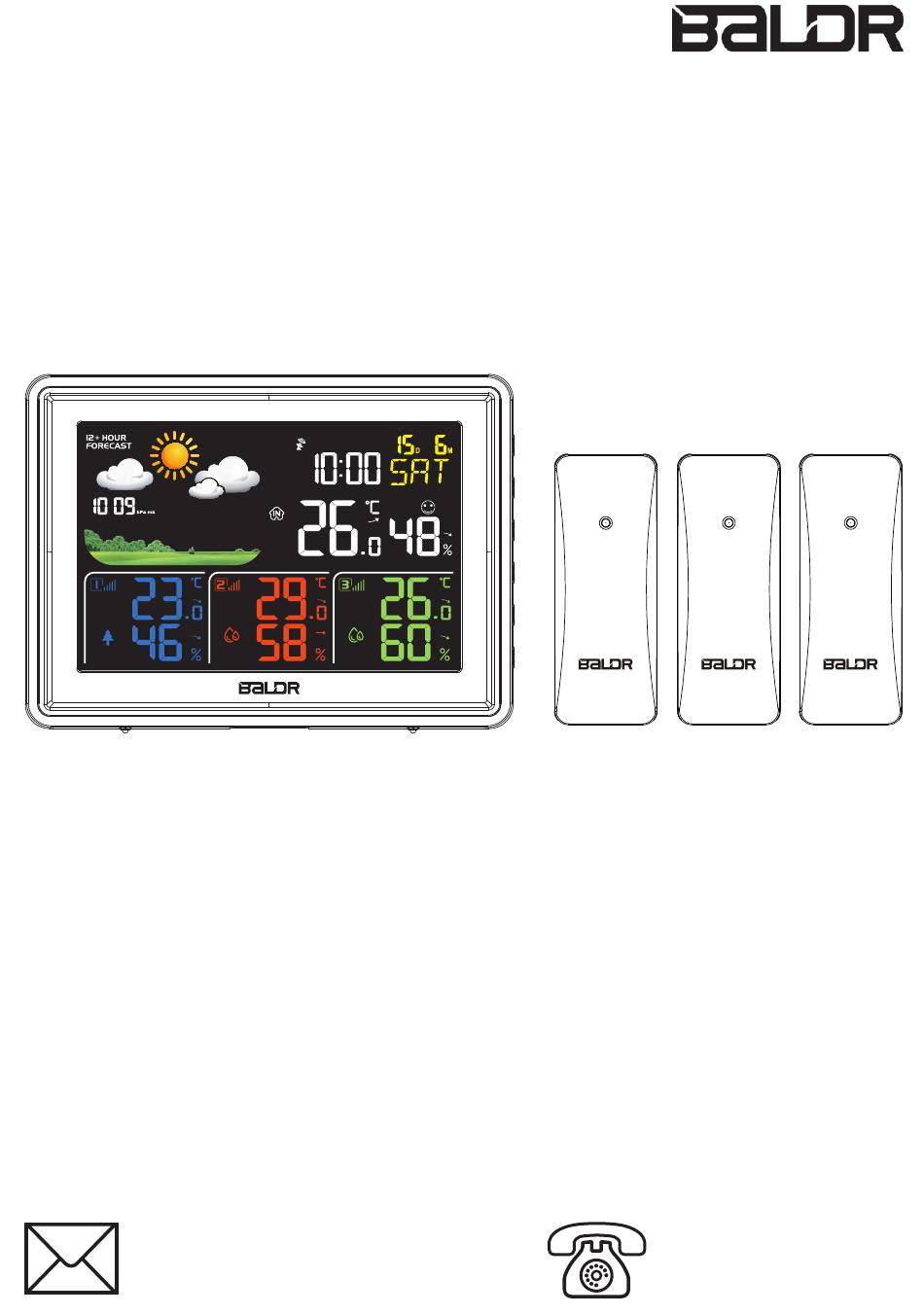

  • Page 1 USER MANUAL MODEL:B0359WST4H4PR (US VERSION) WIRELESS COLOR WEATHER STATION WITH 3 REMOTE SENSORS Thank you for your order. BALDR weather station is functional product, no matter what problems you have met while using the weather station, please feel free to contact us to get support.

  • Page 2: Table Of Contents

    Contents PRODUCT OVERVIEW 1.1 Package List 1.2 Appearance Description 1.3 Button Function Explanation INITIAL OPERATION 2.1 Quick Setup 2.2 Barometer Setting 2.3 RF Signal Receiving 2.4 WWVB Signal Receiving MANUAL SETTINGS ALARM FUNCTION 3.1 Alarm Time Setting 3.2 Alarm ON/OFF Setting 3.3 Snooze Function HOW TO GET MORE ACCURATE VALUE MAX AND MIN RECORDS...

  • Page 3: Product Overview

    PRODUCT OVERVIEW 1.1Package List Following contents are included in the package: 1 x Weather Station Main Unit 3 x Remote Sensors（not include 6x AA batteries) 1 x AC Adaptor 1 x CR2032 Cell Battery 1 x User Manual Product Size： Main unit : 115*160*19mm (4.52*6.3*0.75in) Sensor：99*36*18mm (3.9*1.4*0.7in) 6.3in(160mm)

  • Page 4: Appearance Description

    1.2Appearance Description Main unit inHg mmHg hPa mb (1). Temperature and humidity of Channel 1/2/3 (2). Max/min record of Channel 1/2/3 (3). Indoor temperature and humidity (4). Max/min record of indoor temperature and humidity (5).Trend of temperature/humidity (6). Three comfort level indication (7).
  • Page 5 1. “ ” button 6. “ ▼ ” button 2. “ SET ” button 7. “ ” button 3. “ MEM ” button 8. Stand bracket 4. “ CH ” button 9. Hanging hole 5. “ ▲/RCC ” button 10. Battery compartment Outdoor Sensor 1.Signal light 3.

  • Page 6: Button Function Explanation

    1.3 Button Function Explanation Button ▲/RCC ▼ Function Check Alarm Check Time,Turn Select Select 12/24H Press ON/OFF Backlight MAX/MIN °C/℉ Switch Records Alarm Level Function Normal Mode Turn Enter ON/OFF Clear All connect Hold Manual Alarm Records Setting Receiving Time Sensors Mode Confirm...

  • Page 7: Initial Operation

    INITIAL OPERATION 2.1 Quick Setup (1).Set 3 sensors channel from CH1/CH2/CH3 in order. (the channel of each sensor should be different from others.) (2).Peel off the protecting mask of main unit. (3).Remove the CR2032 cell battery of main unit. (4).Plug the AC adapter to a powered outlet. (5).Load all sensors with 2xAA batteries matching the polarity (+and-) within 3 minutes.

  • Page 8: Barometer Setting

    Positive pole Pick out WARNING: THIS PRODUCT CONTAINS A BUTTON-CELL BATTERY. IF SWALLOWED, IT COULD CAUSE SEVERE INJURY OR DEATH IN JUST 2 HOURS.SEEK MEDICAL ATTENTION IMMEDIATELY IF INGESTED. 2.2 Barometer Setting (1) .After power on, the pressure reading will be flashing for 10 seconds. If there is no need for calibration, touch the top button to exit setting.

  • Page 9: Rf Signal Receiving

    2.3 RF Signal Receiving (1). After the barometer setting, the main unit will start receiving 3 outdoor sensors’ signals for 3 minutes. If all 3 channels' signals are received within 3 minutes or receiving window ends, it will enter into the WWVB signal receiving window.

  • Page 10: Manual Settings

    MANUAL SETTINGS After RCC signal received, if there is no need for other settings, you can just finish reading here. If there is other setting requirements such as set the time zone , or if there is no signal received, you can follow bellow steps for manual setting.
  • Page 11 (11). Press “ SET ” to select Time Zone. Default setting : -5. Press “▲/RCC” or “ ▼ ” button to select time zone: AST(-4),EST(-5), CST(-6),MST(-7),PST(-8),AKT(-9),HAT(-10) optional. Time Zone Atlantic Eastern Central Mountain Pacific Alaskan Hawaiian (12). Press “ SET ” to select DST ON/OFF. Default setting : ON. Press “▲/RCC”...

  • Page 12: Alarm Function

    ALARM FUNCTION 3.1 Alarm Time Setting (1).Press and hold “ ” button to enter into alarm time setting. (2).Press “▲/RCC ” or “ ▼ ” button to adjust data;(press and hold “▲/RCC ” or “ ▼ ” button will quickly change the value. (3).The setting order is: Hour →...

  • Page 13: How To Get More Accurate Value

    HOW TO GET MORE ACCURATE VALUE For the more accurate reading and weather forecast, please place the sensor at a proper place: (1).When the sensor is first used or relocated, please place the whole set device at the same position for half an hour or more after power  on before having accurate measuring of temperature and humidity. (2).Place the sensor vertically, meanwhile, please place the sensor at ...
  • Page 14 (5).Leave certain space of gap between the sensor and the wall to avoid blocking the vent of the sensor for well-ventilated. (6).Mount the sensor in multi ways,no matter whatever way, make sure at least one side of the back’s vent is not blocked. Place on a hang from the back Lift with a rope...

  • Page 15: Max And Min Records

    MAX AND MIN RECORDS (1). Press “MEM” button to check maximum temperature and humidity, the value will display for 5 seconds. (2). Press “MEM” button second time to check the minimum temperature and humidity, the value will display for 5 seconds. (3).

  • Page 16: Humidity Display

    4.2Humidity Display (1)After power on, the indoor humidity will display automatically, it will update reading each 30 seconds and start to receive outdoor signal which lasts for max 3 minutes. (2)Humidity display range: 1%-99%,for humidity lower than 1%, the reading will be “1%”; for humidity higher than 99%, the reading will be “99%”.

  • Page 17: Weather Forecast

    WEATHER FORECAST The weather icon are based on the hourly calculation of indoor/outdoor temperature and humidity and barometer data for next 12 hours forecast with 70%-75% accuracy. There are 5 kinds of weather modes: Sunny, Partly Cloudy, Cloudy, Rainy, Snow. Sunny Partly Cloudy Cloudy Rainy Snow...

  • Page 18: Precautions

    PRECAUTIONS Do not clean any part of the product with benzene, thinner or other solvent chemicals. When necessary, clean it with a soft cloth. Never immerse the product in water. This can cause electrical shock and damage the product. Do not subject the product to extreme force, shock, or fluctuations in temperature or humidity.
  • Page 19 When the indoor temperature/humidity is inaccurate, it is often due to the location of the display or overpow- ered/under powered batteries. You can test the accuracy at you home. Side-by-side test: Bring the outdoor sensor in the house and place it next to the weather station for 2 hours. (1).Temperature:Compare indoor and outdoor temperature.

  • Page 20: Factory Restart

    3%, and return to previous brightness after receiving. If your BALDR weather station still can't be worked well after trying the troubleshooting steps, please visit our of f icial website: https://www.baldr.com or email us by baldrservice@baldr.com for help.

  • Page 21: Warranty

    WARRANTY BALDR provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. If having any problem, please do not hesitate to contact us. We will do our best to solve it and offer you satisfactory service by replacement or refund.
