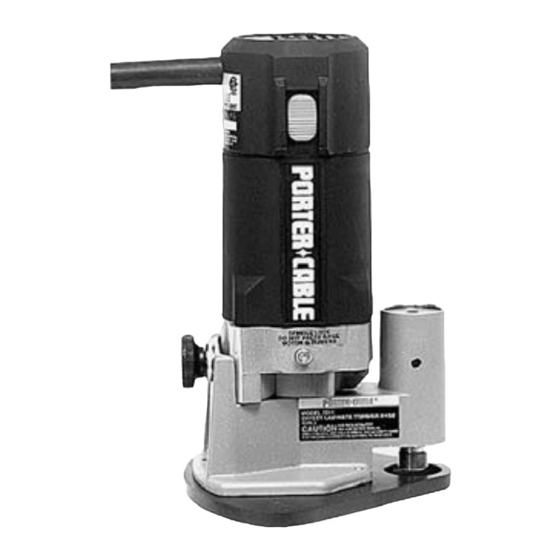

Porter-Cable 7319 Instruction Manual

Tilt base trimmer
Hide thumbs Also See for 7319:
Table of Contents

Advertisement

Quick Links

Download this manual
900005 - 11-30-01.qxd
Instruction
manual
MODEL 7319
Tilt Base Trimmer
Trimmer Base
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2001 Porter-Cable Corporation
2/12/02
10:45 AM
Double Insulated
Laminate Trimmers
Underscribe
(supplied in
97311 Kit)
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
Page 1
ESPAÑOL: PÁGINA 21
FRANÇAISE : PAGE 43
MODEL 7310
Trimmer
MODEL 7312
Offset Trimmer
IMPORTANT
Part No. 900005 - 11-30-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7319 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Porter-Cable 7319

Summary of Contents for Porter-Cable 7319

  • Page 1 Underscribe Trimmer Base (supplied in 97311 Kit) IMPORTANT Please make certain that the person who is To learn more about Porter-Cable to use this equipment carefully reads and visit our website at: understands these instructions before http://www.porter-cable.com starting operations. The Model and Serial No. plate is located on the main housing of the tool.

  • Page 2: General Safety Rules

    900005 - 11-30-01.qxd 2/12/02 10:45 AM Page 2 WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: ·...

  • Page 3: Specific Safety Rules And Symbols

    900005 - 11-30-01.qxd 2/12/02 10:45 AM Page 3 Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting. Be sure switch is OFF before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch ON invites accidents.
  • Page 4 WARNING: There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter-Cable and we have advised you.

  • Page 5: Replacement Parts

    When servicing use only identical replacement parts. MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C.

  • Page 6: Functional Description

    TO INSTALL BIT CAUTION: DISCONNECT TOOL FROM POWER SOURCE. On Models 7310 and 7319 bits may be installed with the motor unit either assembled or removed from the base. See instructions under Model 7312 for installing the bit in the OFFSET trimmer. See instructions under...
  • Page 7 CAUTION: Never touch trimmer bits immediately after use, as they may be hot. On Model 7310 and 7319 bits may be removed with the motor unit either assembled or removed from base. See instructions under Model 7312 for removing bits from the Offset Trimmer.
  • Page 8 900005 - 11-30-01.qxd 2/12/02 10:45 AM Page 8 Turn depth adjusting wheel (Fig. 3) clockwise, looking at top of wheel, to raise cutter reducing depth of cut or counterclockwise to lower cutter for increasing depth of cut. Tighten base locking screw securely and make a test cut in scrap material and check depth of cut.

  • Page 9: Operation

    900005 - 11-30-01.qxd 2/12/02 10:45 AM Page 9 Fig. 4 ASSEMBLY ASSEMBLING AND ADJUSTING BASE AND GUIDE The base and roller guide (A) Fig. 4, are assembled at the factory. To assemble to trimmer: Remove one sub-base mounting screw (A) Fig. 5, insert alignment pin in guide base into hole in bottom of trimmer sub-base and fasten with two mounting screws (F) Fig.
  • Page 10 NOTE: There is a flat washer (B) Fig. 6, on the locking screw. Model 7319 Tilt Base is designed for use with 43216 flush trim bit for trimming into corners. It may also be used with other “self pilot” trim bits for conventional trimming at 90°...

  • Page 11: Adjusting Tilt

    900005 - 11-30-01.qxd 2/12/02 10:45 AM Page 11 ADJUSTING DEPTH OF CUT CAUTION: DISCONNECT TOOL FROM POWER SOURCE. Loosen base locking screw and move motor unit up or down to decrease or increase depth of cut. CAUTION: It may be necessary with some bits to withdraw bit from collet to obtain maximum depth of cut.
  • Page 12 900005 - 11-30-01.qxd 2/12/02 10:46 AM Page 12 Locate the #6-32 × " screw from the hardware package. Use a phillips screwdriver to install this screw (D), as shown in Fig. 9. Tighten securely. Clean collet nut and collet, and assemble to the spindle in the offset base.
  • Page 13 900005 - 11-30-01.qxd 2/12/02 10:46 AM Page 13 SUB-BASE INVERTED " Fig. 12 A. Remove three sub-base mounting screws. B. Turn sub-base over and re-attach using screws removed in step A. OPERATION Material to be trimmed must overhang the base material by at least ".

  • Page 14: Typical Applications

    " backsplash OPERATION – The new Porter-Cable OPERATION – The guide assembly must be with the new Porter-Cable Offset Laminate Offset Trimmer will trim into and out removed. Using the self-piloted bit, the Trimmer fitted with a solid carbide self- of 90°...
  • Page 15 900005 - 11-30-01.qxd 2/12/02 10:46 AM Page 15 Clean and insert shank of bit (A) Fig. 14, into collet until end of shank bottoms. Then pull approximately ". Depress spindle lock (B) Fig. 14, and rotate collet nut (C) clockwise by hand until lock engages hole in motor spindle.
  • Page 16 900005 - 11-30-01.qxd 2/12/02 10:47 AM Page 16 4. Repeat Steps 1 through 3 as required to achieve a good fit- USING THE UNDERSCRIBE TRIMMER The bottom plate of the Underscribe Trimmer has a guide lip (see Fig. 17). This Fig.

  • Page 17: Maintenance

    900005 - 11-30-01.qxd 2/12/02 10:47 AM Page 17 Fig. 19 Fig. 20 Position the underscribe trimmer onto the face frame so that the top (see Fig. 19), is against the edge of the stile. NOTE: The trimmer should be to the right of the rail, so that the cutting action will move from right to left (see Fig.

  • Page 18: Service And Repairs

    FACTORY SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest authorized Porter-Cable Service Station to be thoroughly cleaned and inspected. Have worn parts replaced and lubricate with fresh lubricant. Have new brushes installed, and test the tool for performance.
  • Page 19 2/12/02 10:47 AM Page 19 ACCESSORIES A complete line of accessories is available from your Porter-Cable • Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Porter-Cable Authorized Service Stations. Please visit our Web Site www.porter-cable.com for a catalog or for the name of your nearest supplier.
  • Page 20 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
  • Page 21 Pour obtenir des pièces et accessoires pour les produits Porter-Cable • Delta, s’adresser à tout distributeur Porter- Cable • Delta, centre de service agréé ou centre de service d’usine Porter-Cable • Delta. Si vous n’avez accès à aucun de ces centres, appeler le 888-848-5175 et on vous dirigera vers le centre de service d’usine Porter-Cable •...
