Laminate Trimmer
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
MODEL 309
Part No. 890870 - 03-21-05
Advertisement
Table of Contents
Related Manuals for Porter-Cable 309
Summary of Contents for Porter-Cable 309
- Page 1 Double Insulated manual Laminate Trimmer MODEL 309 IMPORTANT Please make certain that the person who is To learn more about Porter-Cable to use this equipment carefully reads and visit our website at: understands these instructions before http://www.porter-cable.com starting operations. The Model and Serial No. plate is located on the main housing of the tool.
-
Page 2: Table Of Contents
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Porter-Cable strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. -
Page 3: Safety Guidelines
SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 4: General Safety Rules
GENERAL SAFETY RULES Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES continued d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 6: Additional Specific Safety Rules
ADDITIONAL SPECIFIC SAFETY RULES Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live"... - Page 7 SYMBOL DEFINITION ......volts ......amperes ......hertz ......watts ......kilowatts ......farads µF ......microfarads ......litres ......grams ......kilograms ......bars ......pascals ......hours ......minutes ......seconds ......no-load speed …/min or …min - ..
-
Page 8: Carton Contents
MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C. -
Page 9: Functional Description

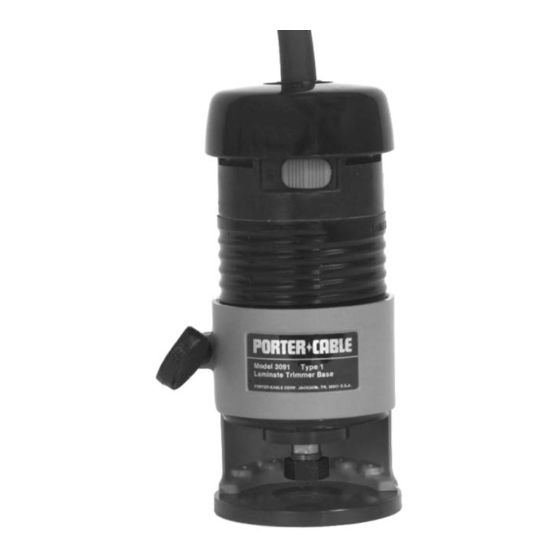

FUNCTIONAL DESCRIPTION FOREWORD Model 309 Porter-Cable Laminate Trimmer can make both flush and shallow bevel cuts, using self-piloting bits. ASSEMBLY NOTE: This tool is shipped completely assembled. No assembly time or tools are required. TO INSTALL BIT DISCONNECT TOOL FROM POWER SOURCE. -
Page 10: Operation
TO REMOVE BIT Follow steps one through five under TO INSTALL BIT. Place one wrench on flats of shaft directly above collet nut. Let far end of wrench rest on bench to your left. Place other wrench on collet nut and turn counterclockwise and loosen only enough to allow removal of bit. - Page 11 CARE OF CARBIDE BITS Please read these suggestions carefully. They will help you obtain maximum benefits from the use of carbide bits. Never drop a carbide tool. Never let it strike against anything. A sharp blow may cause the carbide to crack or shatter. Exercise caution when using machinery and other tools such as wrenches, near carbide tools, where the carbide might be hit and damaged.
-
Page 12: Troubleshooting
TROUBLESHOOTING For assistance with your tool, visit our website at www.porter-cable.com for a list of service centers or call the Porter-Cable help line at 1-800-487-8665. MAINTENANCE KEEP TOOL CLEAN Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. -
Page 13: Service
All quality tools will eventually require servicing, or replacement of parts due to wear from normal use. For assistance with your tool, visit our website at www.porter-cable.com for a list of service centers or call the Customer Care Department at 1-800-487-8665. All repairs made by our service centers are fully guaranteed against defective material and workmanship. -
Page 14: Warranty
PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period. -
Page 15: Español
Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
