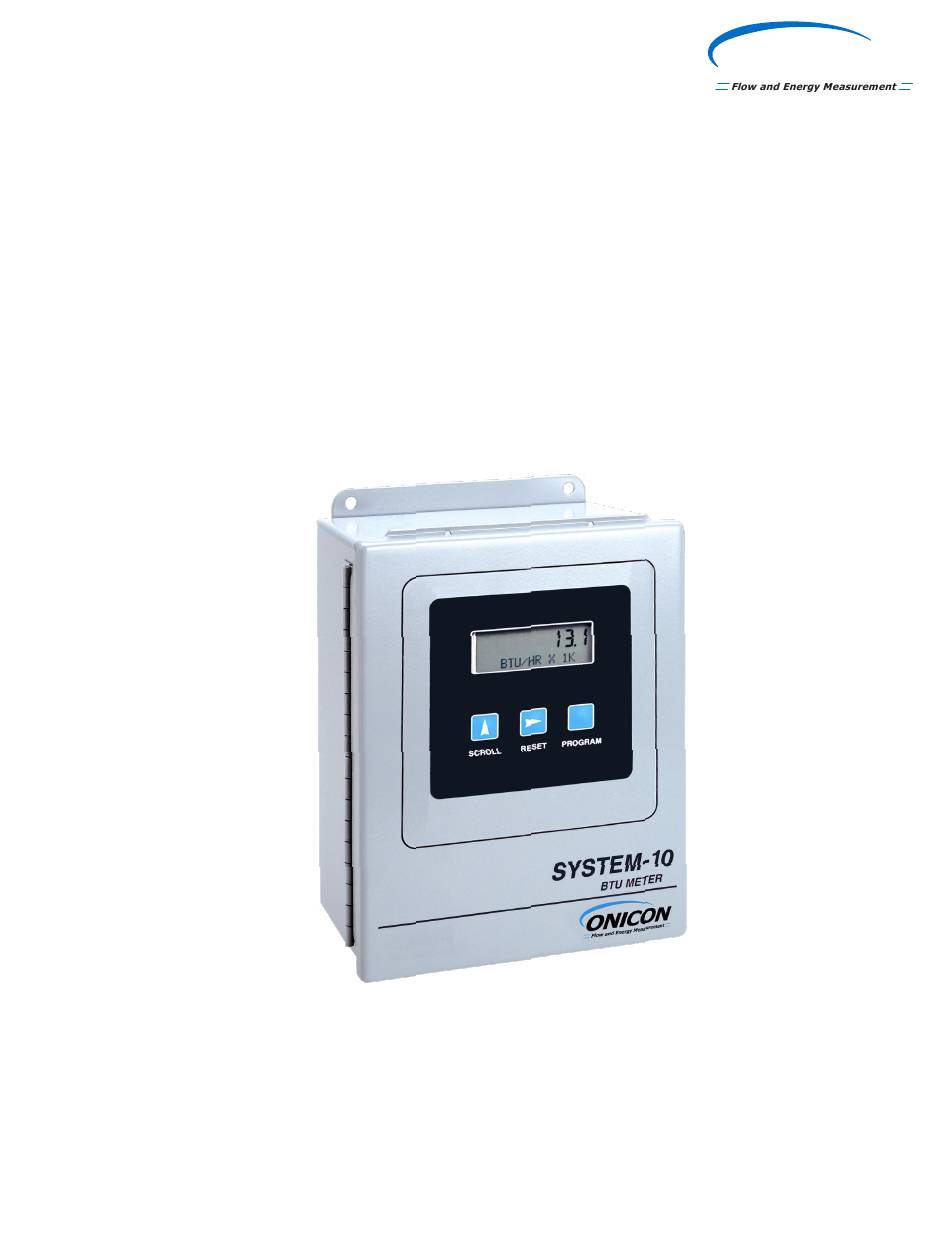

ONICON

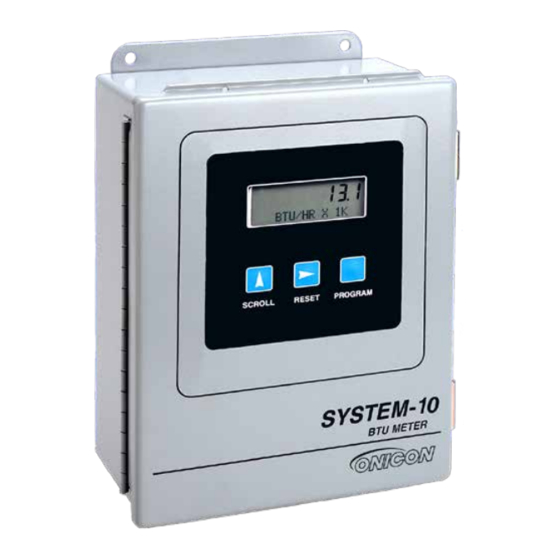

System-10 BTU Meter
Dual Network Interface Installation Guide
(BACnet & MODBUS)
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
www.onicon.com • sales@onicon.com
DOC-0003376
Rev.C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Onicon System-10

Summary of Contents for Onicon System-10

  • Page 1 ONICON System-10 BTU Meter Dual Network Interface Installation Guide (BACnet & MODBUS) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 www.onicon.com • sales@onicon.com DOC-0003376 Rev.C...

  • Page 2: Table Of Contents

    System-10 Dual Network Interface Board ..............2 System-10 Dual Network Interface Auxiliary Input Board ........3 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...
  • Page 3 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 4: Section 1: Introduction

    BACnet device address range: 1 – 127 (Default: 017) BACnet Device Instance range: 0 - 4,194,303 (Default: 57017) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 5: Protocol Selection

    The default IP configuration of the System-10 is as follows: IP Address 192.168.1.24 Mask 255.255.0.0 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 6 Only one protocol is allowed to remotely reset totals on the network. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 7: Network Signal Connections

    Incoming and outgoing RS485 cable shield wires should be connected together, but must not be connected to the BTU meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 8: Bacnet/Ip And/Or Modbus Tcp/Ip

    NOTE: RJ45 Connector 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 9: Optional Network Interface With Isolated Digital Pulse Input (Di3)

    Pulse Type Selector Switch (S1) Unused Input Impedance Jumper (J1) Leave OFF 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 10 Set the selector switch, S1 to SRC. The switch must be rated for at least 20 mA at 20 VDC. Fig. 3 ONICON BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 11 Di3 In (-) Fig. 5 ONICON BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 12: Bacnet Ms/Tp Baud Rate, Biasing & Termination

    (Modbus Baud rate will show if Modbus RTU is selected as the protocol in section 1.4) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 13: Biasing And Termination

    11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...
  • Page 14 The new addresses are saved and the PROGRAM pushbutton. display will revert to the RUN mode. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 15: Changing The Ip Address, Subnet Mask And Gateway Address

    System restart required to complete the update. Click here to upload the new settings. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 16: Section 2.0: Bacnet Pics And Objects

    SECTION 2.0: BACNET PICS AND OBJECTS 2.1 Pic Statements 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 17 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 18: Bac Objects

    Not Applicable Total Binary Value 15 Zero Auxiliary Input Not Applicable Total 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 19: Additional Bacnet

    Read-only Max Master Read-only Device Address Binding Read-only Active Database Revision Read-only 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 20: Analog Input(S)

    Analog input 3 Supply temperature Temperature: °F or °C Analog input 4 Return temperature 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 21: Analog Value(S)

    Volume: gallons, liters, ft3 or m3 Auxiliary pulse inputs: No units (counts) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 22: Binary Value(S)

    8 manual operator). Binary value 15 Zero Mode Aux Input Total 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 23: Section 3.0: Modbus Memory Map

    11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 24: Modbus Memory Map

    Kilograms per hour x 10 kg/Hr x 10 Temperature Degrees Fahrenheit °F Degrees Celsius °C 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 25 Return Temperature – °C Floating point register (2 of 2) Read Only 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 26 Zero Auxiliary Input Total (Di3) 0 – 1 0 – 1 Read/Write 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 27 40029 0 – 65535 0 – 999 Read Only Low Order kBTU 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 28 Zero Auxiliary Input Total (Di3) 0 – 1 0 – 1 Read/Write 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...

  • Page 29: Totalization, Resetting Totals, Over-Range & Rollover

    Registers 41063 and 41064 provide totalization for the optional auxiliary pulse input option of the System-10 BTU Meter. There are no engineering units associated with these registers. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...
  • Page 30 Changing the engineering units or multipliers at the BTU meter will affect the rollover point. Contact ONICON technical service prior to making any changes. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 31: Section 4.0: Network Troubleshooting Tips

    (See section 1.6.2 of this manual for details.) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...
  • Page 32 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...

  • Page 33: Appendix

    A-2 SYSTEM-10 Dual Network Interface Board A-3 SYSTEM-10 Dual Network Interface Auxiliary Input Board 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide...
  • Page 34 Reset Temp Test Prog Mode Enable Device Address Program Enable Serial Comm 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 35 System-10 Dual Network Interface Board ONICON 120 ohm Termination Resistor Unused Leave OFF Receive Transmit 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
  • Page 36 System-10 Dual Network Interface Auxiliary Input Board ONICON Unused Leave OFF Receive Transmit 120 ohm Termination Resistor 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com System-10 Dual Network Interface Installation Guide Page...
