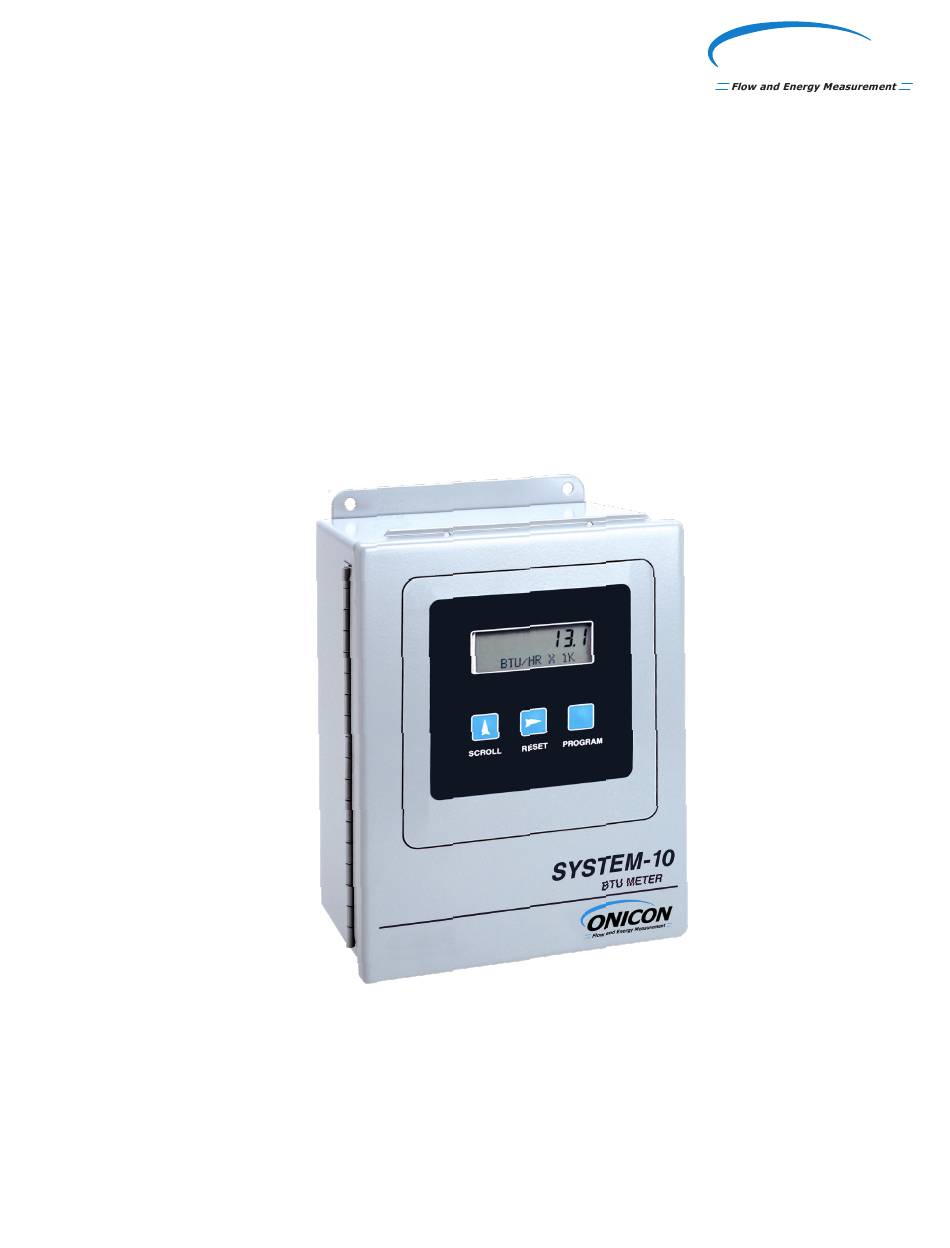

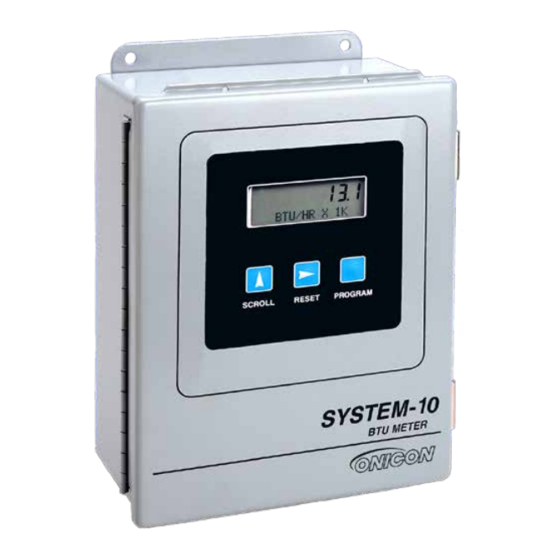

  • Page 1 BACnet ONICON System-10 BTU Meter BACnet Network Interface Installation Guide 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 www.onicon.com • sales@onicon.com 0652-12 / 16957 08-16...
  • Page 2 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 3: Table Of Contents

    SYSTEM-10 BACnet IP BOARD SYSTEM-10 BACnet/IP Digital Pulse Input Board 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 4 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 5: Introduction

    Default IP address: 192.168.1.24 (Subnet Mask 255.255.255.0) (Port 47808) Flow control: None 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 6: Network Signal Connections

    Incoming and outgoing RS485 cable shield wires should be connected together, but must not be connected to the Btu meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 7: Bacnet/Ip

    ONICON assumes no responsibility for damage caused to the external equipment as a result of an improper installation. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 8: Optional Network Interface With Isolated Digital Pulse Input (Di3)

    NOTE: BACnet MS/TP shown above. See appendix A-4 for BACnet/IP auxiliary input board. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 9 ONICON BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 10 ONICON BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 11: Bacnet Ms/Tp Baud Rate, Biasing And Termination

    Baud Rate Dip Switches (Circuit board shown upside down for clarity.) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 12: Biasing And Termination

    128 or higher are slave devices and must be manually added to the network. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 13 PROGRAM pushbutton. display will revert to the RUN mode. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 14: Changing The Ip Address

    255.255.255.0 and should not be changed unless necessary. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 15 Enter the new IP address as shown below and press enter. The following message will appear. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 16: Changing The Gateway Address

    From the Remote User Interface main menu (shown below) select option “I”, Change IP Address. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 17 Enter the new gateway address as shown below and press enter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 18 System-10 for the change to take effect. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 19: Bacnet Pics And Objects

    SECTION 2.0: BACnet PICS AND OBJECTS PIC STATEMENTS 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 20 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 21: Bac Objects

    Binary Value 15 Zero Auxiliary Input Total Not Applicable 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 22: Additional Bacnet Object Information

    Read-only Device Address Binding Read-only Active Database Revision Read-only 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 23: Analog Input(S)

    Temperature: °F or °C Analog input 4 Return temperature 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 24: Analog Value(S)

    Volume: gallons, liters, ft3 or m3 Auxiliary pulse inputs: No units (counts) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...

  • Page 25: Binary Values(S)

    8 manual operator). Binary value 15 Zero Mode Aux Input Total 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...

  • Page 26: Network Troubleshooting Tips

    11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 27 RS485 connector on the System-10. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957...
  • Page 28 Prog Mode Enable Device Address Program Enable Serial Comm 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 29 SYSTEM-10-BAC BTU METER BACnet/MSTP BOARD ONICON Baud Rate Switches Transmit Receive Termination Resistor 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 30 Yellow - LED Green - LED Network Network Link Activity 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
  • Page 31 Pulse Type Selector Switch (S1) Input Impedance Jumper (J1) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com System-10-BAC Network Interface Installation Guide 08/16 - 0652-12 / 16957 Page...
