INSTALLATION AND MAINTENANCE INSTRUCTIONS

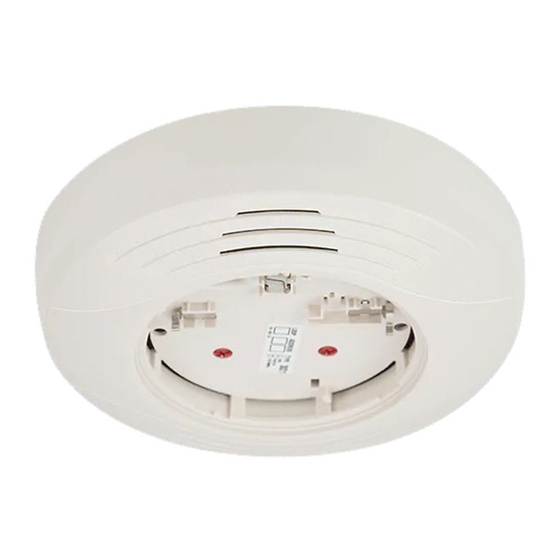

B224RB Plug-in
Relay Detector Base
Specifications
Base Diameter:
Base Height:
Mounting:
Operating Temperature Range:
Operating Humidity Range:
Electrical Ratings
Operating Voltage:
Time Averaged Standby Ratings:
Relay Characteristics
Coil:
Contact Type:
Contact Relay
Resistive:
Inductive:
Set Time:
Reset Time:
Before Installing
Please thoroughly read the system wiring and installation
manuals and the System Smoke Detectors Applications
Guide, which provide detailed information on detector
spacing, placement, zoning, and special applications.
NOTICE: This manual should be left with the owner/user
of this equipment.
IMPORTANT: The detector used with these bases must be
tested and maintained regularly following NFPA 72 require-
ments. The detectors should be cleaned at least once a year.
General Information
Form C latching relay contacts are included for the control
D450-16-01
6.1 inches (155 mm)
1.2 inches (31 mm)
4-inch square box with or without plaster ring, Min Depth - 1.5 inches (38 mm)
4-inch octagon box, Min. depth - 1.5 inches (38 mm)
3 ⁄ -inch octagon box, Min. depth - 1.5 inches (38 mm)
1
2
0° to 49°C (32° to 120°F)
10% to 93% Relative Humidity (Non-condensing)
15 to 32 VDC
<500 µA @ 24 VDC
2 coil latching
1 Form C
2 A @ 30 VDC
0.3 A @ 110 VDC (with .35 PF or greater)
0.3 A @ 120 VAC (with .35 PF or greater)
1.0 A @ 30 VDC (with .6 PF or greater)
4 seconds minimum, 20 seconds maximum
1 second minimum, 8 seconds maximum
of an auxiliary function. The relay operates 12 seconds
(nominally) after activation of the sensor head remote
annunciator output.
Mounting
The detector base mounts directly to 3
gon and 4-inch square boxes, with or without a plaster ring.
To mount, remove the decorative ring by rotating it in either
direction to unhook the snaps. Then, separate the ring from
the base. Install the base on the box, using the screws sup-
plied with the junction box and the appropriate slots in the
base. Replace the decorative ring on the base and rotate it in
either direction until the ring snaps in place (see Figure 1).
1
firealarmresources.com
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
⁄ - and 4-inch octa-
1
2
I56-659-09R
