FRENCH FITNESS FF-X9LP Assembly Manual

Functional multi gym system w/leg press
Hide thumbs Also See for FF-X9LP:

Advertisement

Quick Links

Download this manual
FF-X9LP
Functional Multi Gym System w/Leg Press
ASSEMBLY MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FF-X9LP and is the answer not in the manual?

Questions and answers

Related Manuals for FRENCH FITNESS FF-X9LP

Summary of Contents for FRENCH FITNESS FF-X9LP

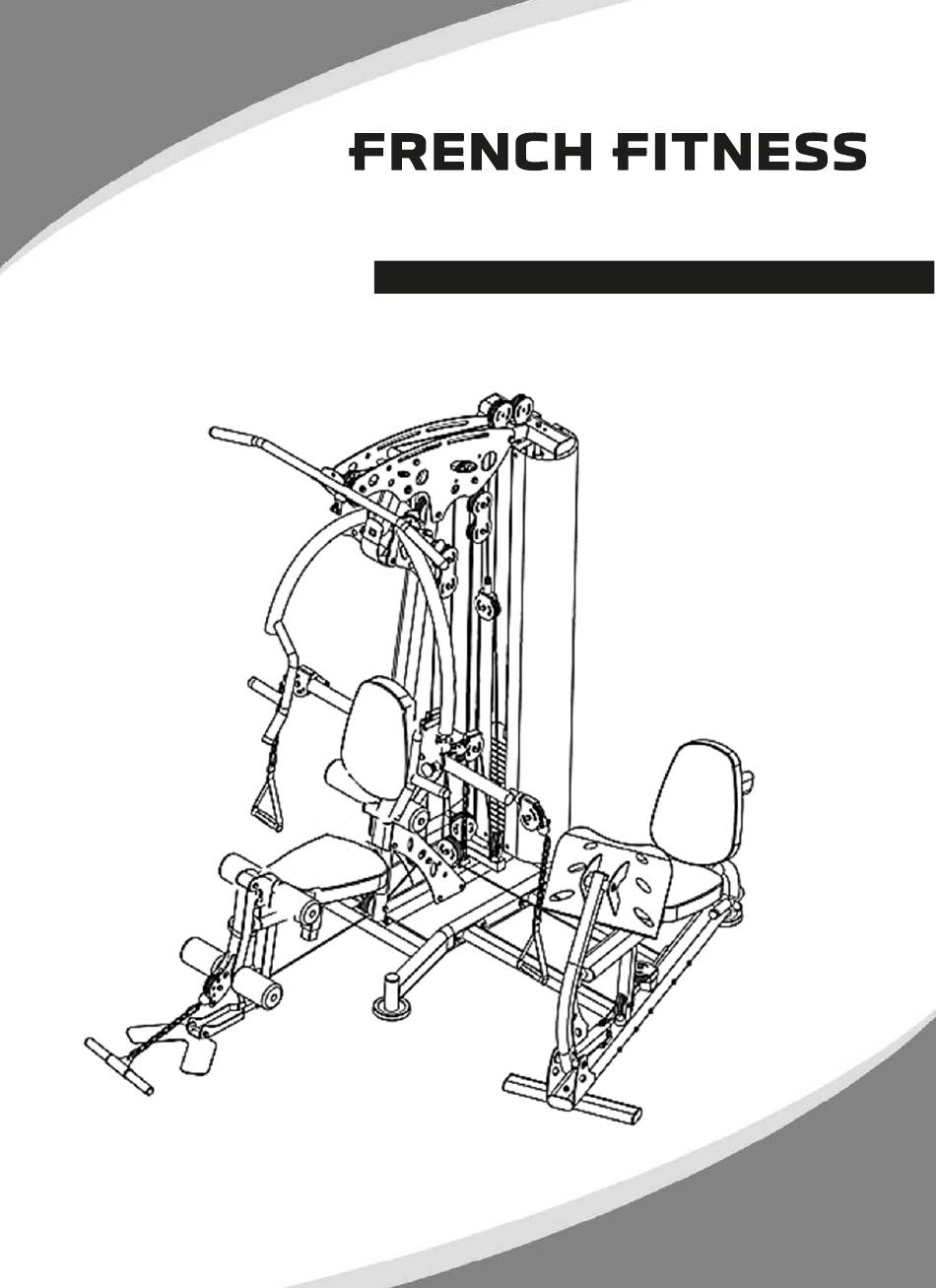

  • Page 1 FF-X9LP Functional Multi Gym System w/Leg Press ASSEMBLY MANUAL...

  • Page 2: Tech Specs

    FEATURES • • • • with ease • bearings • TECH SPECS • 190 lb Weight Stack • Lat Pulldown: Feels like 280 lbs Due to pulley ratio • Dimensions: 82"D x 91"W x 83.9"H WARRANTY • Lifetime Parts and 1 Year Labor Warranty...

  • Page 3: Parts Diagram

    Parts Diagram 12x3 (M12x20) Outer Hexagonal Bolt (M10x20) (M12x70) ( 10 Outer Hexagonal Bolt Pulley Spacer ( 10) Washer Positioning Bolt Outer Hexagonal Bolt 53 ( ( 12) M12) (M10x60) (M10) (M12x130) (M2) Washer Flat washer Lock Nut Outer Hexagonal Bolt Lock Nut Outer Hexagonal Bolt...
  • Page 4 Parts Diagram ( 16x137) (M10x16) ( 17x123) (M12x75) (M10x85) (M10x130) Outer Hexagonal Bolt Outer Hexagonal Bolt Outer Hexagonal Bolt (M10x45) (M10x115) (M8x45) ( 8) Washer (M8) Lock Nut Outer Hexagonal Bolt Outer Hexagonal Bolt Outer Hexagonal Bolt (M10x35) (M10x110) (M10x70) Outer Hexagonal Bolt Outer Hexagonal Bolt Outer Hexagonal Bolt (M25x112)
  • Page 5 I n s t a ll in g S t e p 1 Ex p l o d e d Vie w...

  • Page 6: Installation Instruction

    Installation Instruction 1. Put Φ10 washer (49) over M10*20 outer hexagonal bolts (5), and fasten the guiding rod assembly (2) to the under frame weldment (1). 2. Install the cushion (4) on the guiding rod assembly (2).
  • Page 7 I n s t a l l in g St e p 2 Ex p l o d e d Vie w...
  • Page 8 I n s t a l l i n g S t e p 2 A f t e r I n s t a l l a t i o n Installation Instruction Place 11 PCS cast iron counterweight lower piece (7) and cast iron counterweight top piece (6) in sequence on the upper end of the guiding rod assembly (2).
  • Page 9 I n s t a l l i n g S t e p 3 E x p l o d e d V i e w...
  • Page 10 I n s t a l l i n g S t e p 3 A f t e r I n s t a l l a t i o n Installation Instruction Fasten the inclined support beam (12) to the chassis assembly with M12*70 outer hexagonal bolts (51), Φ12 at washers (52), and M12 lock nuts (53).
  • Page 11 I n s t a ll in g St e p 4 Ex p l o d e d Vie w...
  • Page 12 Installation Instruction 1. Fix the shield support frame (14) and the upper beam (13) together with M10*60 outer hexagonal bolts (56), Φ10 washers (49) and M10 lock nuts (57). 2. Connect the upper beam (13) and the guiding rod (2) together, and fasten them with M10*20 outer hexagonal bolts (5), Φ10 washers (49) M10 lock nuts (57).
  • Page 13 I n s t a l l in g S t e p 5 Ex p l o d e d Vie w...
  • Page 14 I n s t a l l i n g S t e p 5 A f t e r I n s t a l l a t i o n Installation Instruction 1. Use M12*130 outer hexagonal bolts (58), Φ12 washers (52) and M12 lock nuts (53) to fasten the decorative boards (15, 16) to the upper beam and the inclined support beam assembly.
  • Page 15 I n s t a l l in g St e p 6 Ex p l o d e d Vie w...
  • Page 16 I n s t a l l i n g S t e p 6 A f t e r I n s t a l l a t i o n Installation Instruction 1. Use M12*70 outer hexagonal bolts (51), Φ12 washers (52) and M12 lock nuts (53) to fasten the seat support in tube assembly (18) to the lowerhole of the inclined support beam.
  • Page 17 I n s t a l l in g St e p 7 Ex p l o d e d Vie w...
  • Page 18 I n s t a l l i n g S t e p 7 A f t e r I n s t a l l a t i o n Installation Instruction 1. Use the Φ17*123 front pushing frame shaft (59) to connect the front pushing frame (21) and the decorative boards (15, 16) together, and fasten it to both ends of the front pushing frame shaft (21) with M10*20 outer hexagonal bolts (5) and Φ10*Φ30 washers (3).
  • Page 19 I n s t a l l in g St e p 8 Ex p l o d e d Vie w 62 52...
  • Page 20 I n s t a l l i n g S t e p 8 A f t e r I n s t a l l a t i o n Installation Instruction 1. Fasten the butter y arm-left (24) to the butter y arm xing board of the inclined support beam with M10*16 outer hexagonal bolts (61) and Φ10*Φ30 washers (3).
  • Page 21 I n s t a l l i n g S t e p 9 E x p l o d e d V i e w 66 65 Cable (#29) = 166.5" (1 bolt end and one rubber ball end)
  • Page 22 Installing Step 9 Rope Wiring Diagram Cable (#29) = 166.5" (1 bolt end and one rubber ball end)
  • Page 23 I n s t a l l i n g S t e p 9 A f t e r I n s t a l l a t i o n high pull steel rope 4240 mm Installation Instruction 1.
