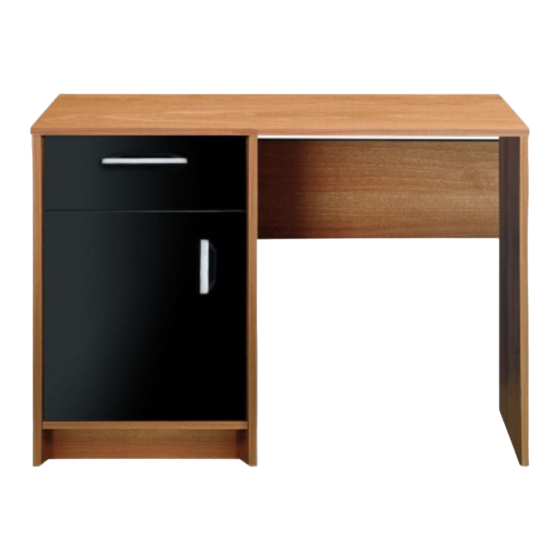

Caspian - Desk

Assembly Instructions -

Dimensions

Width - 100cm

Depth - 45cm

Height - 72cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

355/9424

359/9439

MADE IN

BRITAIN

Issue 4 - 27/10/14

Need help?

Do you have a question about the Caspian 355/9424 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Caspian 355/9424

Page 1 Caspian - Desk Assembly Instructions - 355/9424 Please keep for future reference 359/9439 Dimensions Width - 100cm Depth - 45cm MADE IN Height - 72cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 27/10/14...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 22kgs. Please lift space to layout the parts before recommend the with care.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Upright Right Side (D0367A) (D0368A) (D0276A) (706 x 394mm) (706 x 394mm) (706 x 394mm) Base...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare drawer front and wrap Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
Page 6 Assembly Instructions Step 3 Attach handle Attach handle to the drawer front using 2 screws Step 4 Prepare the left side Place a runner the left side . Slide Finished back the top of the front edge runner and use the 2nd hole from the front to fit the 1st screw Slide the runner...
Page 7 Assembly Instructions Step 5 Prepare the upright Place a runner the upright . Slide back the top of the runner and use the 2nd hole from the front to fit the 1st screw Slide the runner Finished back the other way and front edge fit the 2nd screw into...
Page 8 Assembly Instructions Step 7 Prepare plinth Plain chipboard surface Tap 2 wooden dowels 10mm into the ends of the plinth Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Step 8 Fit the plinth to the upright...
Page 9 Assembly Instructions Step 10 Prepare the right side Insert 2 large locking nuts into the right side Finished front edge Step 11 Fit the modesty Finished 2 people are needed front edge here Attach the modesty to the upright using 2 screws Support the modesty until the right side has...
Page 10 Assembly Instructions Step 12 Fit the right side 2 people are needed here Attach the right side to the modesty using 2 screws Step 13 Prepare the top panel Screw 6 metal dowels into the holes on the Note: Tighten metal dowels up fully against the panel.
Page 11 Assembly Instructions Step 14 Fit the top Push the 6 metal dowels fitted to the down into the holes in the top edge of the side and upright panels Use a screwdriver to tighten the 6 large locking nuts fitted to the side and upright panels Note: Turn the large...
Page 12 Assembly Instructions Step 16 Fit the plaic nails Tap 2 plastic nails into the bottom edge of each of the sides and the upright Stand the unit up for the next step. Warning: The desk is heavy. Lift with care.
Page 13 Assembly Instructions Step 17 Fit the shelf Insert 4 shelf studs at the required height, into the holes on the left side and upright Slide the shelf in to rest on top of the 4 shelf studs. Step 18 Prepare the door Push fit the hinges into the door Secure each hinge with...
Page 14 Assembly Instructions Step 19 Fit door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the bottom hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
Page 15 Assembly Instructions Step 20 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
Page 16 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3099...
