Rear Panel

There might be slight differences in the real panel among different models. But they have the same
function ports.
No. Description
1 Analog camera port 1.
2 VTO port 1.
3 VTO port 2.
4 Power input.
5 Analog camera port 2.

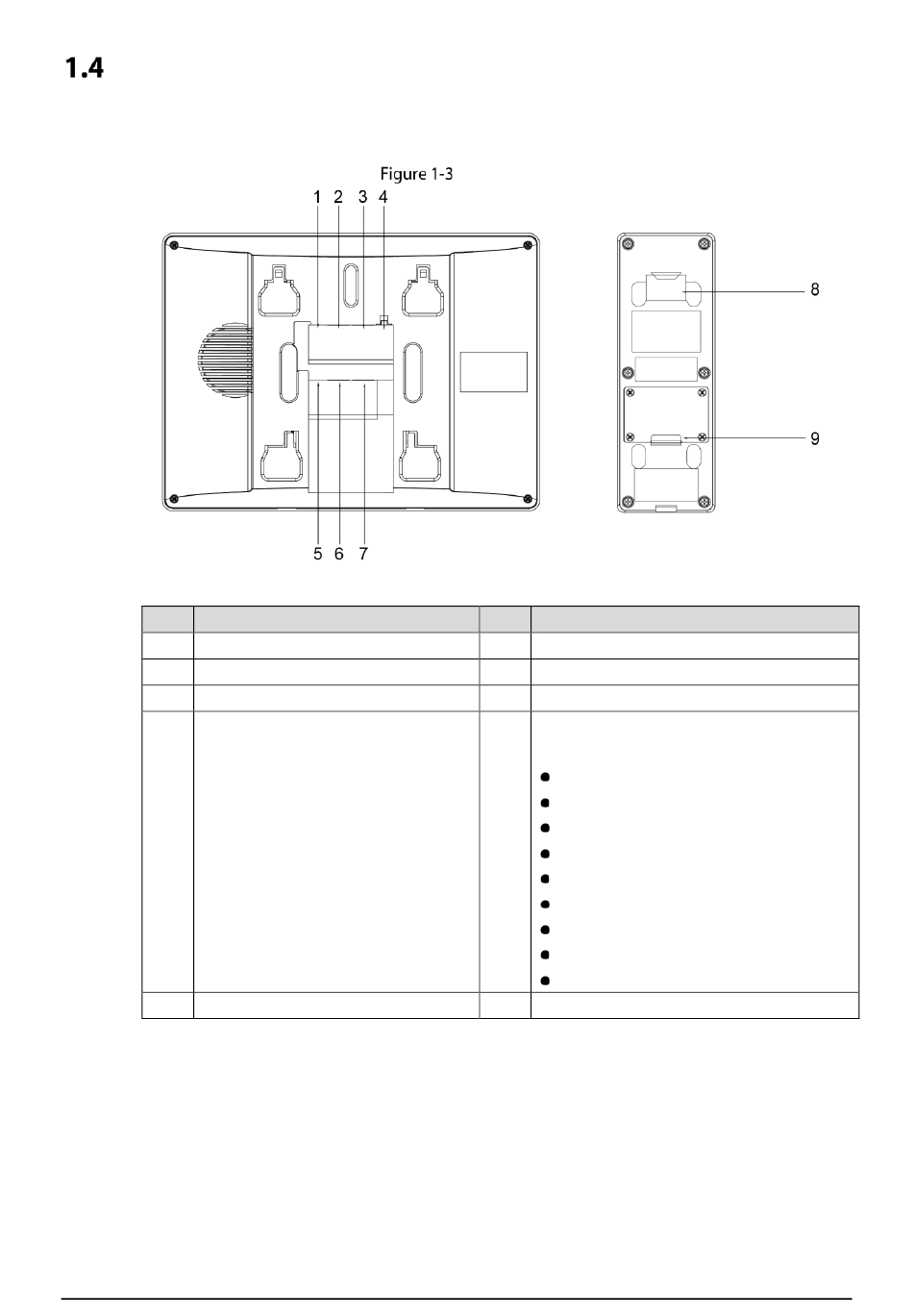

Rear panel
Table 1-2 Rear panel
No. Description
6 VTH cascading port 1.
7 VTH cascading port 2.
8 VTO hanging slot.
Wires: The color of the wires represents
different port functions.
9
– –
4
Red: power.
Yellow: video.
White: audio.
Black: GND.
Green: exit button.
Orange: feedback.
Purple: NO.
Blue: COM.
Brown: NC.
