Argos Canterbury 3 DR 3 DRW MIR ROBE Assembly Instructions Manual

Argos Canterbury 3 DR 3 DRW MIR ROBE Assembly Instructions Manual

Hide thumbs Also See for Canterbury 3 DR 3 DRW MIR ROBE:

Advertisement

Quick Links

Download this manual
Canterbury 3 DR 3 DRW MIR ROBE

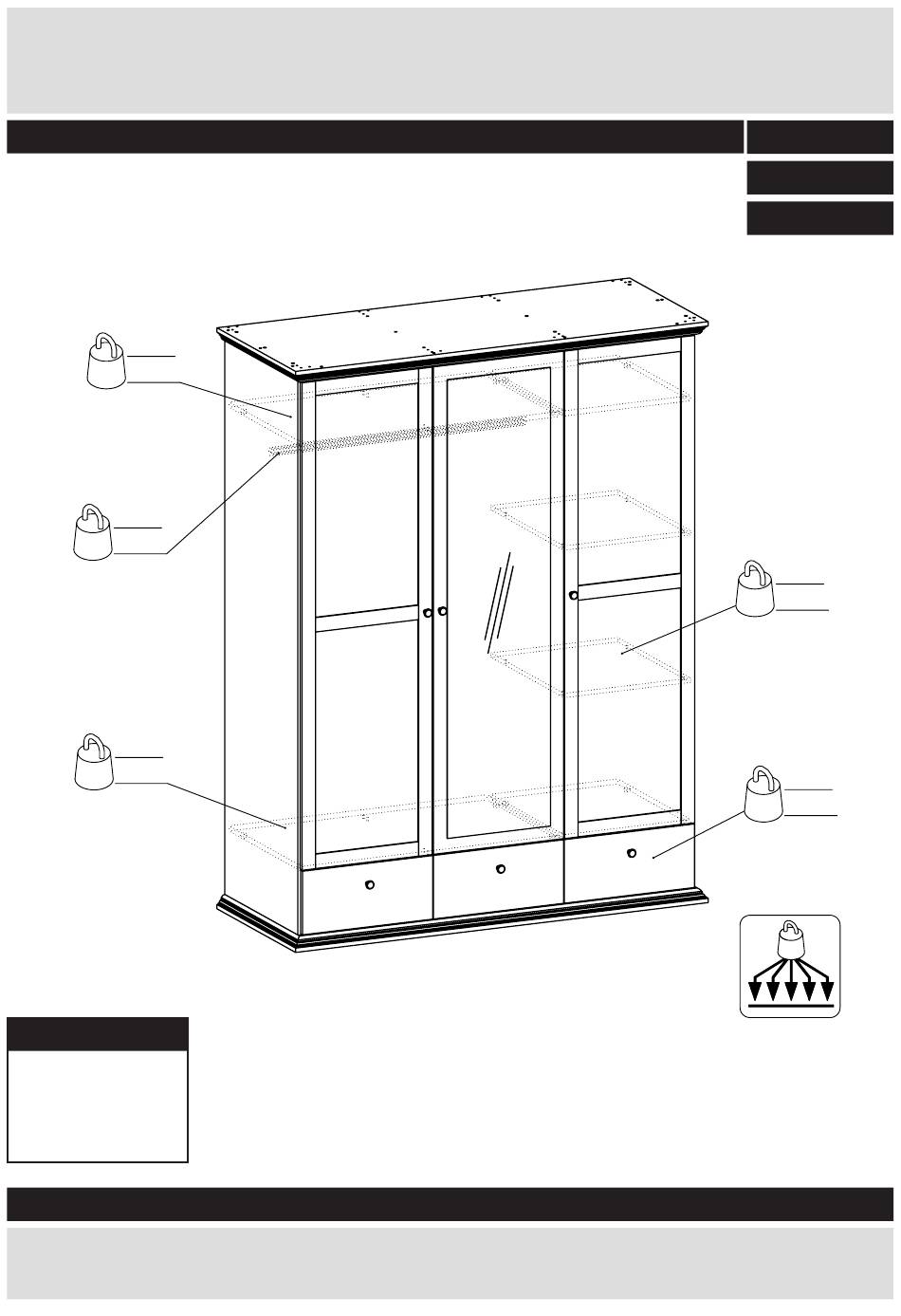

Assembly Instructions
20
kg
44
lbs
20
kg
44
lbs
25
kg
55
lbs
25
kg
55
lbs
20
kg
44
lbs
20
kg
44
lbs
Dimensions
B01
Width - 152.8cm
Depth - 62.7cm
Height - 202.1cm
71939
B01
Important
– Please read these instructions carefully before starting the assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please save for future reference
803/5431
803/8177
803/9846
30
kg
66
lbs
30
kg
66
lbs
8
kg
18
lbs
8
kg
18
lbs
max.
www.tvilum.com
max.
www.tvilum.com
71939 Version G Date 23/02/2018
71939 -50

Advertisement

loading
Need help?

Need help?

Do you have a question about the Canterbury 3 DR 3 DRW MIR ROBE and is the answer not in the manual?

Questions and answers

Kirk Russell
February 2, 2025

Can I order replacement drawer runners for a Home Canterbury 3 door 3 drawer wardrobe ?

0
1 comments:
Mr. Anderson
May 14, 2025

The drawer runners for the Argos Canterbury 3 DR 3 DRW MIR ROBE are identified as part number 41421 in the provided information. You can look for replacement drawer runners with this part number. If needed, you can also contact the Customer Helpline at 0345 6400800 for assistance with damaged or missing parts.

This answer is automatically generated

0

Related Manuals for Argos Canterbury 3 DR 3 DRW MIR ROBE

Summary of Contents for Argos Canterbury 3 DR 3 DRW MIR ROBE

  • Page 1 Canterbury 3 DR 3 DRW MIR ROBE Assembly Instructions 803/5431 - Please save for future reference 803/8177 803/9846 max. Dimensions 71939 www.tvilum.com max. Width - 152.8cm Depth - 62.7cm Height - 202.1cm 71939 www.tvilum.com Important – Please read these instructions carefully before starting the assembly...

  • Page 2: Care And Maintenance

    Safety and Care Advice Important – Please read these instructions carefully before starting the assembly • Check that you have all the • During assembly, do not stand • We do not components and tools as listed or put weight on the product, as recommend the use on the following pages.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels as listed below (1/2) 06383 Drawer bottom x3 (44.8 x 44.7 cm) 00734 Left drawer side x3 (45.0 x 14 cm)
  • Page 4 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels as listed below (2/2) Bottom / Top panel x2 (152.8 x 62.4 cm) GB Large divider panel FA Side panel x2 (198.8 x 58 cm)

  • Page 5: Tools Required

    Components - Fittings Please check that you have all the fittings as listed below Note: The quantities below are the correct amounts to complete the assembly. In some cases, more fittings may be supplied than required. 11042 10601 11229 11230 Shelf support x8 Holder x2 Bracket x16...
  • Page 6 Assembly Instructions Step 1 Beslag sættes ind i scala 1:2 som udgangspunkt Beslag sættes ind i scala 1:2 som udgangspunkt Beslag sættes ind i scala 1:2 som udgangspunkt Fittings you will need for this step: Insert dowels Dowel #31687 x2 #20203 x16 Insert dowels 20203 into outer holes on the...
  • Page 7 Assembly Instructions Step 3 Fittings you will need for this step: Attach hinge plates Hinge Screw Machine screw #50491 x12 #26071 x24 #26211 x12 Fix each hingplate 50491 with two screw 26071 . # $PRPVIEW:{P # $PRPVI # $PRPVIEW Insert machine screw 26211 in the center of each hinge plate as illus- trated.
  • Page 8 Assembly Instructions Step 4 Fittings you will need for this step: Attach screws Screw #11230 x8 Attach screw 11230 in the holes of the top and bottom hole rows as # $PRPVIEW:{P illustrated.
  • Page 9 Assembly Instructions Step 5 Fittings you will need for this step: Mount drawer runners Flat head screw Flat head screw Drawer runner #25233 x4 #26020 x4 #41421 x2 1. Note the holes when extending drawer runner # $PRPVIEW:{P # $PRPVIE # $PRPV 41421 .
  • Page 10 Assembly Instructions Step 6 Fittings you will need for this step: Attach screws Screw #11230 x8 Attach screw 11230 on both sides of the divider panel GB .
  • Page 11 Assembly Instructions Step 7 Fittings you will need for this step: Mount drawer runners Flat head screw Flat head screw Drawer runner #25233 x8 #26020 x8 #41434 x4 1. Note the holes when extending drawer runner 41421 . The arrow at the end of the drawer runners must face towards the front edges...
  • Page 12 Assembly Instructions Step 8 Fittings you will need for this step: Assemble profiles Wedges #33204 x4 Insert wedges 33204 Bottom into the slots on the an- 76428 76431 gle ends of side profiles 76427 + 76428 and 76428 front profile 76431 . 76431 76428 76431...
  • Page 13 Assembly Instructions Step 10 Fittings you will need for this step: Attach brackets Bracket #11229 x16 Insert brackets 11229 # $PRPVIEW:{Pos_Beslag} into the holes of fixed shelves UB + UC . (x2) (x2) (x2) (x2) (x2) (x2) (x2) (x2) Step 11 Fittings you will need for this step: Insert cam bolts Cam bolt...
  • Page 14 Assembly Instructions Step 12 Fittings you will need for this step: Attach top and Connector bolt Allen key bottom panels #25610 x18 #97642 x1 Attach the top and bottom panel IC by inserting connector bolt 25610 into the holes. Tighten the screws with the allen key 97642 .
  • Page 15 Assembly Instructions Step 13 Unfinish edges Attach divider panel Attach divider panel GA by inserting dowel pins and cam bolts into the holes. Once pushed together, tighten the cams. Step 14 Attach shelves Attach both fixed shelves UB + UC by sliding them down over the previously attached screws, as illustrated.
  • Page 16 Assembly Instructions Step 15 Fittings you will need for this step: Fix divider panel Connector bolt Allen key #25610 x3 #97642 x1 Fix divider panel GA by inserting connector bolt 25610 into the holes of bottom panel IC . Tighten the connector bolts with the provided allen key 97642 .
  • Page 17 Assembly Instructions Step 17 Fittings you will need for this step: Attach back panels Nail Big nail #23006 x3 #23010 x14 Slide back panels 09789 and 09790 as # $PRPV illustrated, so that they meet in the center of # $PRPVIEW:{Pos_Beslag} # $PRPVIEW:{Pos_Beslag} panel GB .
  • Page 18 Assembly Instructions Step 18 Fittings you will need for this step: Attach floor gliders Floor glider #63008 x8 Place floor gliders 63008 # $PR in the holes of bottom panel IC . Use a wooden block between your hammer and the floor gliders.
  • Page 19 Assembly Instructions Step 20 Step 20 Fittings you will need for this step: Place the hanger Hanger #72509 x1 Place hanger 72509 in the previously mounted # $P hanger holders as illustrated. # $PR # $PRP 09789 09789 09789 Step 21 Fittings you will need for this step: Insert shelf supports Shelf support...
  • Page 20 Assembly Instructions Assembly Instructions Step 22 Fittings you will need for this step: Attach stops Stop #96203 x4 Attach stop 96203 on one shelf UB and divider panel GB as illustrated. 09789 09789 09789 09789 Step 23 Fittings you will need for this step: Attach hinges Hinge Step 23...
  • Page 21 Assembly Instructions Step 24 Mount the doors Please see hinge guide on the last page of this assembly instruction, which shows you how to adjust the doors according to your needs. The guide includes illustrated steps on how to make the doors go up and down, side to side, and forward and backwards.
  • Page 22 Assembly Instructions Step 26 Mount the last door Please see hinge guide on the last page of this assembly instruction, which shows you how to adjust the doors according to your needs. The guide includes illustrated steps on how to make the doors go up and down, side to side, and forward and backwards.
  • Page 23 Assembly Instructions Step 28 Fittings you will need for this step: Assemble drawers Dowel Cam bolt #20203 x12 #31513 x6 #31687 x6 Attach cam 31687 into the holes in left and right drawer panel 00733 + 00734 with the arrows facing the edges of the panels.
  • Page 24 Assembly Instructions Step 30 Assemble drawers # $PRPV Press the bottom drawer panel 06383 smoothly into the grooves as illustrated. Make sure that the finished side of bottom drawer panel 06383 is facing upwards. 06383 06383 Step 31 Attach front drawer panel Attach front drawer panel EF by placing dowels...
  • Page 25 Assembly Instructions Step 32 Fittings you will need for this step: Attach handles Machine screw Handle #26232 x3 #81040 x3 Attach handle 81040 to the front of the drawer EF . Use machine # $PRPVIEW:{Pos # $PRPVIEW:{P screw 26232 to attach the handles to the front drawer panels.
  • Page 26 Assembly Instructions Step 33 Fittings you will need for this step: Attach stops Stop #96203 x2 Insert stop 96203 on fixed shelf UB . 18731 18182 Pull out drawer runners Pull out all of the drawer runners before proceeding to the next assembly step.
  • Page 27 26214 as illustrated in both sides of the drawers. The drawers have now been properly installed. The assembly has now been completed. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
