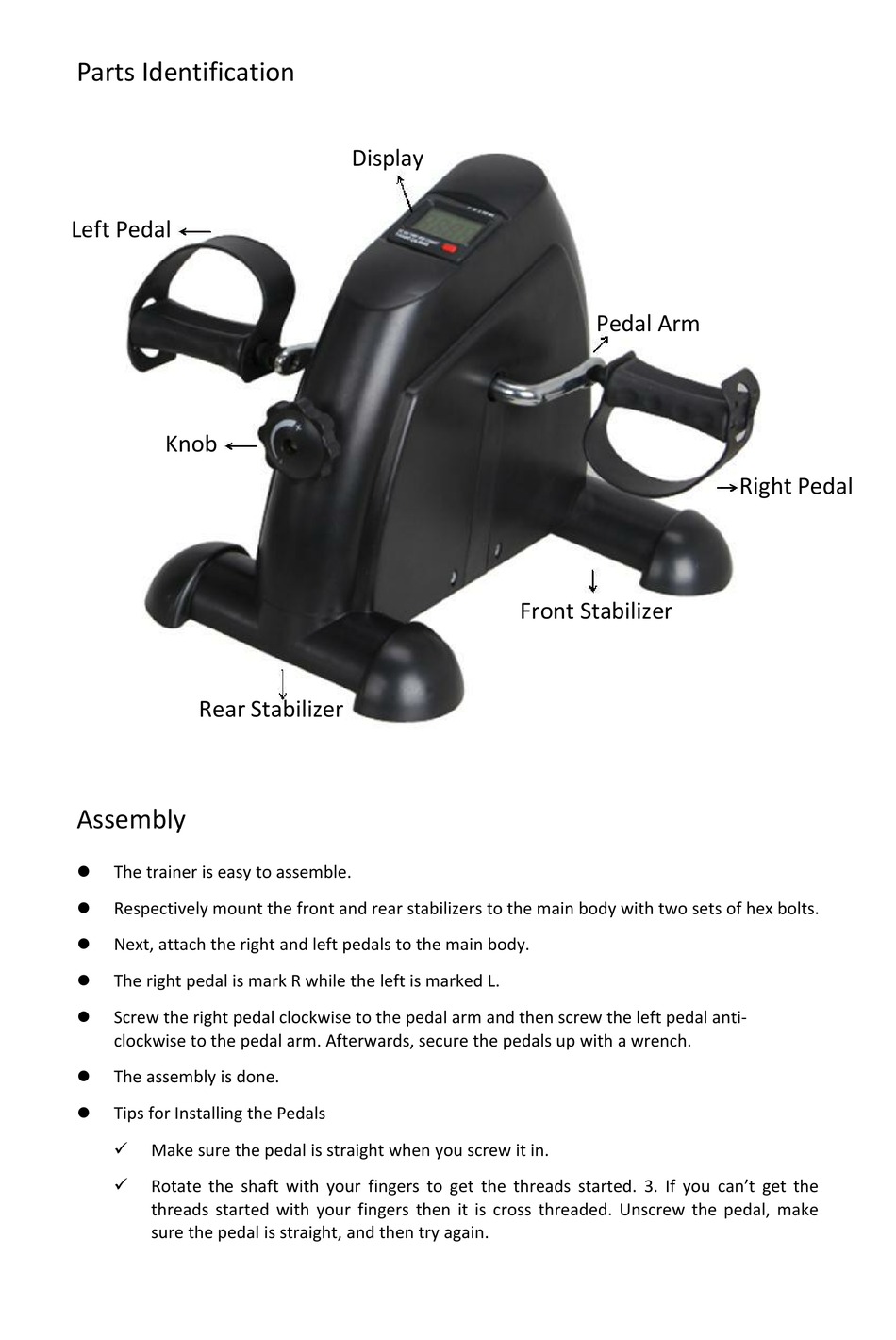

Parts Identification

Left Pedal
Knob
Rear Stabilizer

Assembly

The trainer is easy to assemble.

Respectively mount the front and rear stabilizers to the main body with two sets of hex bolts.

Next, attach the right and left pedals to the main body.

The right pedal is mark R while the left is marked L.

Screw the right pedal clockwise to the pedal arm and then screw the left pedal anti-

clockwise to the pedal arm. Afterwards, secure the pedals up with a wrench.
The assembly is done.


Tips for Installing the Pedals


Make sure the pedal is straight when you screw it in.

Rotate the shaft with your fingers to get the threads started. 3. If you can't get the

threads started with your fingers then it is cross threaded. Unscrew the pedal, make
sure the pedal is straight, and then try again.
Display
Pedal Arm
Front Stabilizer
Right Pedal
