Specifications - Polycom SoundPoint 3726-17369-001 Specifications

Polycom SoundPoint IP
®
Display
• 160 x 320 pixel grayscale graphical LCD with
backlight
Feature Keys
• 14 multifunctional line keys automatically
configurable as a line registration, call
appearance, speed dial, DSS, or BLF key
• Dual-color (red or green) illuminated LEDs for
line status information
Protocol Support
2
• IETF SIP (see the SoundPoint IP 650 data sheet
for details)
Compatible SoundPoint IP Model
• SoundPoint IP 650
Connection with the Host Phone
• IrDA Protocol
- Compliant to Serial Infrared Physical Layer Link
SIR data rate (115.2kbits/s)
- Activated upon attachment to host SoundPoint
IP phone
Power
• The SoundPoint IP Backlit Expansion Module is
powered by the host phone
- Host phone powering options: IEEE 802.3af
PoE or through an external AC adapter
(48V DC)
• Powering starts automatically upon connection
• If powering more than one SoundPoint IP Color
Expansion Module, an external AC adapter
is required
Expandability
• Up to three SoundPoint IP Backlit Expansion
Modules can be attached to the host SoundPoint
IP 650 phone to provide a high-performance
attendant console with 48 multifunctional line
keys and four high-resolution LCD displays
©2009 Polycom, Inc. All rights reserved.
Polycom and the Polycom logo design are registered trademarks of Polycom, Inc. in the U.S. and various countries.
All other trademarks are the property of their respective owners. Information in this document is subject to change without notice.
Polycom Headquarters
4750 Willow Road
www.polycom.com Pleasanton, CA 94588
1.800.POLYCOM or
+1.925.924.6000

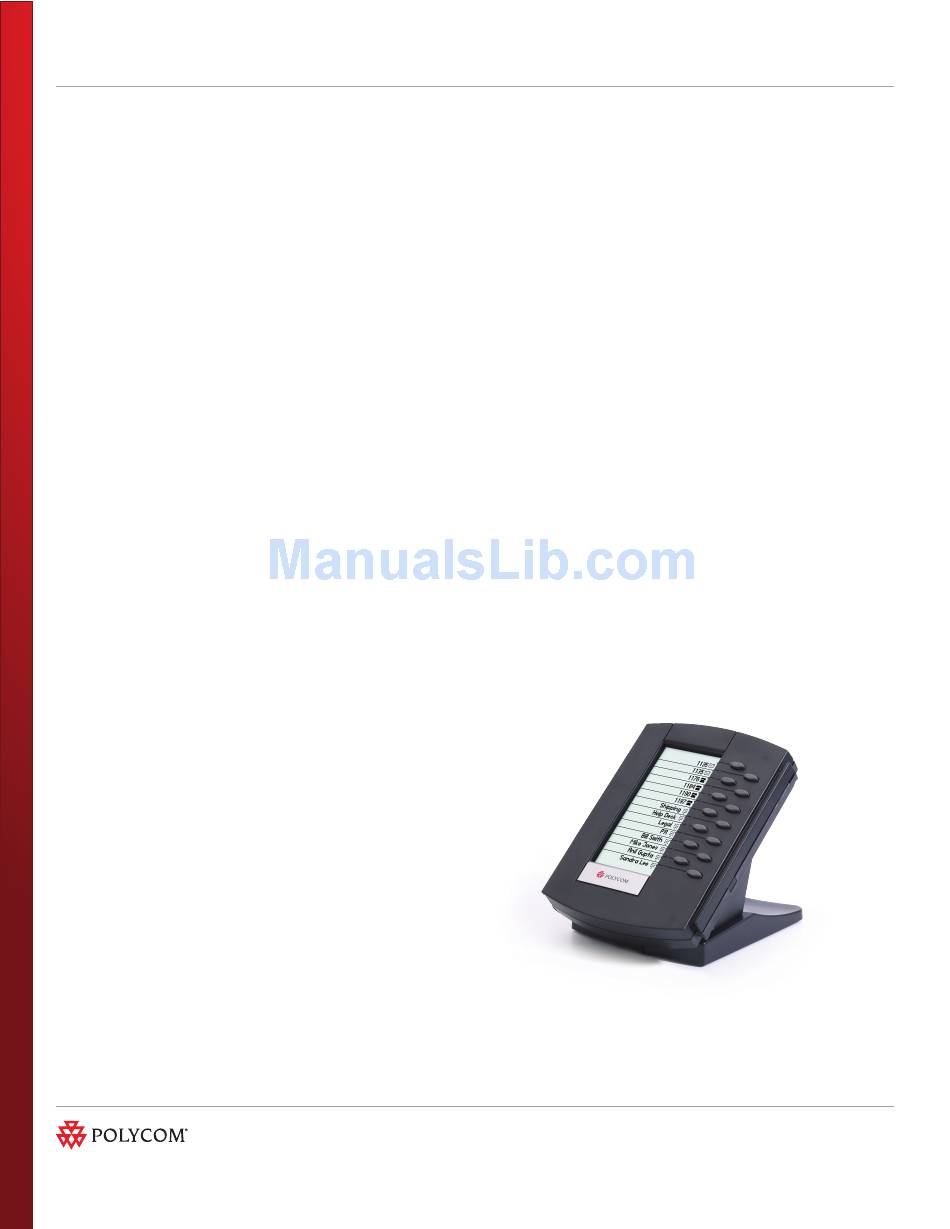

Backlit Expansion Module
®
Feature Support
• Local feature-rich GUI with animation
• Shared call appearance, bridged line appearance
(Key System emulation)
• Multiple call appearances
• Flexible line appearance (requires SIP 3.0.2
RevB or higher)
1
• Multilingual user interface (driven from the
host SoundPoint IP 650 phone) encompassing
Chinese, Danish, Dutch, English (Canada/
US/UK), French, German, Italian, Japanese,
Korean, Norwegian, Polish, Portuguese, Russian,
Slovenian, Spanish, Swedish
Approvals
• EMI/EMC Approvals under the host SoundPoint
IP 650 phone
Safety
• UL 1950
• CE Mark
• CSA C22.2 No.950
• EN60950.1
Operating Temperature
• +10 to +40 degrees C
(+50 to +104 degrees F)
Relative Humidity
• 20% to 85%, non-condensing
Storage Temperature
• -40 to +70 degrees C (-40 to +160 degrees F)
SoundPoint IP Color Expansion Module
Comes with:
• SoundPoint IP Backlit Expansion Module
console
• SoundPoint IP Backlit Expansion Module base
stand
• Quick Start Guide
• Product registration card
Polycom EMEA
270 Bath Road
Slough
Berkshire SL1 4DX
+44 (0)1753 723000

Specifications

Size
• 5 in x 5 in x 6.5 in x 2.5 in
(12.5 cm x 12.5 cm x 16 cm x 6 cm)
(W x H x D x T)
Weight
• Shipping: 1.30 lb (0.6kg)
Part Number/UPC Code
• 2200-12770-025/610807683797
Unit Box Dimensions
• 11 in x 6.5 in x 3.5 in
Master Carton Quantity
• Ten
Country of Origin
• Thailand
Warranty
• One year
1. The Busy Lamp Field (BLF) feature is subject to future
implementation
2. The SoundPoint IP 650 phone and Backlit Expansion
Module both require SIP 3.0.2 RevB or higher and
BootROM 4.1.0 or higher
Polycom Asia Pacific
8 Shenton Way
#11-01 Temasek Tower
Singapore 068811
+65.6389.9200
Part No. 3726-17369-001 Rev 01/09
