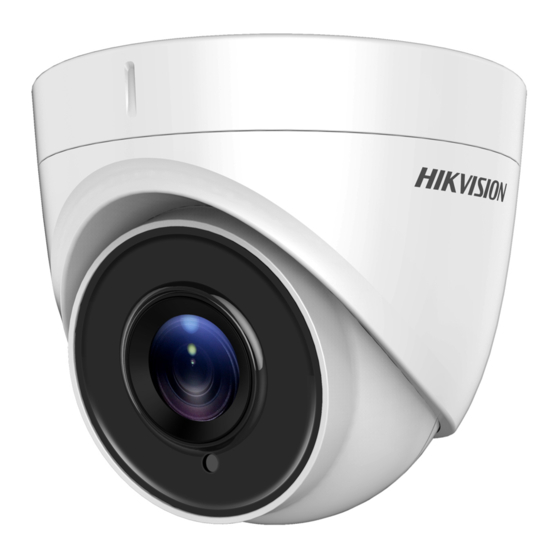

TURBO HD
4K Series Turret & Dome
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model
Type II Camera
DS-2CE78U8T-IT3
Type III Camera
DS-2CE57U8T-VPIT
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001071023
Available from A1 Security Cameras
w.a1securitycameras.com email: sales@a1securitycamera
Advertisement
Table of Contents
Related Manuals for HIKVISION TURBO HD 4K Series
Summary of Contents for HIKVISION TURBO HD 4K Series
- Page 1 TURBO HD 4K Series Turret & Dome Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model Type II Camera DS-2CE78U8T-IT3...
- Page 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 4: Product Features
Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features... -
Page 5: Installation
2 Installation Before you start: Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the ... - Page 6 4. Secure the mounting base to the ceiling with the supplied screws. Expansion Bolts Fixing Screw Figure 2-3 Fix the Mounting Base to the Ceiling Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement wall/ceiling, expansion bolts are ...
-
Page 7: Adjusting Screw
Screw Hole Cable Hole Drill Template Hole A: for cables routed through the ceiling screw hole 1: for Mounting Base Figure 2-6 Drill Template Note: Cable hole is required, when adopting the ceiling outlet to route cables. 3. Loosen the set screws with a hex wrench (supplied) to remove the bubble. -
Page 8: Menu Description
1). Loosen the tilt adjusting screw to adjust the tilt position [0° to 75°]. 2). Hold the black liner to adjust the pan position [0° to 355°]. 3). Hold the camera body to adjust the rotation position [0° to 355°]. Reinstall the bubble, and tighten the screws. -
Page 9: Video Format
5. Click the direction arrow to control the camera. 1) Click up/down direction button to select the item. 2) Click Iris + to confirm the selection. 3) Click left/right direction button to adjust the value of the selected item. 3.1 Video Format You can set frame rate as 8 MP@12.5fps, 8 MP@15fps, 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080p@25fps, or 1080p@30fps. - Page 10 AGC (Automatic Gain Control) It optimizes the clarity of the image in poor light conditions. The AGC level can be set as High, Medium, or Low. Select Off to disable the AGC function. Note: The noise will be amplified when the AGC is on. Slow Shutter Slow Shutter increases the exposure time on a single frame, which makes a camera more sensitive to light.
- Page 11 Day Night <On> IR Light <Off> Smart IR <4> D à N Threshold <4> N à D Threshold Back Save & Exit Figure 3-5 Day Night IR Light You can turn on/off the IR Light to meet the requirements of different circumstances. ...
- Page 12 conditions, and deliver more accurate and sharp image quality. You can set the 3D DNR value from 1 to 10. Mirror Off, H, V, and HV are selectable for mirror. Off: The mirror function is disabled. H: The image flips 180° horizontally. V: The image flips 180°...
