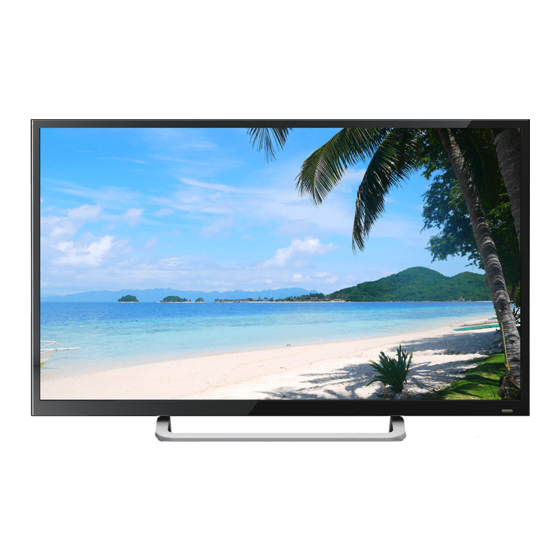

- Page 1 Manual for the DHL32 (F600 series) LCD monitor DHL32 (F600 series) Manual for the LCD monitor 2016 V1.0 Zhejiang Dahua Technology Co., Ltd.
- Page 2 Manual for the DHL32 (F600 series) LCD monitor 1. Service environment requirements The equipment is designed for indoor use, therefore, it cannot be used in wet or dusty environment. It is not allowed to block the ventilation hole inside the equipment or hamper air circulation around it.
-
Page 3: Installation Instructions
Manual for the DHL32 (F600 series) LCD monitor 4. Installation instructions 4.1 Installation means 1.Lay the monitor flat on a table with the LED screen face down. To prevent the TV from being scratched, put a piece of soft cloth on the table on which the screen will be set. Place the base in position as shown.Insert and tighten 2 screws(provided)into pedestal holes as shown. -
Page 4: Connect Audio Cable
Manual for the DHL32 (F600 series) LCD monitor 4.3 Signal line connection connect VGA cable Connect the VGA cable from VGA output of computer to the VGA input of the monitor. or connect HDMI cable Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor. - Page 5 Manual for the DHL32 (F600 series) LCD monitor 5.2 Menu description Main menu Sub-menu Description Automatic Image auto Adjust the horizontal and vertical positions, phase (trimming) adjustment adjustment and clock (horizontal width) of the screen. Contrast/Brightness Contrast Adjust the display contrast...
-
Page 6: Common Troubleshooting
Manual for the DHL32 (F600 series) LCD monitor 6. Common troubleshooting If problems are not included in the following symptoms described, please contact the manufacturer for treatment. Symptoms Troubleshooting 1) The power indicator is not lit 1. Turn on the power supply or not 2.
