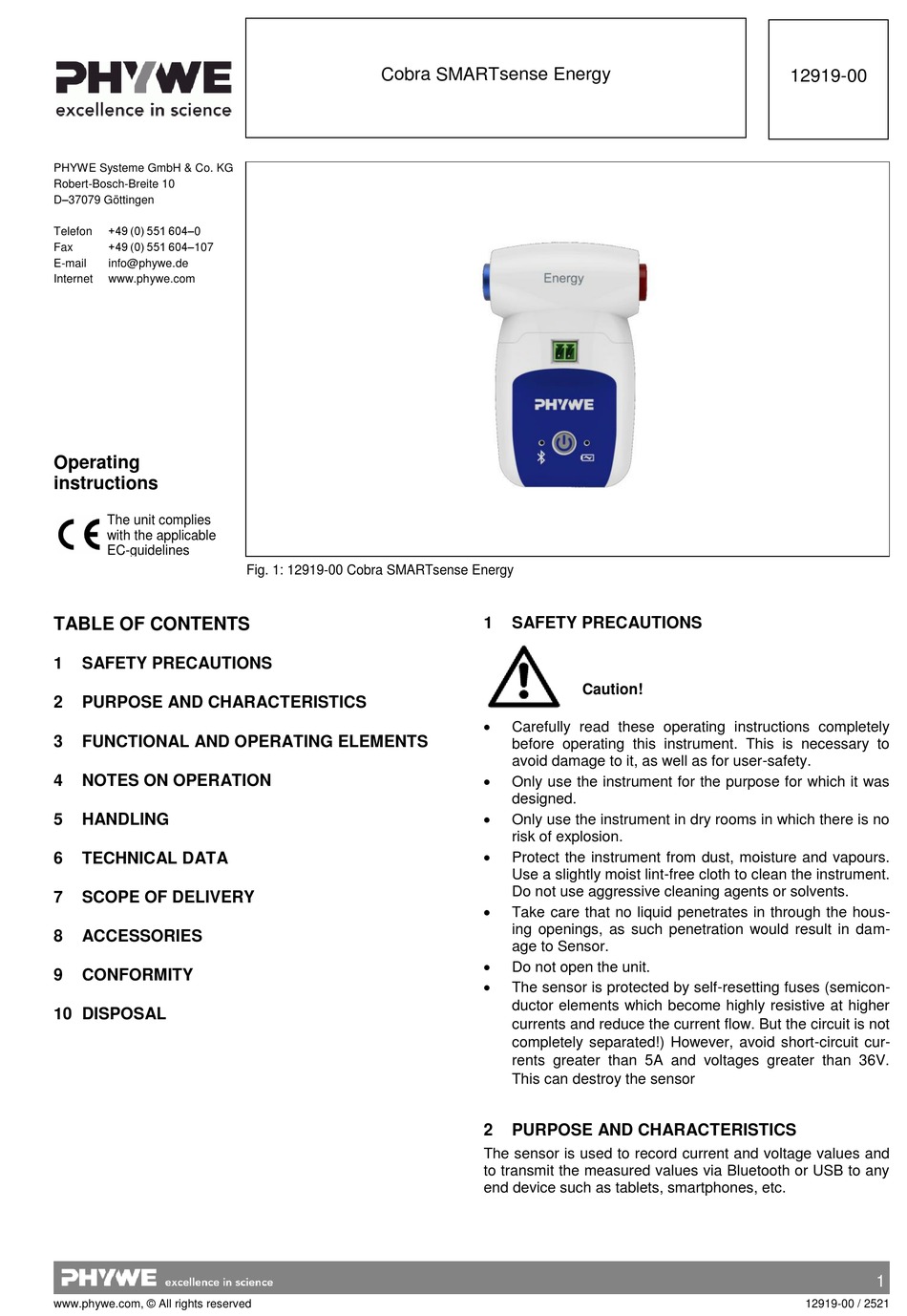

PHYWE Cobra SMARTsense Energy Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.com
Operating
instructions
The unit complies
with the applicable
EC-guidelines
TABLE OF CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
4 NOTES ON OPERATION
5 HANDLING
6 TECHNICAL DATA
7 SCOPE OF DELIVERY
8 ACCESSORIES
9 CONFORMITY
10 DISPOSAL
www.phywe.com, © All rights reserved
Cobra SMARTsense Energy

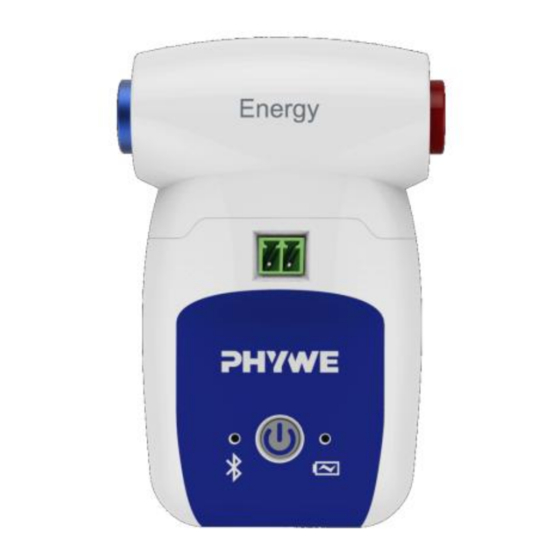

Fig. 1: 12919-00 Cobra SMARTsense Energy
1 SAFETY PRECAUTIONS
Caution!

Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.

Only use the instrument for the purpose for which it was
designed.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Protect the instrument from dust, moisture and vapours.
Use a slightly moist lint-free cloth to clean the instrument.
Do not use aggressive cleaning agents or solvents.

Take care that no liquid penetrates in through the hous-
ing openings, as such penetration would result in dam-
age to Sensor.

Do not open the unit.

The sensor is protected by self-resetting fuses (semicon-
ductor elements which become highly resistive at higher
currents and reduce the current flow. But the circuit is not
completely separated!) However, avoid short-circuit cur-
rents greater than 5A and voltages greater than 36V.
This can destroy the sensor
2 PURPOSE AND CHARACTERISTICS
The sensor is used to record current and voltage values and
to transmit the measured values via Bluetooth or USB to any
end device such as tablets, smartphones, etc.
12919-00
1
12919-00 / 2521
