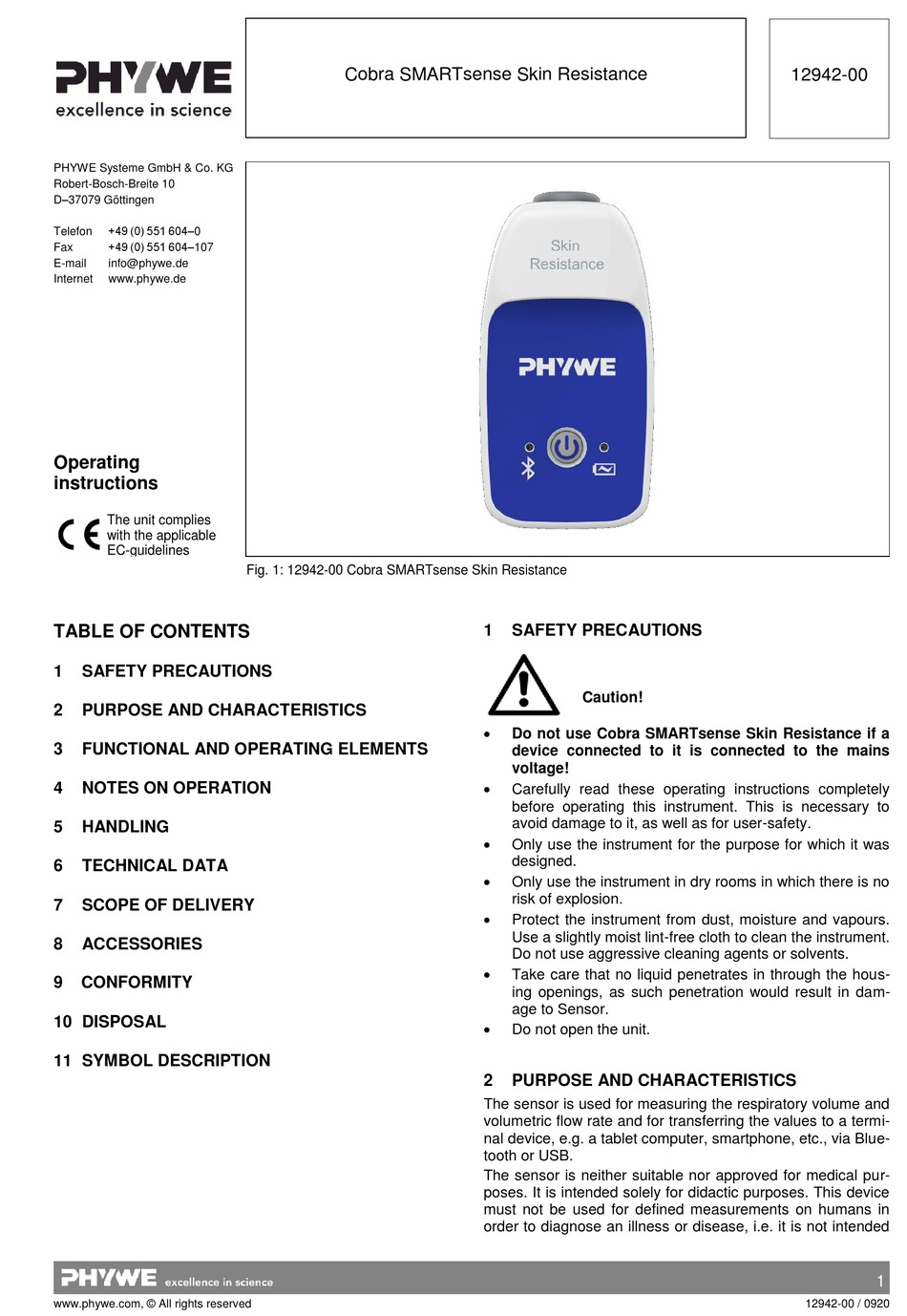

PHYWE Cobra SMARTsense Skin Resistance Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.de
Operating
instructions
The unit complies
with the applicable
EC-guidelines
TABLE OF CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
4 NOTES ON OPERATION
5 HANDLING
6 TECHNICAL DATA
7 SCOPE OF DELIVERY
8 ACCESSORIES
9 CONFORMITY
10 DISPOSAL
11 SYMBOL DESCRIPTION
www.phywe.com, © All rights reserved
Cobra SMARTsense Skin Resistance

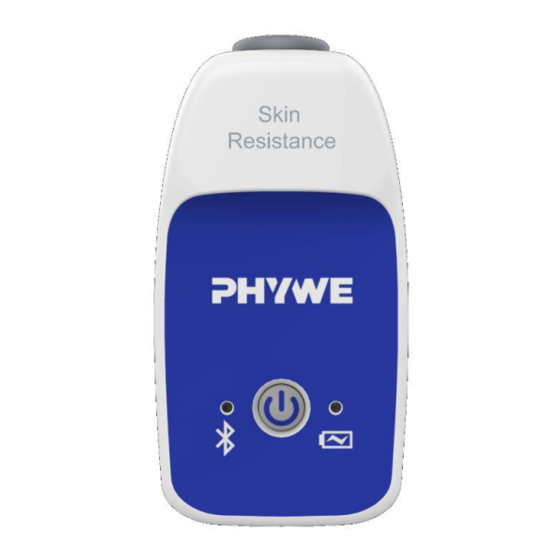

Fig. 1: 12942-00 Cobra SMARTsense Skin Resistance
1 SAFETY PRECAUTIONS
Caution!

Do not use Cobra SMARTsense Skin Resistance if a
device connected to it is connected to the mains
voltage!

Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.

Only use the instrument for the purpose for which it was
designed.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Protect the instrument from dust, moisture and vapours.
Use a slightly moist lint-free cloth to clean the instrument.
Do not use aggressive cleaning agents or solvents.

Take care that no liquid penetrates in through the hous-
ing openings, as such penetration would result in dam-
age to Sensor.

Do not open the unit.
2 PURPOSE AND CHARACTERISTICS
The sensor is used for measuring the respiratory volume and
volumetric flow rate and for transferring the values to a termi-
nal device, e.g. a tablet computer, smartphone, etc., via Blue-
tooth or USB.
The sensor is neither suitable nor approved for medical pur-
poses. It is intended solely for didactic purposes. This device
must not be used for defined measurements on humans in
order to diagnose an illness or disease, i.e. it is not intended
12942-00
1
12942-00 / 0920
