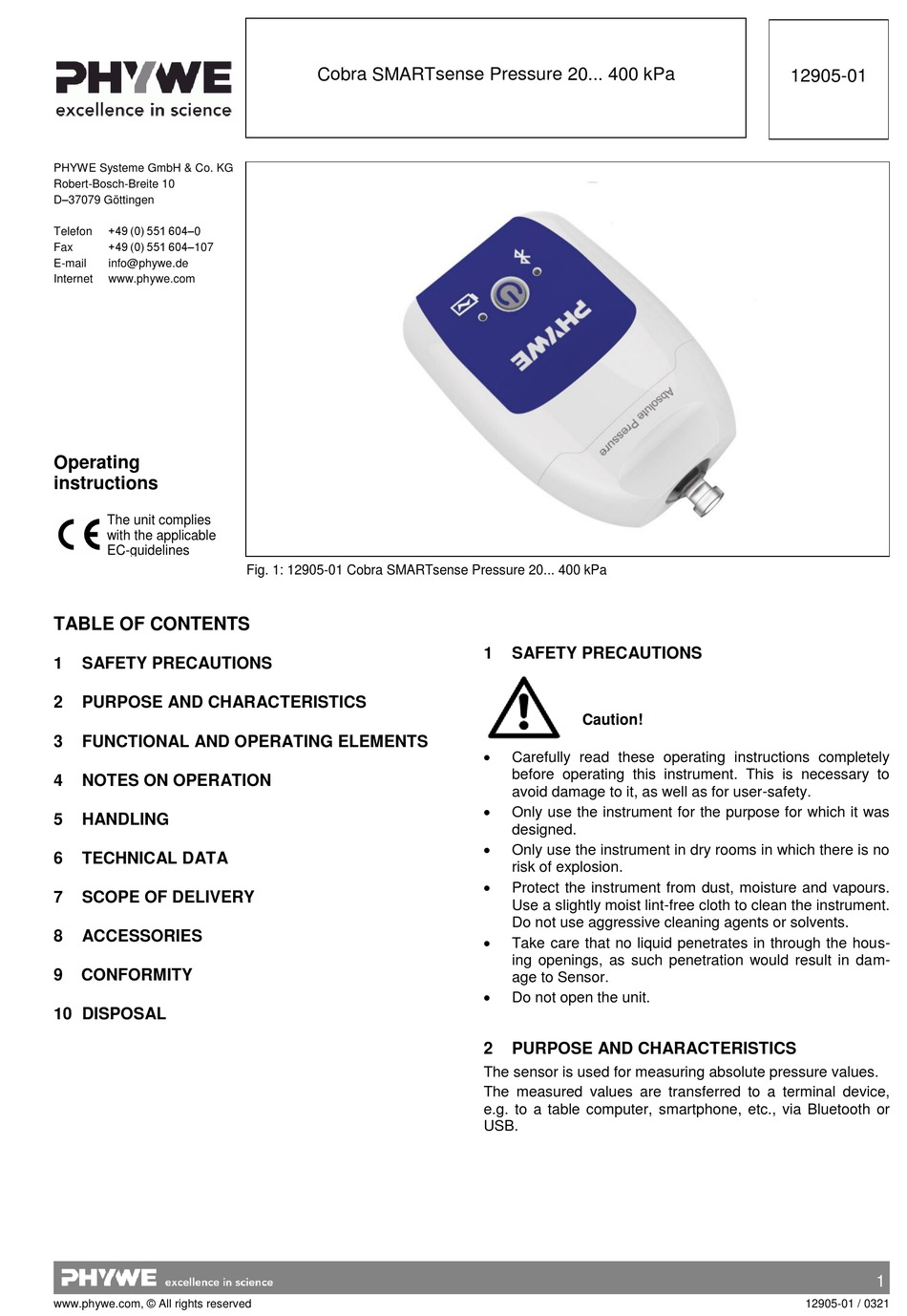

PHYWE Cobra SMARTsense Pressure Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.com
Operating
instructions
The unit complies
with the applicable
EC-guidelines
TABLE OF CONTENTS
1

SAFETY PRECAUTIONS

2

PURPOSE AND CHARACTERISTICS

3 Functional And Operating Elements
4 Notes On Operation
5 Handling
6 Technical Data
7 Scope Of Delivery
8 Accessories
9 Conformity
10 DISPOSAL
www.phywe.com, © All rights reserved
Cobra SMARTsense Pressure 20... 400 kPa

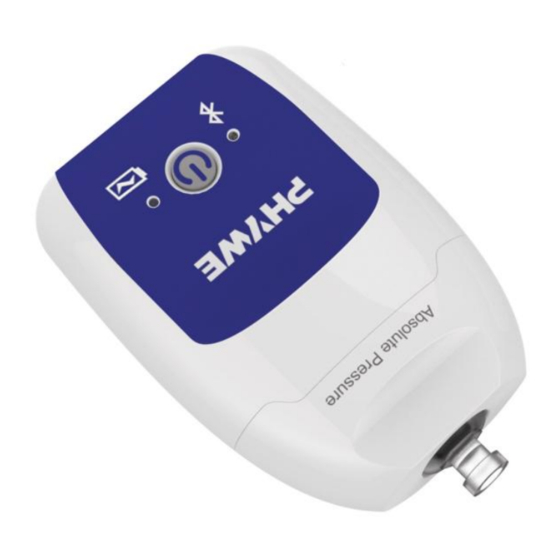

Fig. 1: 12905-01 Cobra SMARTsense Pressure 20... 400 kPa
1 SAFETY PRECAUTIONS
Caution!

Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.

Only use the instrument for the purpose for which it was
designed.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Protect the instrument from dust, moisture and vapours.
Use a slightly moist lint-free cloth to clean the instrument.
Do not use aggressive cleaning agents or solvents.

Take care that no liquid penetrates in through the hous-
ing openings, as such penetration would result in dam-
age to Sensor.

Do not open the unit.
2 PURPOSE AND CHARACTERISTICS
The sensor is used for measuring absolute pressure values.
The measured values are transferred to a terminal device,
e.g. to a table computer, smartphone, etc., via Bluetooth or
USB.
12905-01
1
12905-01 / 0321
