PHYWE Cobra SMARTsense Rotary Motion Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.de
Operating
instructions
The unit complies
with the applicable
EC-guidelines
TABLE OF CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
4 NOTES ON OPERATION
5 HANDLING
6 TECHNICAL DATA
7 SCOPE OF DELIVERY
8 ACCESSORIES
9 CONFORMITY
10 DISPOSAL
www.phywe.com, © All rights reserved
Cobra SMARTsense Rotary Motion

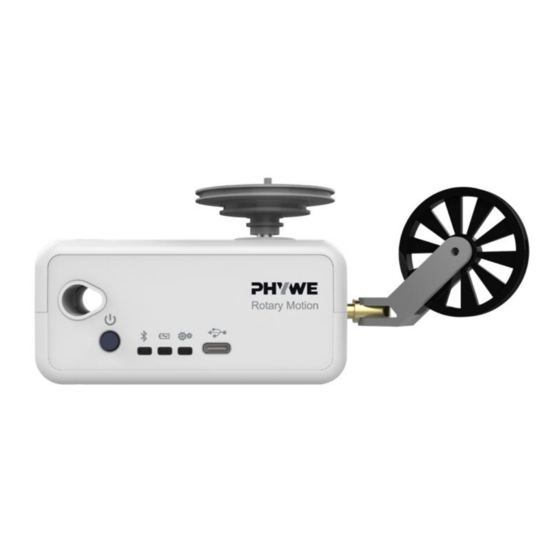

Fig. 1: 12918-00 Cobra SMARTsense Rotary Motion
1 SAFETY PRECAUTIONS
Caution!

Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.

Only use the instrument for the purpose for which it was
designed.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Protect the instrument from dust, moisture and vapours.
Use a slightly moist lint-free cloth to clean the instrument.
Do not use aggressive cleaning agents or solvents.

Take care that no liquid penetrates in through the hous-
ing openings, as such penetration would result in dam-
age to Sensor.

Do not open the unit.
2 PURPOSE AND CHARACTERISTICS
The sensor is used to determine the angle of rotation, rota-
tional speed and angular acceleration as well as to transmit
the measured values via Bluetooth or USB to any end devic-
es such as tablets, smartphones etc.
