Travis Industries Fyre 430 Cheat Sheet

The 430 Mod-Fyre has several new features and characteristics that require special attention during installation and set-up.
Refer to the owner's manual for full details.

Upper Accent Light

The light shield (shipped with the face) is no longer needed and may be discarded.

Under Lighting

This heater has been updated to include under lighting. After detailing the insert, make sure to adjust the built in rheostat to
the correct position before installing the face. The remote then controls the under lighting (it will turn on and off with the
system).

Remote Control / Pilot Warnings

Installing batteries in the battery holder or connecting the appliance to power may automatically initiate the CPI
pilot mode, resulting in a lit pilot flame. Do not place combustibles in the firebox.

If using LP (Propane)

A conversion kit is required if using propane with this heater (sku 94400999 – GSR Stepper Motor Kit).

Additional Items


Shipping Brackets on Side of Insert May be Removed and Discarded
These brackets, and screws, are used to protect the insert. See surround panel instructions for details.

Glass Tool is Attached to the Insert, Inside the Right Convection Chamber
This insert uses a glass tool to remove the glass frame. It is shipped inside the right convection chamber, attached with a
screw. See the photos below for glass frame removal. See manual for details.

Vent Kit "G" (sku 96200331) May Be Used With This Insert
The co-linear 3" and 4" vent kit works with this insert. See manual for details.

Power Cord Exits Behind Surround Panel
The power cord ships attached to the side of the insert. It may be re-routed to the front (exits between face and surround
panel) by disconnecting the strain relief and Molex connector.
Page 1 of 2

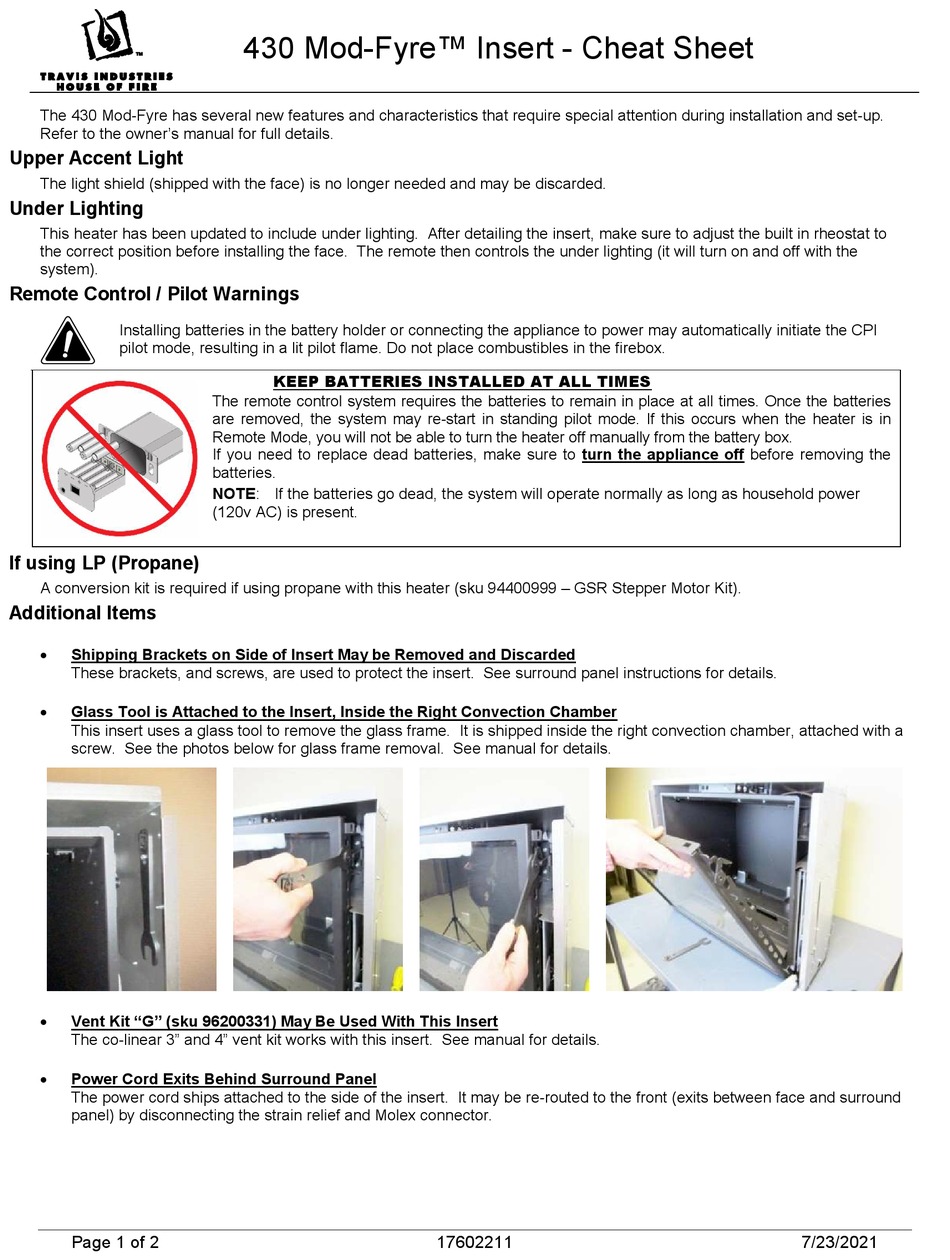

430 Mod-Fyre™ Insert - Cheat Sheet
KEEP BATTERIES INSTALLED AT ALL TIMES
The remote control system requires the batteries to remain in place at all times. Once the batteries
are removed, the system may re-start in standing pilot mode. If this occurs when the heater is in
Remote Mode, you will not be able to turn the heater off manually from the battery box.
If you need to replace dead batteries, make sure to turn the appliance off before removing the
batteries.
NOTE: If the batteries go dead, the system will operate normally as long as household power
(120v AC) is present.
17602211 7/23/2021
