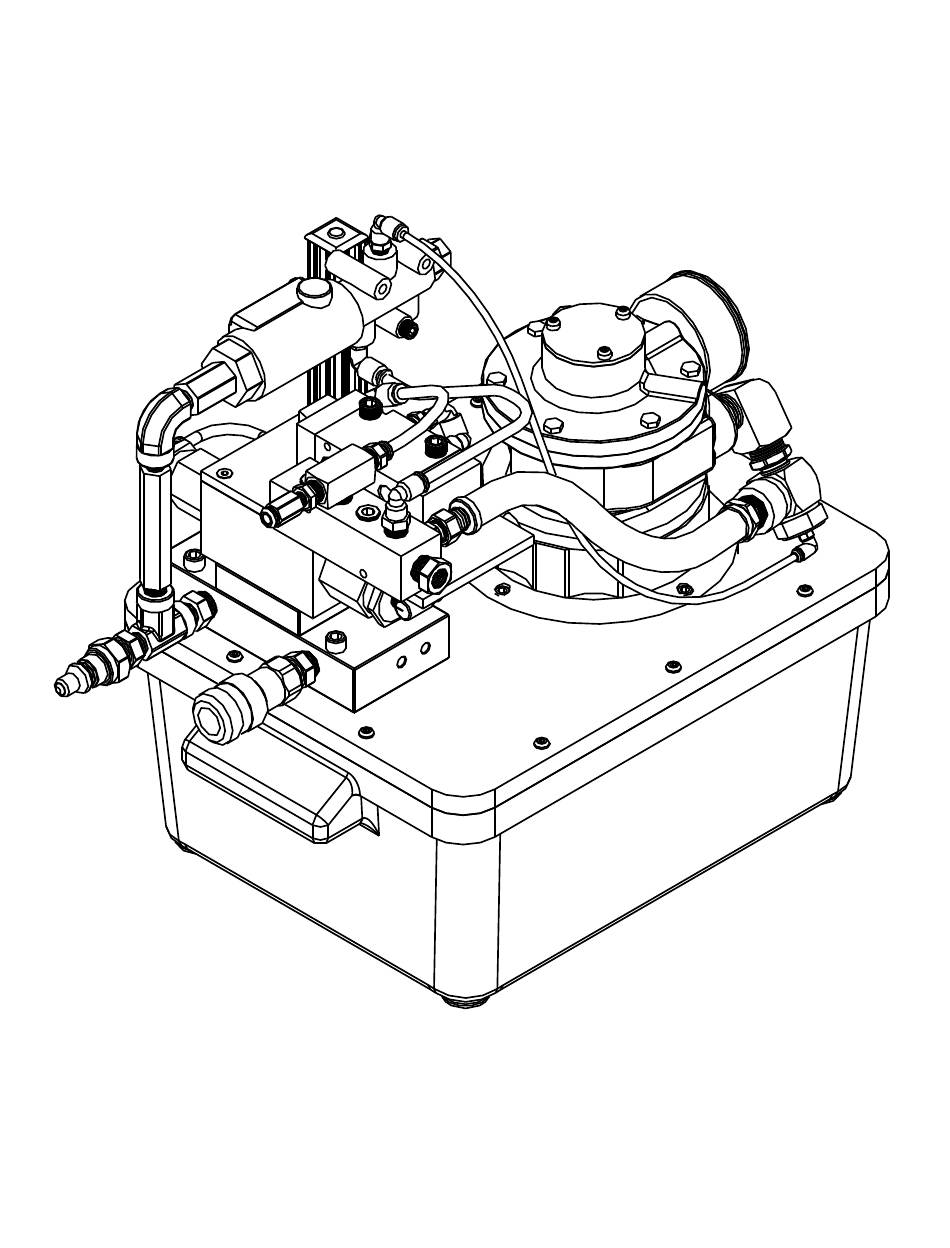

- Page 1 GB910 HYDRAULIC POWERUNIT GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail: solutions@gagebilt.com / www.gagebilt.com...
- Page 2 WARNING: Please read this manual before servicing or using tool. Comply with WARNINGS and CAUTIONS to prevent personal injury or damage to tool. WARNING: When operating installation equip- ment always wear approved eye protection . TABLE 1 NOTE: Shipped with Pull pressure at 10,000 psi (68,950 kPa) & Return pressure at 6,000 psi (41,370 kPa) for GB7624.
- Page 3 DESCRIPTION The GB910 Powerunit is a portable, air operated hydraulic power source designed to operate Gage Bilt hy- draulic installation equipment. It is also compatible with HUCK® hydraulic installation equipment. The GB910 Powerunit operates on 90 - 120 psi., using 62 cfm @ 100 psi.
- Page 4 C. Remove the filler cap and fill with hydraulic oil to within 1/2" from the top of the filler hole. Replace filler breather cap. D. Hydraulic fluid is not shipped with the GB910 Powerunit and is not available from Gage Bilt Inc. Fire- resistant hydraulic fluid must be used to conform with the Occupational Safety and Health Administration (OSHA) regulation 1926.302, paragraph (d) "the fluid used in hydraulic powered tools...
-
Page 5: Operation
NOTE! Unit is shipped without oil. 2. Inspect hoses for damage or wear and if necessary replace. 3. Check the entire GB910 Powerunit for leaks and if necessary repair. 4. Operate Powerunit at 90-120 psi air pressure with a minimum hose ID of 1/2... - Page 6 The GB910 Powerunit should be checked, as required by the installation tool manual, at first time start-up, when troubleshooting and after overhauling directional valve or pump. For assisting in this procedure use Pressure Checking Gauge Set-Up 942280. TO CHECK PULL PRESSURE 1.
-
Page 7: Pressure Setting
PRESSURE SETTING: The Pressure Checking Gauge Set-Up, part number 942280 is used to check the pressure settings for PULL and RETURN pressures. Personnel servicing the GB910 Powerunit should be given access to this gauge set-up. Replacement couplers are available in a set, part number 585037, which includes one body (female) and one nipple (male). -
Page 8: Troubleshooting Chart
TROUBLESHOOTING: Use the Troubleshooting Chart as an aid in locating problems and correcting them. Always check out the simplest possible cause of malfunction first. Eliminate each possible cause until the defective circuit or part is located. Substitute good parts for suspected bad parts. TROUBLESHOOTING CHART: Tool will not reciprocate when motor is running. - Page 9 REV. 10/13...
- Page 10 REV. 10/13...
- Page 11 PULL PRESSURE ADJUSTING SCREW REV. 10/13...
-
Page 12: Dexron® Iii Oil Safety Data
DEXRON® III OIL SAFETY DATA FIRST AID Skin: Wash thoroughly with soap and water as soon as possible. Casual contact requires no immediate attention. If irritation develops, consult a physician. Ingestion: Seek medical attention immediately. DO NOT INDUCE VOMITING. Eyes: Flush with copious amounts of water. If irritation develops, consult a physician. Inhalation: No significant adverse health effects are expected to occur on short term exposure. - Page 13 GB910 Powerunit Kits The GB910 Powerunit is available in various kits to suit your particular need. The kits include the GB910 Powerunit, control cord, hoses, hydraulic couplers and air connector for attaching installation equipment. The GB910-12 Kit includes the GB910 Powerunit and a 12-foot Hose Kit, part number 910701...
