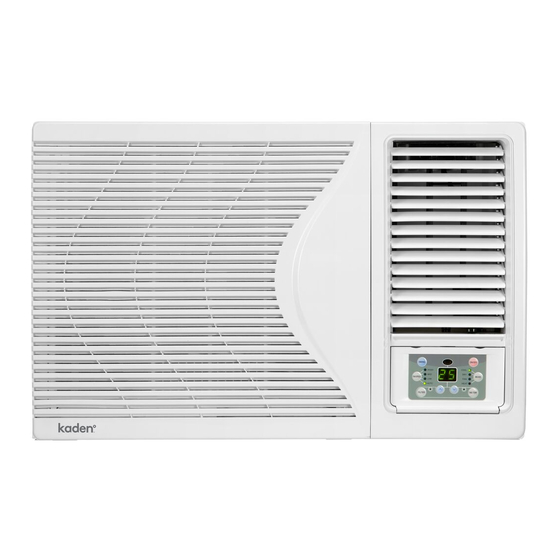

- Page 1 R32 WINDOW AIR CONDITIONER Owner’s Manual KW Series KW09 | KW12 | KW18 | KW21...
- Page 2 2 | Kaden Owner’s Manual...
-
Page 3: Table Of Contents
For continued safety of this appliance, it must be installed and maintained in accordance with the manufacturer’s Instructions. REFRIGERANT Important note Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Kaden Owner’s Manual | 3... -
Page 4: Safety Precautions
Australian Refrigerant Handling License. WARNING Risk of fire / flammable material. If the refrigerant is leaked, together with an external ignition source, there is a possibility of ignition. 4 | Kaden Owner’s Manual... - Page 5 Do not climb onto or place objects on top of the outdoor unit. • Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. Kaden Owner’s Manual | 5...
-
Page 6: Function
In a fixed circuit, there must be an RCD or RCBO with a maximum rated residual current of 30mA installed as per AS/NZS 3000:2018 (Clause 2.6.3.2.2). Working temperature range The operating temperature range (outdoor temperature): • -7°C – 43°C. 6 | Kaden Owner’s Manual... -
Page 7: Unit Specifications And Remote Control Functions
Remote control function buttons 1 On/Off button 2 Mode button 5 Fan button 4 Swing button 6 Sleep button 7 Timer button 8 Health button 9 Wi-Fi button 3 +/- button Kaden Owner’s Manual | 7... - Page 8 Wi-Fi icon will disappear. Under off status, press Mode 4. Swing button and Wi-Fi buttons simultaneously for one second and the Wi-Fi module will restore factory settings. Press this button to turn swing on or off. 8 | Kaden Owner’s Manual...
- Page 9 + polar and – polar are correct. using the remote controller. 3. Reinstall the cover of battery box. • Remove batteries from remote controller when not in use for a long time. Kaden Owner’s Manual | 9...
-
Page 10: Manual Operation (Without Remote)
5. Signal receiver Ensure the signal receiver is not blocked to optimally control your unit from the remote control. 6. MODE button Select the operation mode, AUTO, COOL, DRY, FAN, HEAT (for reverse cycle model). 10 | Kaden Owner’s Manual... -
Page 11: Wi-Fi
Help 4. Click + at the right upper corner of homepage to add device and select AC. Click Help and view the operation instructions of the app. Kaden Owner’s Manual | 11... -
Page 12: Operation Tips And Safety
3. If the power cord is damaged, it must be replaced by the manufacturers or its service agent in void The appliance must be installed, operated and stored in a of hazard. room with a floor area larger than 4m 12 | Kaden Owner’s Manual... -
Page 13: Care And Maintenance
4. If the filter is very dirty, use a mild the unit, in which there are micro- household detergent in the wash computer and circuit plate, they water. Let the air filter dry thoroughly must not be drenched with water. before reinstalling it. Kaden Owner’s Manual | 13... -
Page 14: Warranty Information
In addition to your rights and remedies under the Australian Consumer Law, Reece Limited provides consumers with a Warranty which covers faults in product construction, materials and assembly in the following applicable warranty periods: KW Series Window Air Conditioners Warranty... -
Page 15: Troubleshooting Guide
Accidentally splashed water or something into air After service conditioner. • If your air conditioner has the questions of quality or • Electrical lines are very hot or lines cover breaks. anything else, please contact your supplier. • Other strange situations. Kaden Owner’s Manual | 15... -
Page 16: Installation
Improper installation of the window air conditioner could result in a damaged unit. Please allow a professional technician to install the unit and don’t install it by yourself. Kaden is Over 500mm not responsible for the damage if done by an unlicensed professional. - Page 17 When installing the sunshade board, ensure it does not block the air inlet on the side of the unit. Support Horizontal line Kaden Owner’s Manual | 17...
- Page 18 In the event of removing the air conditioner to another location, during operation. you should contact the seller first. This must be done under the direction of a professional technician. • Please use the safety support. 18 | Kaden Owner’s Manual...
-
Page 19: Installation Notes
- the ventilation machinery and outlets are operating adequately and are not obstructed; - if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Kaden Owner’s Manual | 19... - Page 20 The system shall - fluorescent method agents. be leak-tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site. 20 | Kaden Owner’s Manual...
- Page 21 All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off valves in good working order. Kaden Owner’s Manual | 21...
-
Page 22: Installation Record Form
Also note that all refrigerated air conditioning systems have air filters that require regular inspection and cleaning. Please refer to “Air filter” on page 13. 22 | Kaden Owner’s Manual... - Page 23 Kaden Owner’s Manual | 23...
